Repair
26 309574C

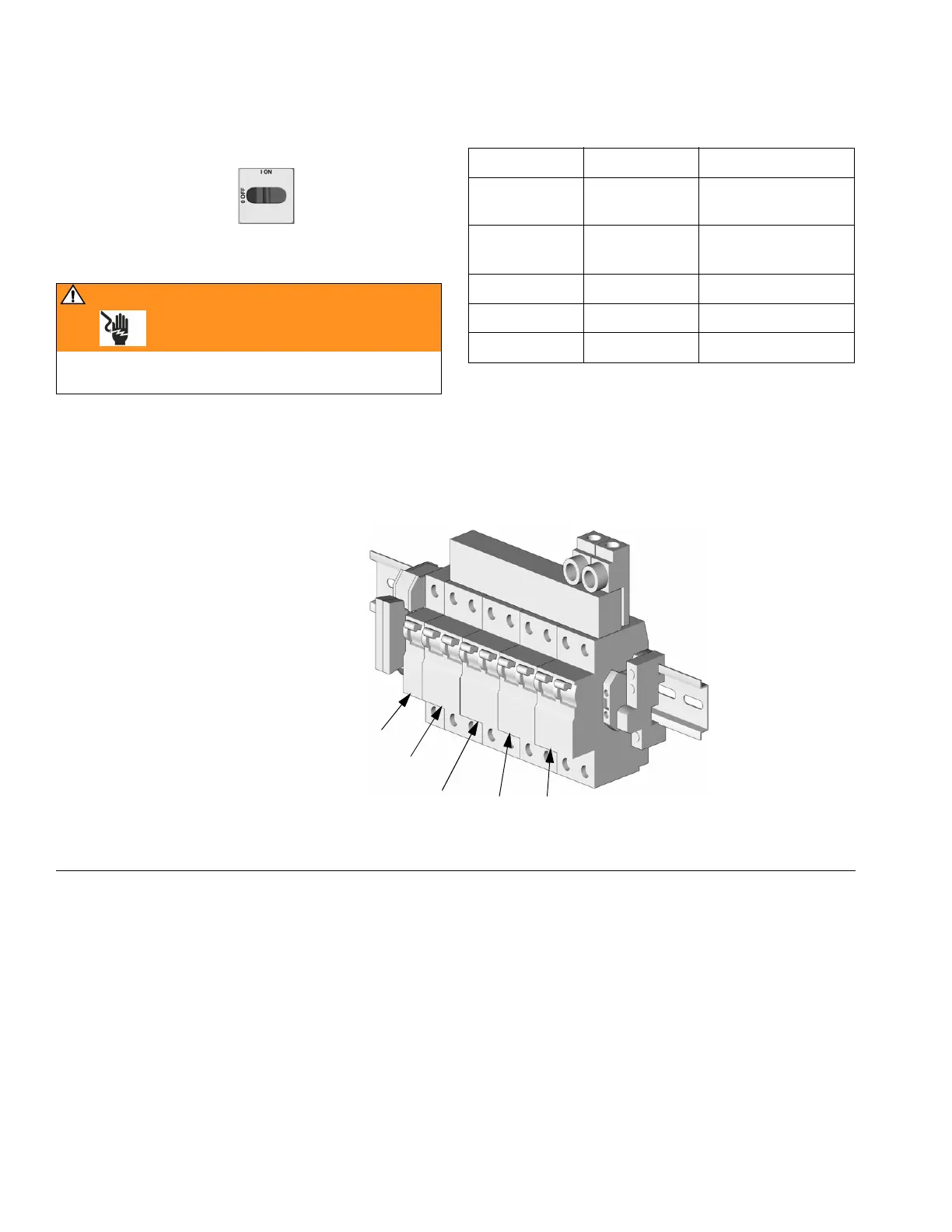

Circuit Breaker Module
2. Relieve pressure, page 8.
3. Refer to electrical diagrams and to following table.
Disconnect wires and remove bad breaker.
4. Install new breaker and reconnect wires.
* Depending on model.
1. Turn main power OFF . Disconnect power
supply.
WARNING
Read warnings, page 5. Wait 5 min for stored voltage
to discharge (E-30 and E-XP2 models only).
Table 1: Circuit Breakers, see F
IG
. 6
Ref. No. Size Component
806 50 A Hose/Transformer
Secondary Side
817A 20 A Transformer
Primary
804A 25 or 40 A* Heater A
804B 25 or 40 A* Heater B
817B 20 A Motor/Pumps
F
IG
. 6. Circuit Breaker Module
TI2514A
804A 817B
806
817A
NOTE:
To reference cables and con-
nectors, see the electrical diagrams and
the parts drawings on pages 57-59.
804B

Graco REACTOR E-30 Specifications

General

Maximum Fluid Temperature	190°F (88°C)
Max Fluid Pressure	3000 psi
Heater Wattage	6000 W
Power Requirements	3-phase, 230V
Type	Electric
Heater Voltage	230V
Fluid Outlet Size	3/8 in
Voltage	230V
Spray Tip Size	0.015 - 0.035 in
