Graco REACTOR E-30 User Manual

Repair
309574C 31
Fan
2. Relieve pressure, page 8.
3. Check fuses (F) at left of breaker module, F
IG
. 9.
Replace if blown. If good, continue with step 4.
4. Refer to electrical diagrams. Disconnect fan wires
from fuses (F). Thread wires through top of cabinet.
5. Remove fan.
6. Install fan in reverse order.
1. Turn main power OFF . Disconnect power
supply.
WARNING
Read warnings, page 5. Wait 5 min for stored voltage
to discharge (E-30 and E-XP2 models only).

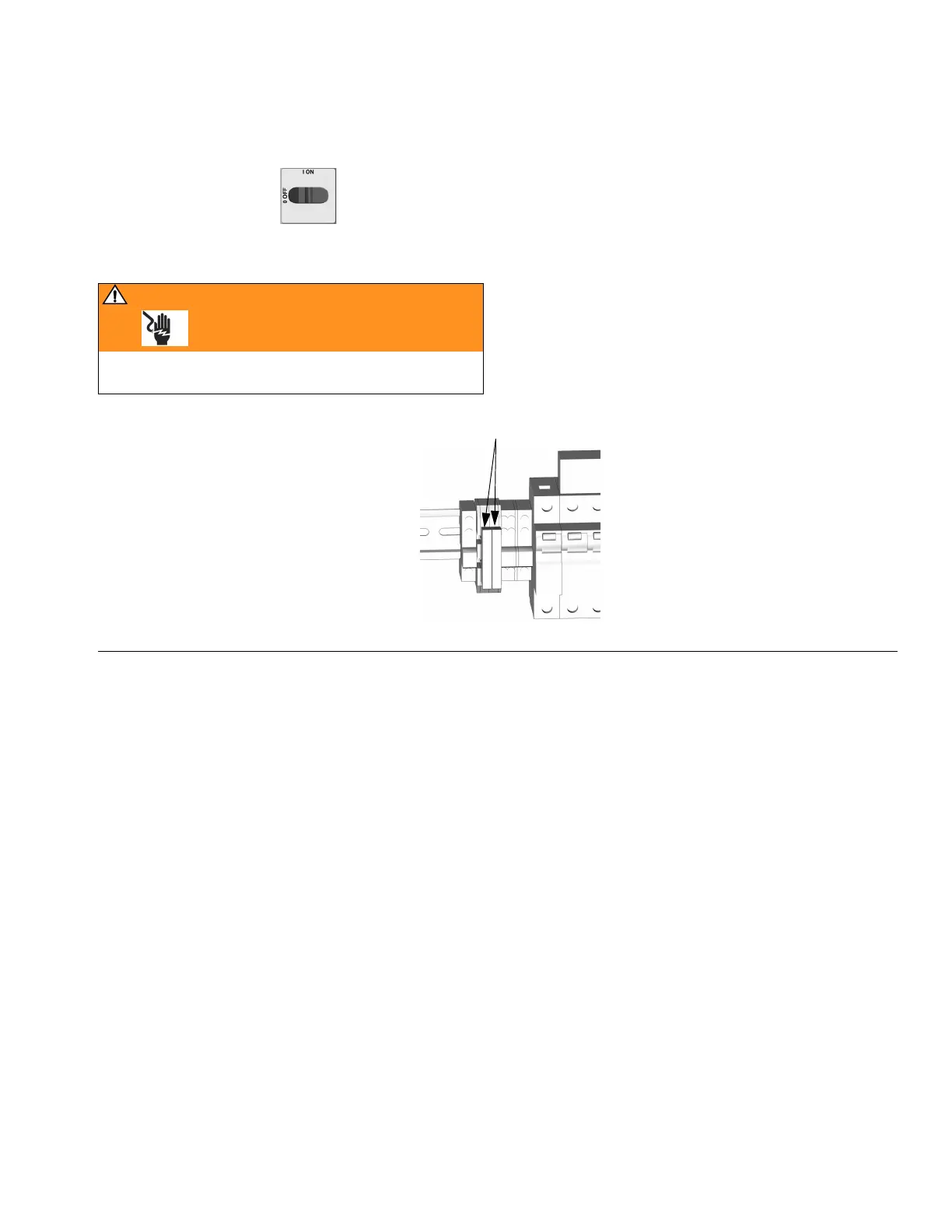

F
IG
. 9. Fan Fuses
F
TI2514A-1

Graco REACTOR E-30 Specifications

General

Maximum Fluid Temperature	190°F (88°C)
Max Fluid Pressure	3000 psi
Heater Wattage	6000 W
Power Requirements	3-phase, 230V
Type	Electric
Heater Voltage	230V
Fluid Outlet Size	3/8 in
Voltage	230V
Spray Tip Size	0.015 - 0.035 in
