Graco REACTOR E-30 User Manual

Repair
309574C 37
Heated Hose
Check Hose Connectors
2. Relieve pressure, page 8.
3. Disconnect hose electrical connector (D) at Reac-
tor, F
IG
. 13.
4. Test with ohmmeter between terminals of hose con-
nector (D). Resistance should
not
be infinity (
∞
).
Infinite resistance indicates an open hose circuit.
5. If hose fails test, retest at each length of hose,
including whip hose, until failure is isolated.
Check FTS Cables
2. Relieve pressure, page 8.
3. Disconnect FTS cable (F) at Reactor, F
IG
. 13.
4. Test with ohmmeter between pins of cable connec-
tor.
5. If cable fails test, retest at FTS, page 38.
Refer to the heated hose manual 309572 for hose
replacement parts.
1. Turn main power OFF . Disconnect power
supply.
Whip hose must be connected.
1. Turn main power OFF . Disconnect power
supply.
Pins Result
1 to 2 approximately 35 ohms per 50 ft (15.2 m) of
hose, plus approximately 10 ohms for FTS
1 to 3 infinity (
∞
)
F
IG

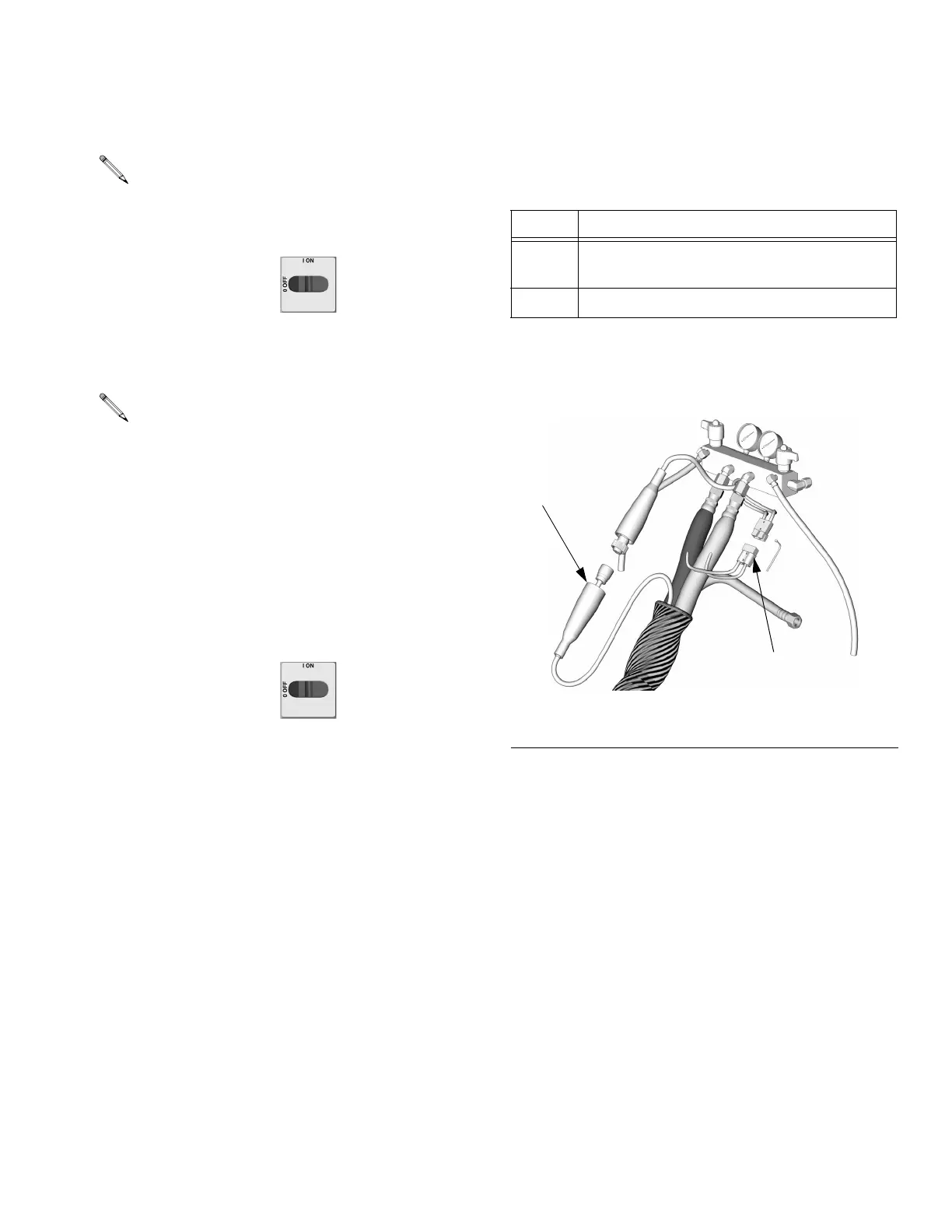

. 13. Heated Hose
TI2726a
F
D

Graco REACTOR E-30 Specifications

General

Maximum Fluid Temperature	190°F (88°C)
Max Fluid Pressure	3000 psi
Heater Wattage	6000 W
Power Requirements	3-phase, 230V
Type	Electric
Heater Voltage	230V
Fluid Outlet Size	3/8 in
Voltage	230V
Spray Tip Size	0.015 - 0.035 in
