Graco REACTOR E-30 User Manual

Parts
54 309574C

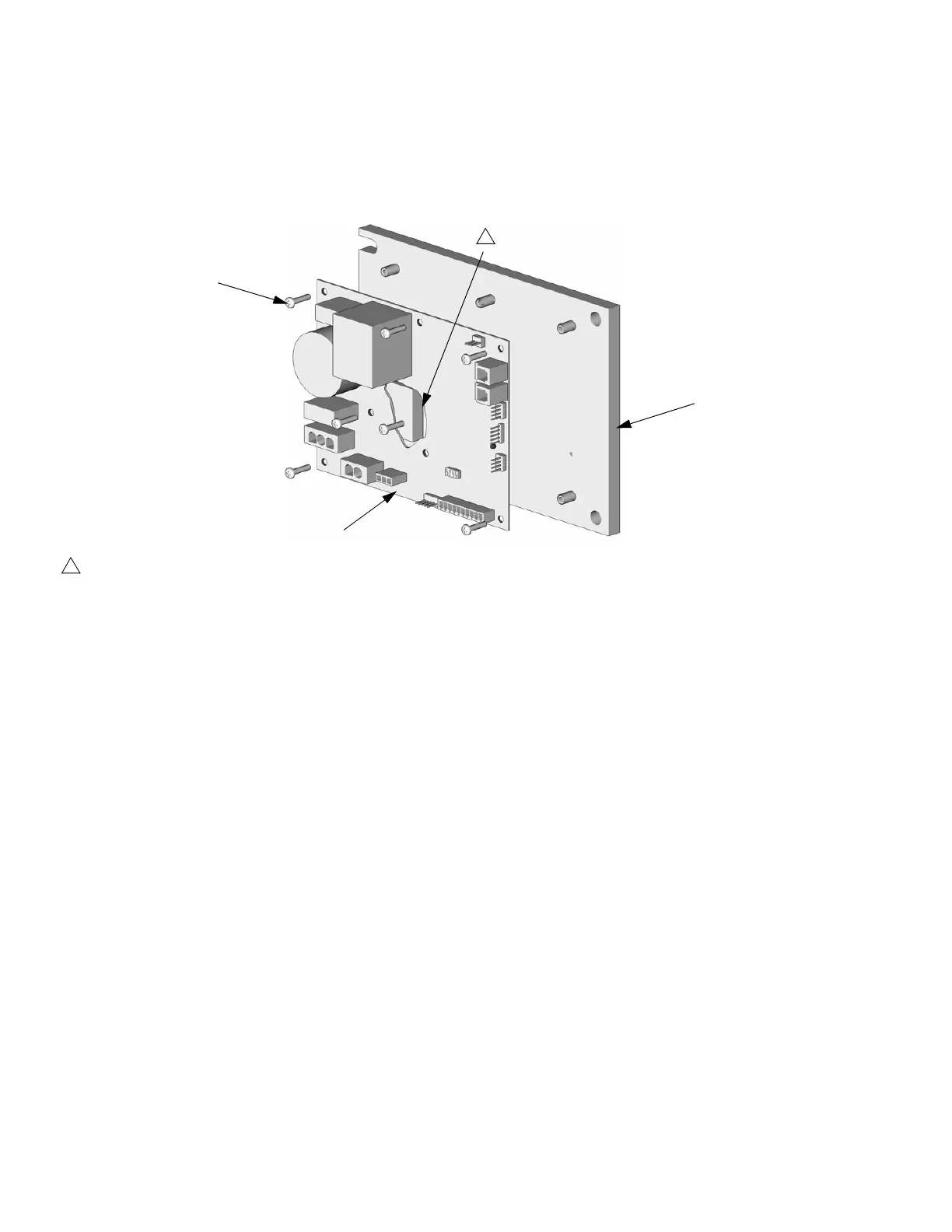

Motor Control
245980 Motor Control, for E-20 and E-XP1
TI3153A
602
603
601
1
Apply 110009 thermal heatsink compound to mating surfaces.
1
Ref.
No. Part No. Description Qty
601 15B297 HEAT SINK 1
602 246195 BOARD, motor control 1
603 107156 SCREW, machine; 6-32 7

Graco REACTOR E-30 Specifications

General

Maximum Fluid Temperature	190°F (88°C)
Max Fluid Pressure	3000 psi
Heater Wattage	6000 W
Power Requirements	3-phase, 230V
Type	Electric
Heater Voltage	230V
Fluid Outlet Size	3/8 in
Voltage	230V
Spray Tip Size	0.015 - 0.035 in
