Graco REACTOR E-30 User Manual

Repair
34 309574C
Heater
Heater Element
2. Relieve pressure, page 8.
3. Wait for heaters to cool.
4. See F
IG
. 11. Remove tape and wire connector (63,
not shown), and disconnect heater element wires
(W) from heater wire harness. Test with ohmmeter.
Resistance must be 21-25 ohms for 2550W ele-
ment, and 30-34 ohms for 1500W element.
5. If heater fails test, remove temperature sensor (211)
to avoid damage.
6. Remove heater element (207) from tube (201). Be
careful not to spill any fluid left in tube.
7. Install new heater element (207), holding mixer
(202) so it does not interfere with sensor port (P).
8. Reinstall temperature sensor, page 35.
9. Reconnect wires and secure with connector (63)
and electrical tape.
1. Turn main power OFF . Disconnect power
supply.
WARNING
Read warnings, page 6. Wait for heaters to cool before
repairing.

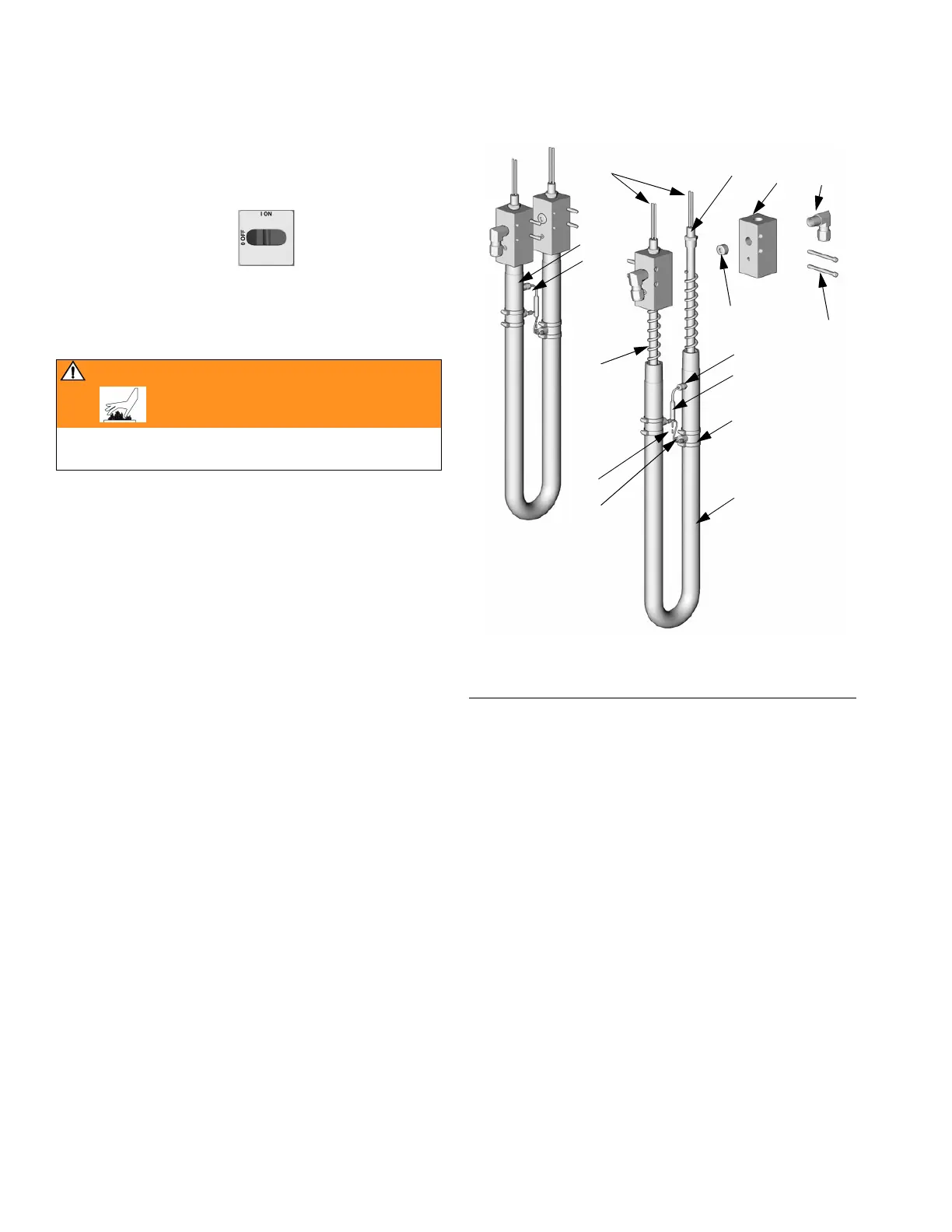

F
IG
. 11. Heater (Model 245962 Shown)
217
201
203
208
202
211
206
100205207
210
TI2512A
211
W
P
P

Graco REACTOR E-30 Specifications

General

Maximum Fluid Temperature	190°F (88°C)
Max Fluid Pressure	3000 psi
Heater Wattage	6000 W
Power Requirements	3-phase, 230V
Type	Electric
Heater Voltage	230V
Fluid Outlet Size	3/8 in
Voltage	230V
Spray Tip Size	0.015 - 0.035 in
