Graco True Airless LTS15 User Manual

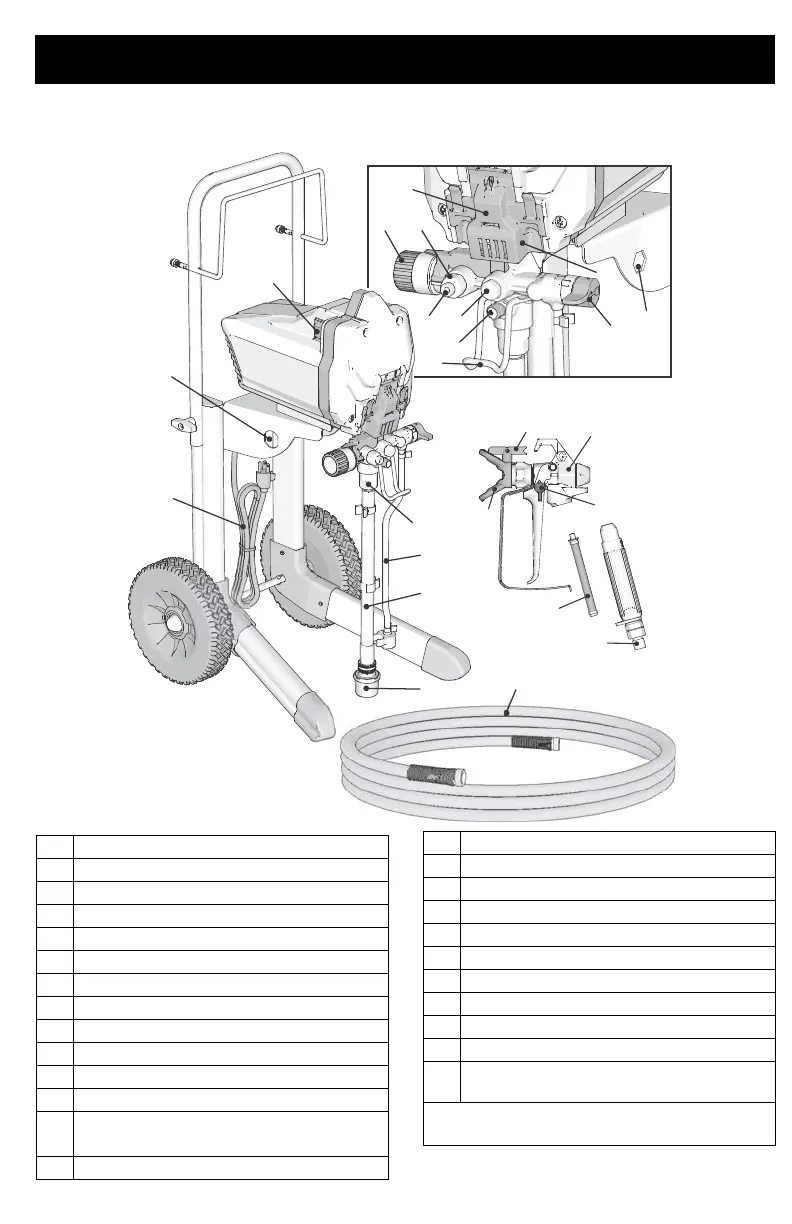

Know Your Sprayer
3A3529C 11
ProLTS 190 Cart Model
D
C
F
E
T
V
S
R
P
B
N
X
U
Z
ti27117a
Q
A
O
K
J
G
H
M
L
Y
A PushPrime Button
B Prime/Spray Valve
C Pressure Control Knob
D ON/OFF Switch
E Suction Tube
F Drain Tube (with diffuser)
G Airless Spray Gun
H Reversible Spray Tip
J Tip Guard
K Gun Trigger Lock
LGun Fitting
M Gun Filter (inside handle)
N ProXChange Pump (behind Easy
Access Door)
OInlet Valve
P Airless Hose Connection
Q Airless Hose
R InstaClean Filter (inside fluid outlet)
S Pail Hanger
T Inlet Strainer
U Power Cord
V Easy Access Door
X Pump Removal Tool
YOutlet Valve
Z Inlet Valve Removal Tool
Model/Serial Tag (Not shown, located
on bottom of unit.)
See Quick Reference, page 31 for more
information.
