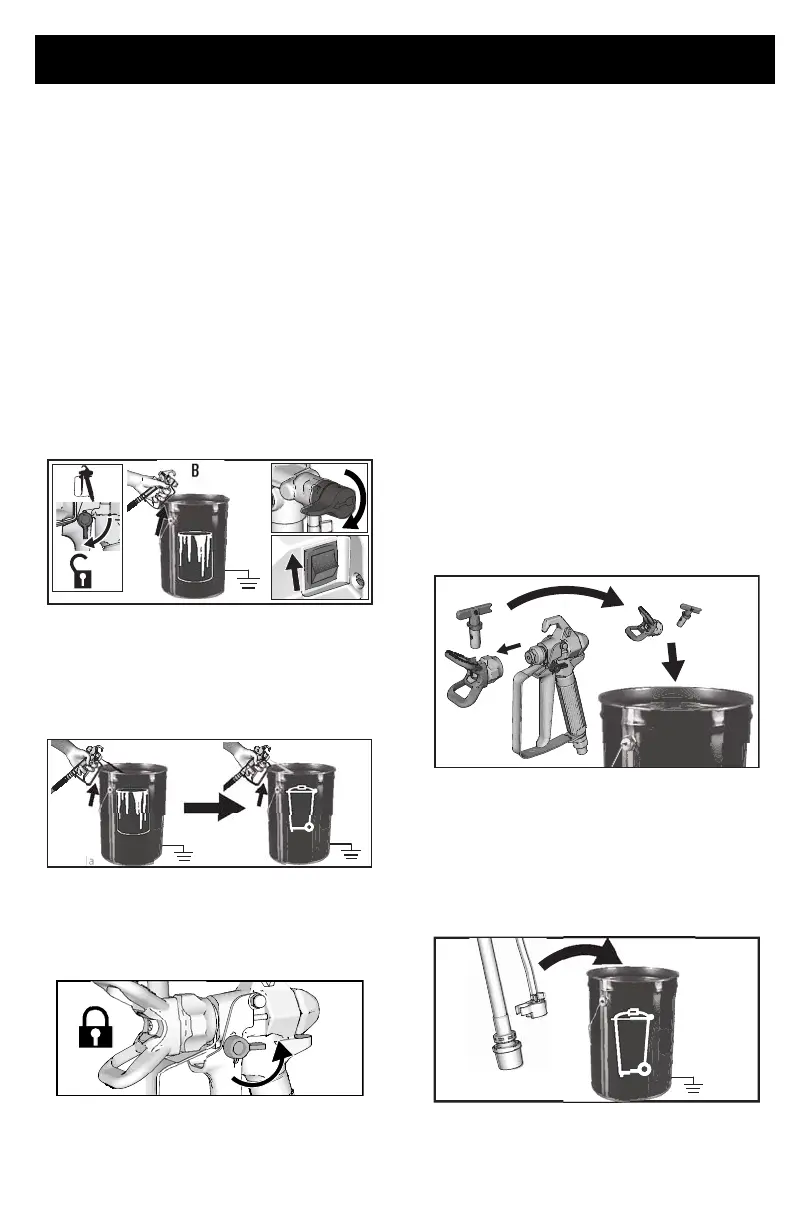

11. Turn ON/OFF switch to OFF position.
NOTE: Step 12 is for returning paint in hose
to paint pail. One 50 ft (15 m) hose holds
approximately 1 quart (1 liter) of paint.
12. To recover paint in hose, point gun into
paint pail while holding gun firmly to the
pail.
a. Disengage trigger lock.
b. Pull and hold gun trigger.
c. Turn Prime/Spray valve horizontal
to SPRAY position.
d. Turn ON/OFF switch to ON position.
e. Continue to hold gun trigger until
you see paint diluted with flushing
fluid starting to come out of gun.
13. While continuing to trigger gun, quickly
move gun to redirect spray into waste
pail. Continue triggering gun into waste
pail until flushing fluid dispensed from
gun is relatively clear.
14. Turn pressure control knob to the low-
est setting.
15. Stop triggering gun. Engage the trigger
lock.
16. Turn Prime/Spray valve down to
PRIME position.
17. Turn ON/OFF switch to OFF position.
18. Clean outlet filter. ProLTS only: See
Cleaning InstaClean
™
Fluid Filter
(ProLTS only), page 25.
19. Fill unit with Pump Armor
™
fluid. See
Long Term Storage, page 26.
Cleanup with Power Flush
Adapter
(Water-based materials only)
Power flushing is a faster method of cleanup.
It can only be used after spraying
water-based coatings.
1. Perform Pressure Relief Procedure,
page 13.
2. Remove spray tip and tip guard assem-
bly from gun and place in waste pail.
3. Place empty waste and paint pails side
by side.
4. Lift suction tube and drain tube from
paint pail. Let paint drain into the pail.
5. Place suction and drain tube in waste
pail.
6. Turn pressure control knob to the
Prime/Clean setting.
ti27148a
A
B
C
D
ti27151a
To Next Page
