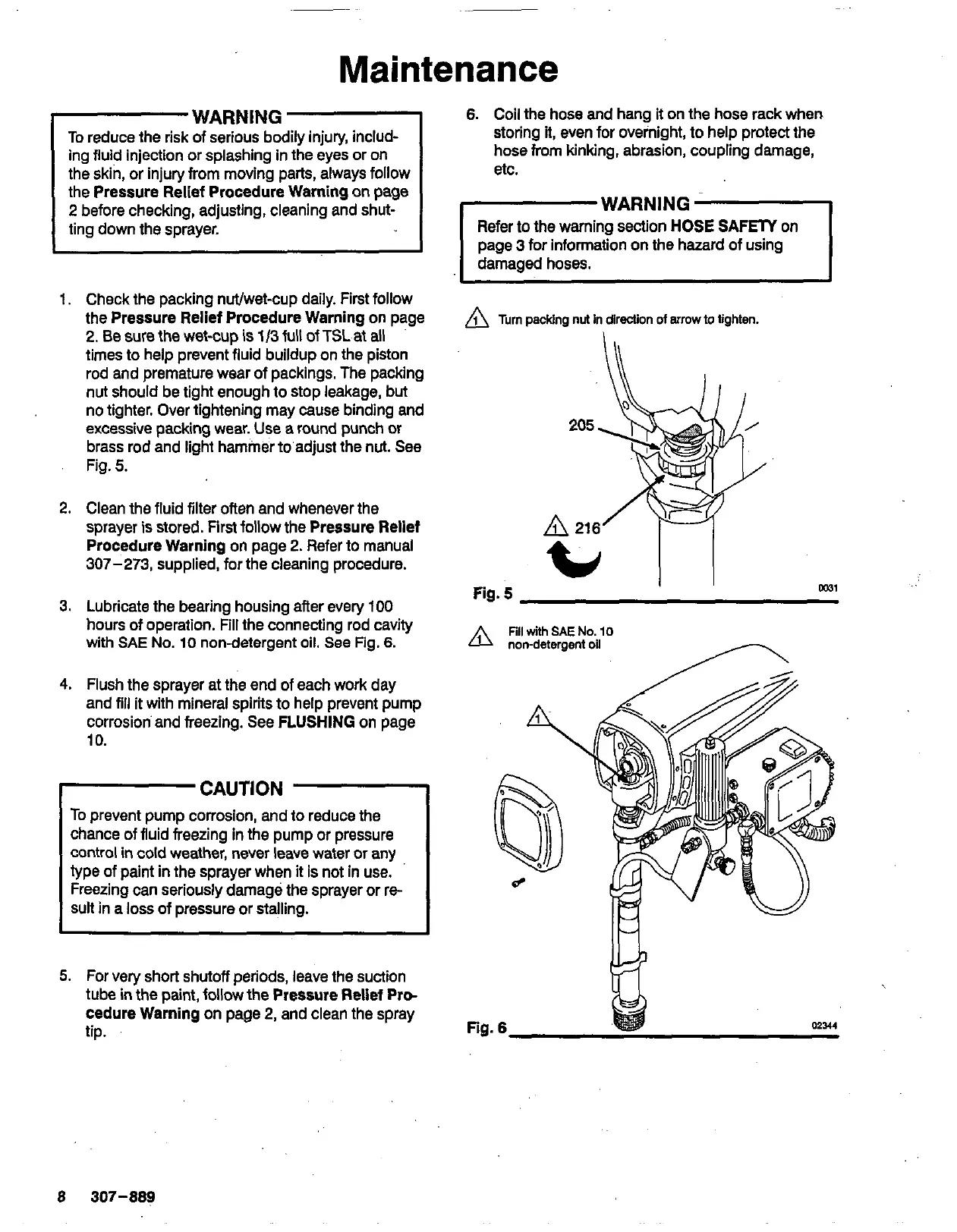

Maintenance
r
WARNING
To reduce the risk of serious bodily injury, includ-
the skin, or injury from moving parts, always follow
ing fluid injection or splashing in the eyes or on
the Pressure
Relief
Procedure Warning on page
2
before checking, adjusting, cleaning and shut-
ting down the sprayer.
~~~
1.
Check the packing nutlwet-cup daily. First follow
the Pressure Relief Procedure Warning on page
2.
Be
sure the wet-cup is
113
full
of TSL.at all
times to help prevent fluid buildup on the piston
rod and premature wear of packings. The packing
nut should be tight enough
to
stop leakage, but
no tighter. Over tightening may cause binding and
excessive packing wear.
Use
a round punch or
brass rod and light hammer to'adjust the nut.
See
Fig.
5.
2.
Clean the fluid filter often and whenever
the
sprayer is stored. First follow the Pressure Relief
307-273,
supplied, for the cleaning procedure.
Procedure Warning on page
2.
Refer to manual
3.
Lubricate the bearing housing after every
100
hours
of operation. Fill the connecting rod cavity
with
SAE
No.
10
non-detergent oil.
See
Fig.
6.
4.
Flush the sprayer at the end of each work day
and
fill
it with mineral spirits
to
help prevent pump
corrosion'and freezing. See FLUSHING on page
10.
r
CAUTION
To
prevent pump corrosion, and to reduce the
chance of fluid freezing in the pump or pressure
control in cold weather, never leave water or any
type of paint in the sprayer when it is not in
use.
Freezing can seriously damage the sprayer or
re-
sult in a loss of pressure or stalling.
5.
For very short shutoff periods, leave the suction
tube
in
the paint,
follow
the Pressure Relief Pro-
cedure Warning on page
2,
and clean the spray
tip.
6.
Coil the hose and hang it on the hose rack when
storing
it,
even for ovemight, to help protect the
hose from kinking, abrasion, coupling damage,
etc.
IWARNlNGl
Refer to the warning section HOSE
SAFETY
on
page
3
for Information on the hazard of using
damaged hoses.
A
Turn pacWng nul in direction
of
arrow
to
lighten.
Fig.
5
I
I
KO1
Fill
with
SAE No.
10
Q
nondetergent oil
Fig.
6
02w
