Graco XM Series Repair Parts
5
of 1
of 1 rating
106 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Electrical Schematics
313289W
49

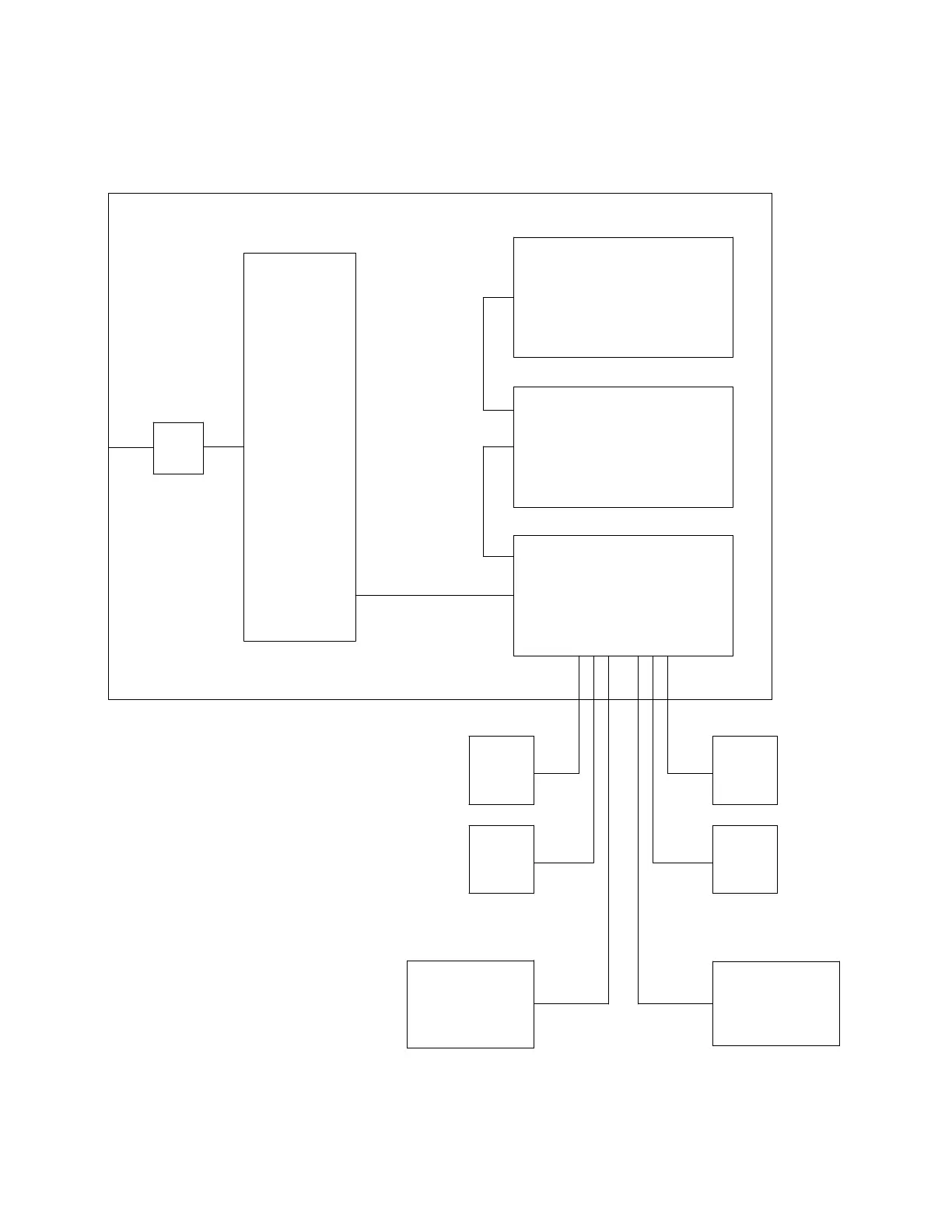

Simplified Electrical Schematic, XM Sprayer with Wall Power
Pow
er
Supply
(15V747)
Fluid
Contro
l
Module
(255920)
Display Module,
Rear (288997)
Fr
ont (255727)
Cable, CAN
Cable, CAN
(15V779)
Pressur
e
T
ransducer
B Side
(15M669)
Pressur
e
T
ransducer
A Side
(15M669)
T
emp
Sensor
B Side
(15R347)
T
emp
Sensor
A Side
(15R347)
Air Motor B Side
Linear Sensor
(26C331)
Reed Switch
(24A032)
Contro
l
USB MODULE
Base (289899)
T
op (289900)
Cable, CAN
(15V778)
Air Motor A Side
Linear Sensor
(26C331)
Reed Switch
(24A032)
RTD
RTD
Powe
r
Filter
(115306)
48
50
Table of Contents
Default Chapter
2
Table of Contents
2
Related Manuals
3
Warnings
4
Important Isocyanate (ISO) Information
7
Isocyanate Conditions
7
Keep Components a and B Separate
7
Moisture Sensitivity of Isocyanates
8
Changing Materials
8
Models
9
Approvals
11
Overview
15
Usage
15
Location
15
Grounding
15
Proper Lifting of Sprayer
16
Pressure Relief Procedure
17
Flush
18
Flush Mixed Manifold, Hose, and Spray Gun
18
Flush Hoppers
19
Empty and Flush Entire System
22
Of Job)
22
Park Fluid Pump Rods
24
Shutdown Entire System
24
Cleaning Procedure
25
Troubleshooting
26
Repair
29
Replace Air Filter Element
29
User Interface/Control Box
30
Air Controls
38
Fluid Control Assembly
40
Sensors
41
Pump Assembly
42
Solvent Pump
44
Fluid Heaters
44
Electrical Schematics
45
Simplified Electrical Schematic, XM Sprayer with Alternator
45
Simplified Pneumatic Schematic, XM Sprayer with Alternator
46
Detailed Electrical Schematic, XM Sprayer with Alternator
47
Simplified Electrical Schematic, XM Sprayer with Wall Power
49
Simplified Pneumatic Schematic, XM Sprayer with Wall Power
50
Detailed Electrical Schematic, XM Sprayer with Wall Power
51
Detailed Electrical Schematic, XM Sprayer with Wall Power
52
Junction Box Wiring Schematics
53
Non-Hazardous Location 240V and 480V Viscon Water Heated Hose
53
Hose
53
Hose
55
Hazardous Location 240V and 480V Viscon Water Heated Hose
56
Hazardous Location 240V Electric Heated Hose
57
Hazardous Location 480V Electric Heated Hose
58
Parts
59
Parts Varying by Model
59
XM Plural-Component Sprayers Common Parts
74
Common Parts
77
Parts Varying by Pump Set
78
Control Box (255771) Parts
82
Control Box Power Supply Options
84
Air Controls Module (26C688) Parts
86
Fluid Control Assembly Parts
87
Air Inlet Manifold (26C689) Parts
88
Alternator Module (255728) Parts
89
Primary Fluid Heater Parts
90
25-Gallon Hopper Parts
91
10-Gallon Hopper Parts
92
Water-Jacketed Heated Hose
93
Repair and Spare Parts Reference
94
Accessories and Kits
96
Dimensions
98
XM System Dimensions Without Hoppers (Non-Hazardous Locations)
98
XM System Dimensions Without Hoppers (Hazardous Locations)
99
10-Gallon Rear Mount Steel Tank
100
25-Gallon Rear Mount Steel Tank
101
System Dimensions with Hoppers
102
System Dimensions with Hoppers
103
Technical Specifications
104
California Proposition 65
105
Graco Standard Warranty
106
Graco Information
106
