Repair
313289W 29
Repair
Follow Park Fluid Pump Rods procedure, page 24, if
service time may exceed pot life time, before servicing
fluid components, and before transporting sprayer to a
service area.

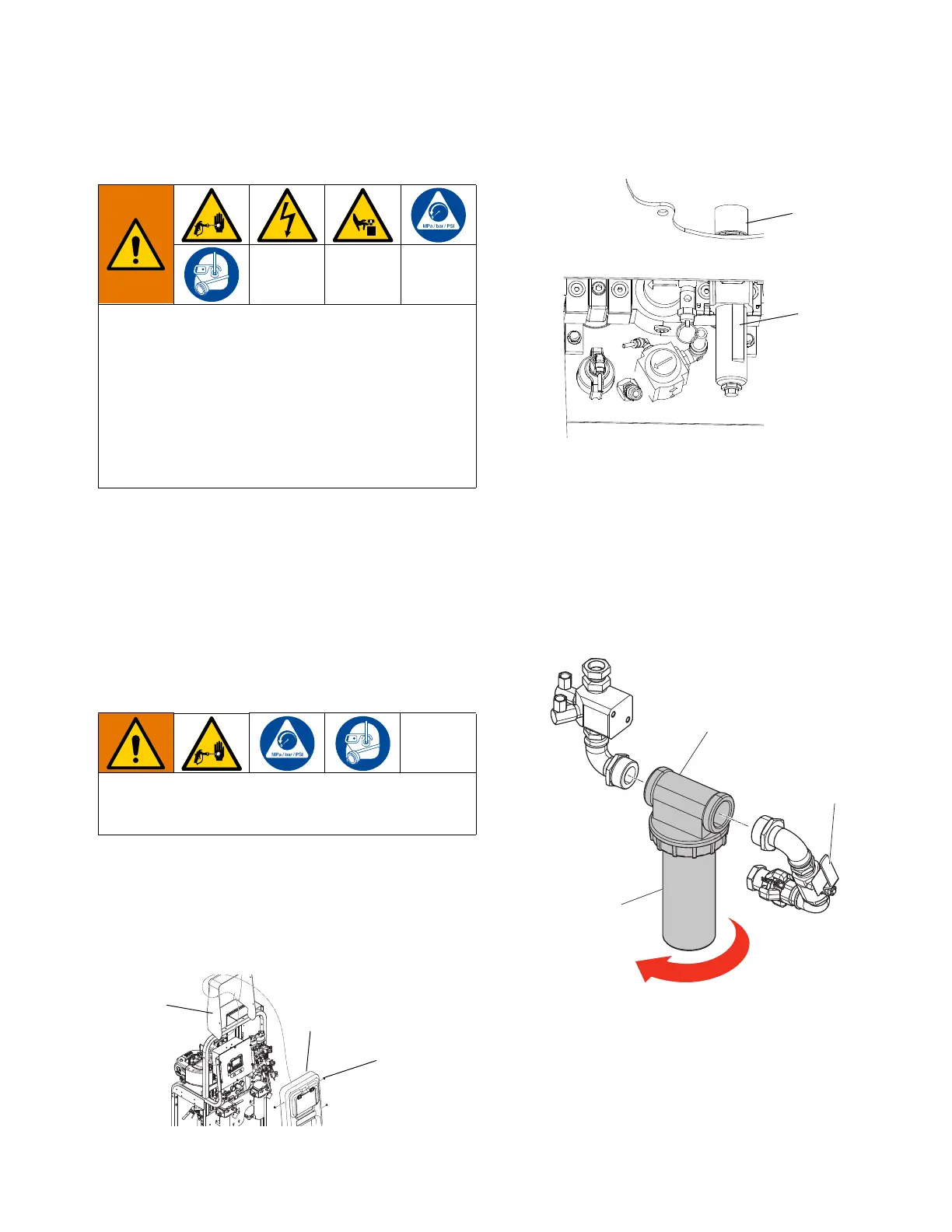

Replace Air Filter Element
There are two air filters on the system: the inlet air
regulator filter on the air controls and the main air inlet
manifold filter. Check filters weekly and replace element
as needed.
Control Air Regulator Filter
1. Close main air shutoff valve on air supply line and
on unit. Depressurize air line.
2. Remove front and rear shrouds (12, 13). Remove
four nuts (14) and then shrouds.
3. Unscrew filter bowl from inlet air regulator (344).
4. Remove and replace element.
5. Screw filter bowl on securely.
Main Air Inlet Manifold Filter
1. Close main air shutoff valve on air supply line and
main air valve (E) on unit. Depressurize air line.
2. Unscrew filter bowl (D) from main air valve (E).
3. Remove and replace filter element (601a). See Air
Inlet Manifold (26C689) Parts, page 88.
4. Reassemble filter bowl.
5. Replace front and rear shrouds (12, 13) using four
nuts (14).
To avoid injury due to unexpected machine operation
initiated by a remote controller, disconnect the
customer I/O cable from the system prior to repair.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure on page 17 and disconnect power from
the system before repairing the equipment.
Removing a pressurized air filter bowl could cause
serious injury. Do not service air filter until air line is
depressurized.
Filter Bowl
and Element
344
