Graco XP User Manual

Repair
3A3320E 21

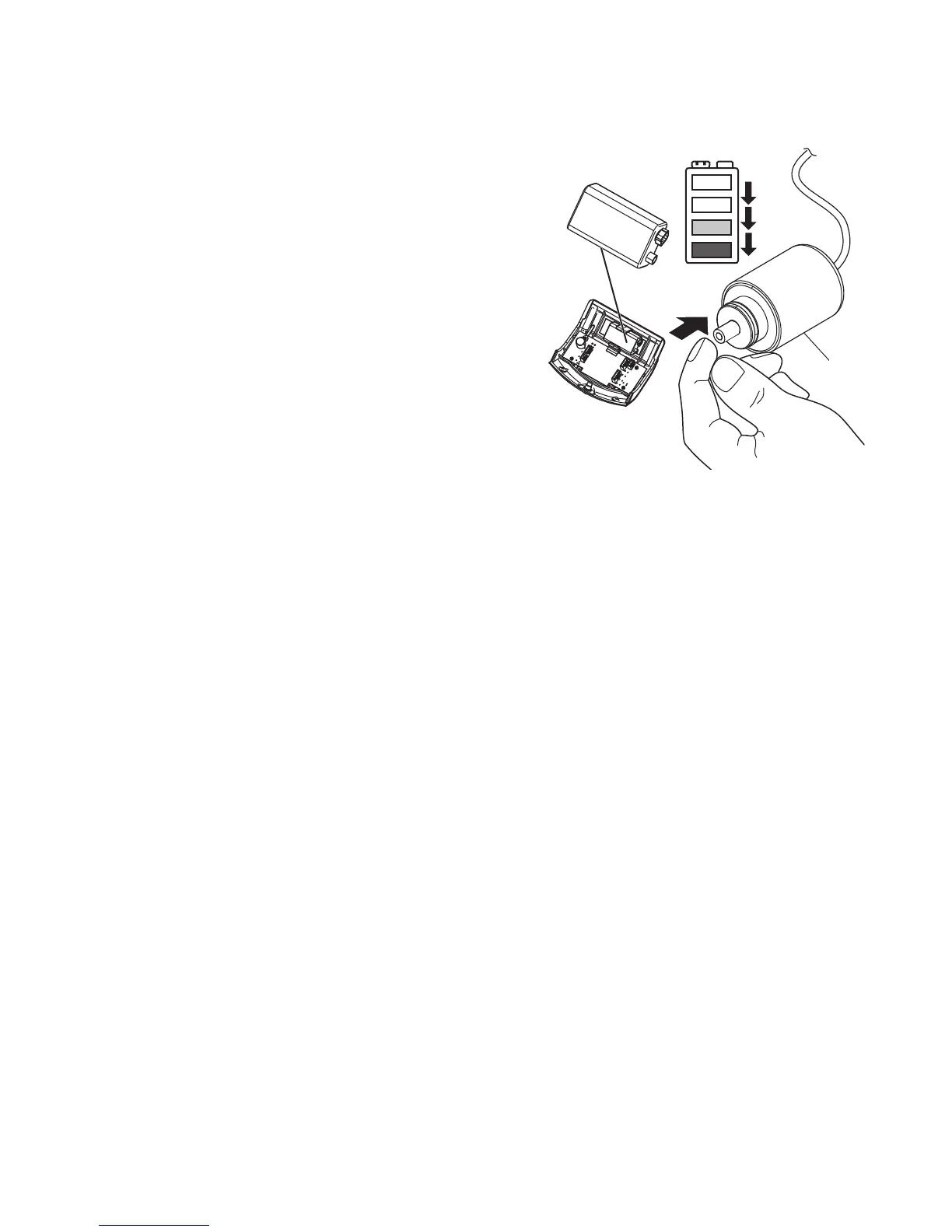

Retract a Solenoid With a Dead
Battery
First replace the battery and clear the error (this will
retract the pin). If no replacement battery is available,
complete the following steps to retract the solenoid.
1. Remove cover (3), front (D), and retainer (G).
2. Push pin back into solenoid (7).
3. Reinstall solenoid (7), retainer (G), front (D), and
cover (3).
NOTE: For more detail on parts orientation, see
Installation, page 10.
WLD


Graco XP Specifications

General

Spray Technology	Airless
Power Source	Electric
Typical Applications	Industrial Coatings
Flow Rate	0.5 GPM
Hose Length	100 ft
