Gradall D152 - Remote Mode Power Train; Driving Undercarriage from Upperstructure Cab

Section 3 - Operation
3-6 82104002
3.4 REMOTE MODE POWER TRAIN
Driving Undercarriage from Upperstructure Cab
Note: Never tow a load using remote control drive.
Operate the engine at full throttle. Undercarriage speed is controlled by the amount
of travel pedal actuation.

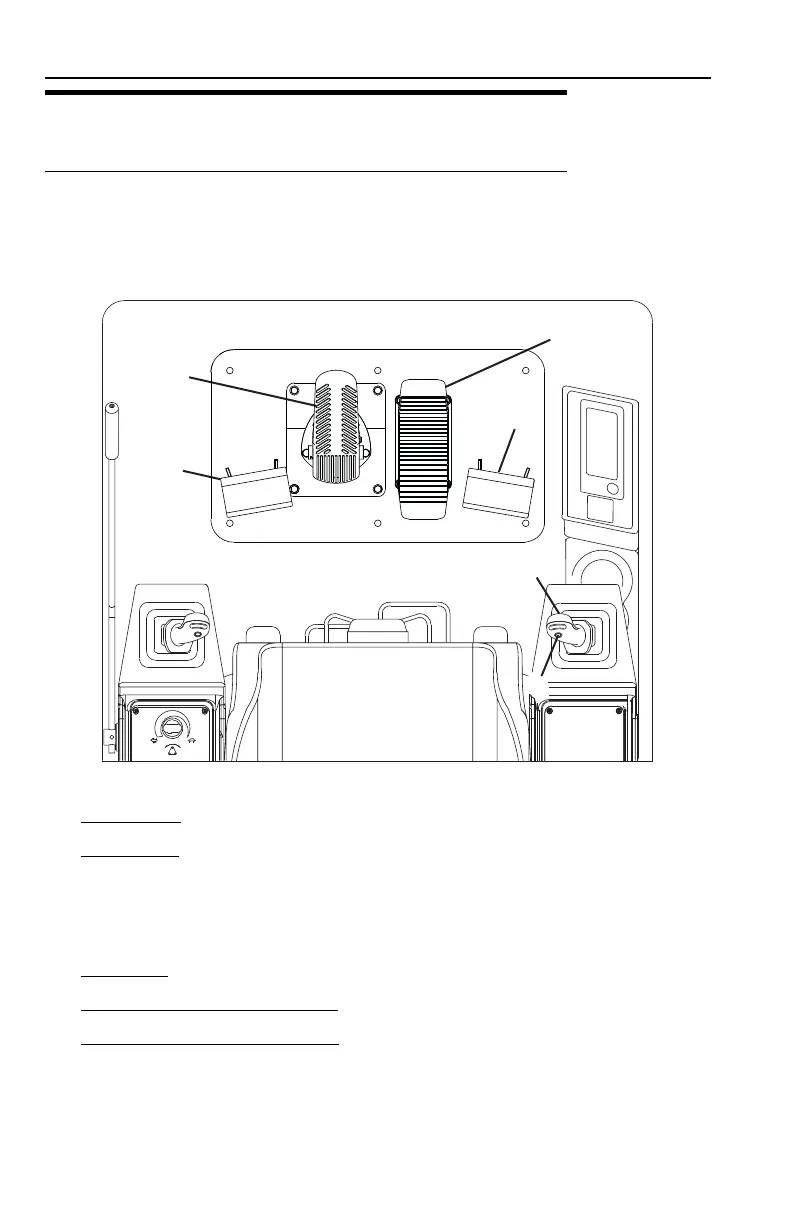

1. Travel Pedal
: The travel pedal controls undercarriage travel speed.
2. Brake Pedal
:
• Prior to Travel - Depress fully to engage transmission and allow forward/
reverse travel.
• While Traveling - Depress to slow or stop machine.
3. Foot Rests
4. Joystick Button - Forward Travel
5. Joystick Button - Reverse Travel
1
2
3
3
4
5
OAC2680
