Section 7 - Specifications
7-582104002
Rear Axle Torque Check
• Ensure rear axle cap screws are torqued to 560-595 lb-ft (8 screws)

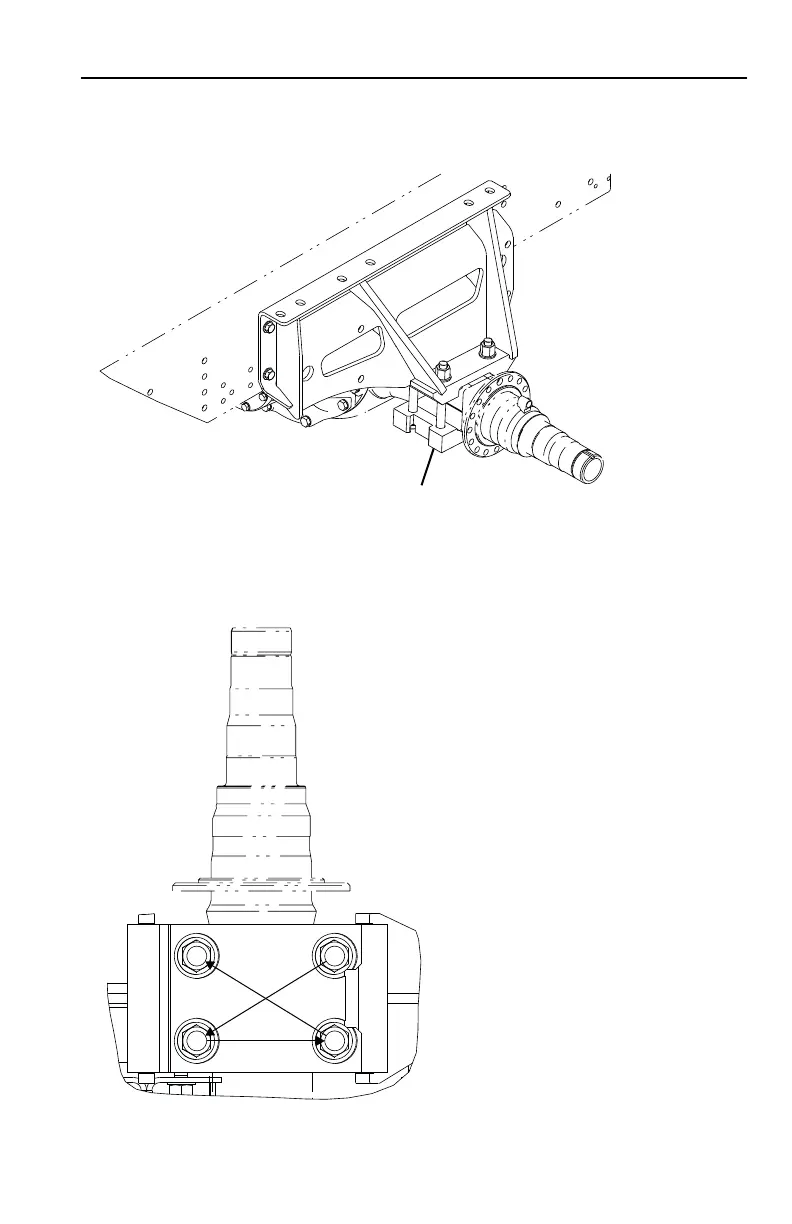

If replacement or torquing of cap screw(s) is required, follow the pattern illustrated:
Torque bolts in a 4-stage, criss-
cross pattern:
Stage 1 - 150-185 lb-ft
Stage 2 - 280-315 lb-ft
Stage 3 - 470-505 lb-ft
Stage 4 - 560-595 lb-ft
(BOTH SIDES OF REAR AXLE)
