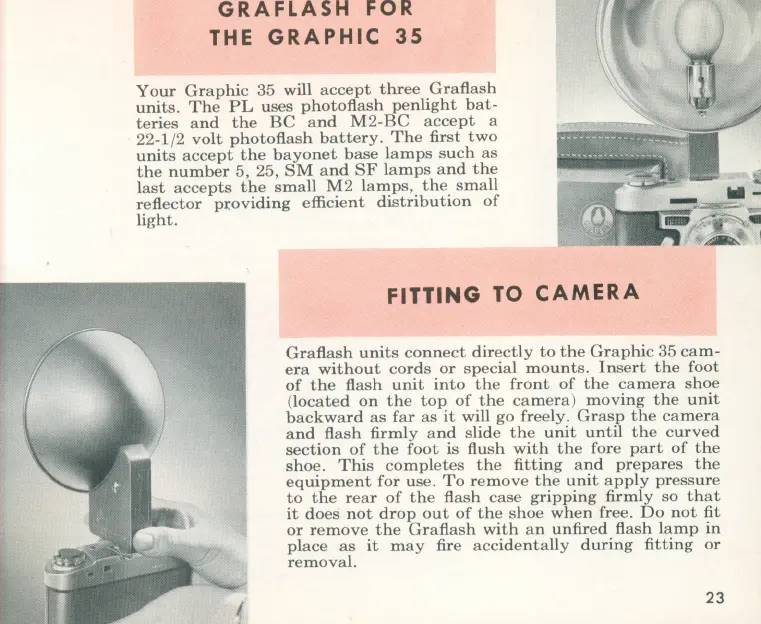

GRAFLASH FOR
THE GRAPHIC 3S
Your Graphic 35 will accept three Graflash
units. The PL uses photoflash penlight bat-
teries and the BC and M2-BC accept a
22-1/2
volt photoflash battery. The first two
units accept the bayonet base lamps such as
the number 5, 25, SM and SF lamps and the
last accepts the small M2 lamps, the small
reflector pJ:Oviding efficient distribution of
light.
FITTING TO CAMERA
Graflash units connect directly to the Graphic 35 cam-
era without cords or special mounts . Insert the foot
of the flash unit into the front of the camera shoe
(located on the top of the camera ) moving the unit
backward as far as it will go freely. Grasp the camera
and flash firmly and slide the unit until the curved
section of the foot is flush with the fore part of the
shoe. This completes the fitting and prepares the
equipment for use. To remove the unit apply pressure
to the rear of the flash case gripping firmly so that
it does not drop out of the shoe when free. Do not fit
or remove the Graflash with an unfired flash lamp in
place as it may fire accidentally during fitting or
removal.
23
