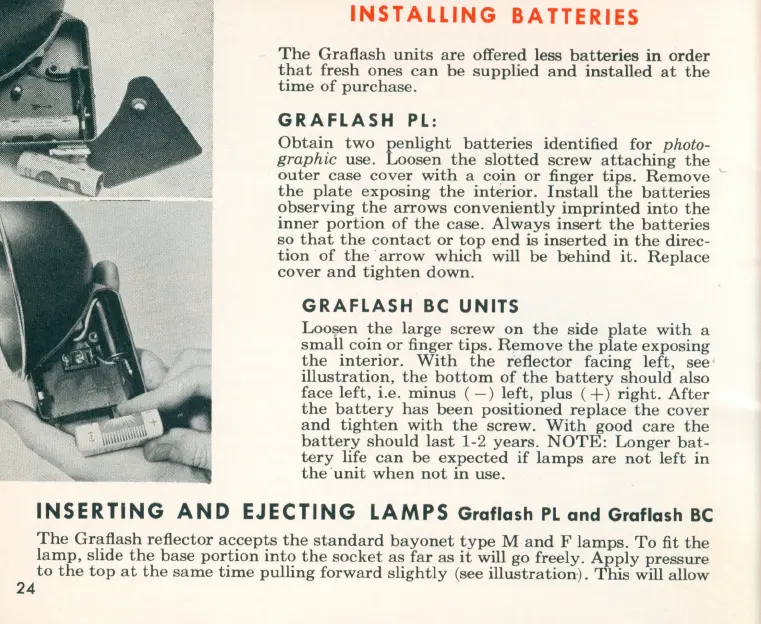

INSTALLING BA TTERIES
The Graflash units are offered less batteries in order
that fresh ones can be supplied and installed at the
time of purchase.
GRAFLASH PL :
Obtain two penlight batteries identified for photo-
graphic use . Loosen the slotted screw attaching the
outer case cover with a coin or finger tips. Remov e
the plate exposing the interior. Install the batteries
observing the arrows conveniently imprinted into the
inner portion of the case. Always insert the batteries
so that the contact or top end is inserted in the direc-
tion of the ' arrow which will be behind it. Replace
cover and tighten down.
GRAFLASH BC UNITS
Loo~en the large screw on the side plate with a
small coin or finger tips . Remove the plate exposing
the interior . With the reflector facing left , see
illustration , the bottom of the battery should also
face left, i.e. minus (-) left, plus ( + ) right. After
the battery has been positioned replace the cover
and tighten with the screw. With good care the
battery should last 1-2 years. NOTE: Longer bat-
tery life can be expected if lamps are not left in
the ' unit when not in use.
INSERTING AND EJECTING LAMPS Graflash PL and Graflash BC
The Graflash re flector accepts the stand a rd bayonet type M and F l amps . To fit the
lamp, slide the base portion into the sock et as far as it will go freely . Apply pressure
to the top at the same time pulling forward slightly ( see illu stration ) . Th is will allow
