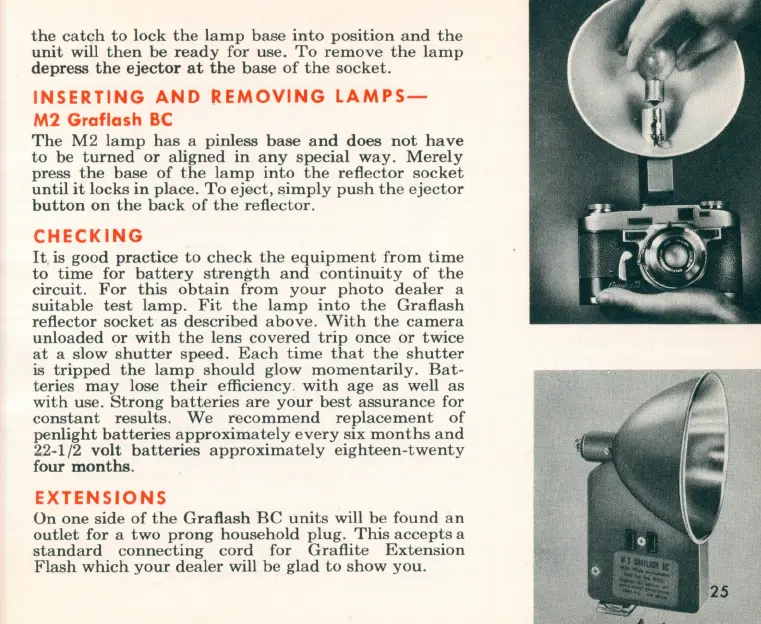

the catch to lock the lamp base into position and the
unit will then be ready for use. To remove the lamp
depress the ejector at the base of the socket.
INSERTING AND REMOVING LAMPS-
M2 Graflash BC
The M2 lamp has a pinless base and does not have
to be turned or aligned in any special way. Merely
press the base of the lamp into the reflector socket
until it locks in place. To eject, simply push the ejector
button on the back of the reflector.
CHECKING
It is good practice to check the equipment from time
to time for battery strength and continuity of the
circuit. For this obtain from your photo dealer a
suitable test lamp . Fit the lamp into the Graflash
reflector socket as described above. With the camera
unloaded or with the lens covered trip once or twice
at a slow shutter speed. Each time that the shutter
is tripped the lamp should glow momentarily . Bat-
teries may lose their efficiency. with age as well as
with use . Strong batteries are your best assurance for
constant results. We recommend replacement of
penlight batteries approximately every six months and
22-1/2 volt batteries approximately eighteen-twenty
four months.
EXTENSIONS
On one side of the Graflash Be units will be found an
outlet for a two prong household plug. This accepts a
standard connecting cord for Graflite Extension
Flash which your dealer will be glad to show you.
