• Encoding to “Signed 16bit PCM”
• Byte order to “No endianness”
• Channels to “1 channel (Mono)”
• Sample rate to “8000 Hz”

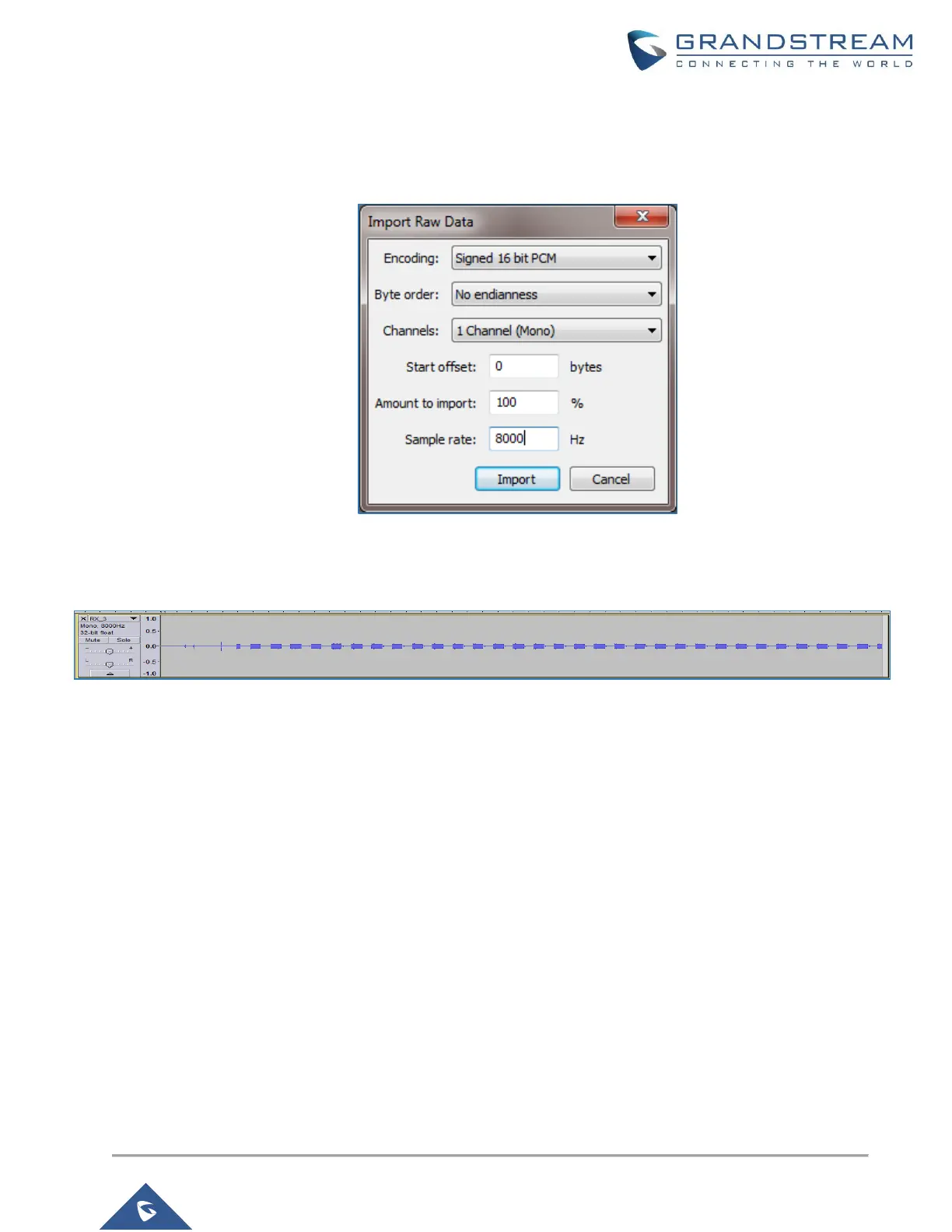

Figure 25: Import Raw Data Parameters
3. The result will be similar to the following figure:
Figure 26: Raw Data Imported
Step 3: Measuring Cadence
Once the RX raw file is successfully imported, we can now measure ringing and silence duration that will
corresponds to cadence value (Cadence= Ringing duration/Silence duration).
Below is an example on how to measure silence and tone duration using the imported RX raw file.
