UCM6XXX Analog Trunks Guide

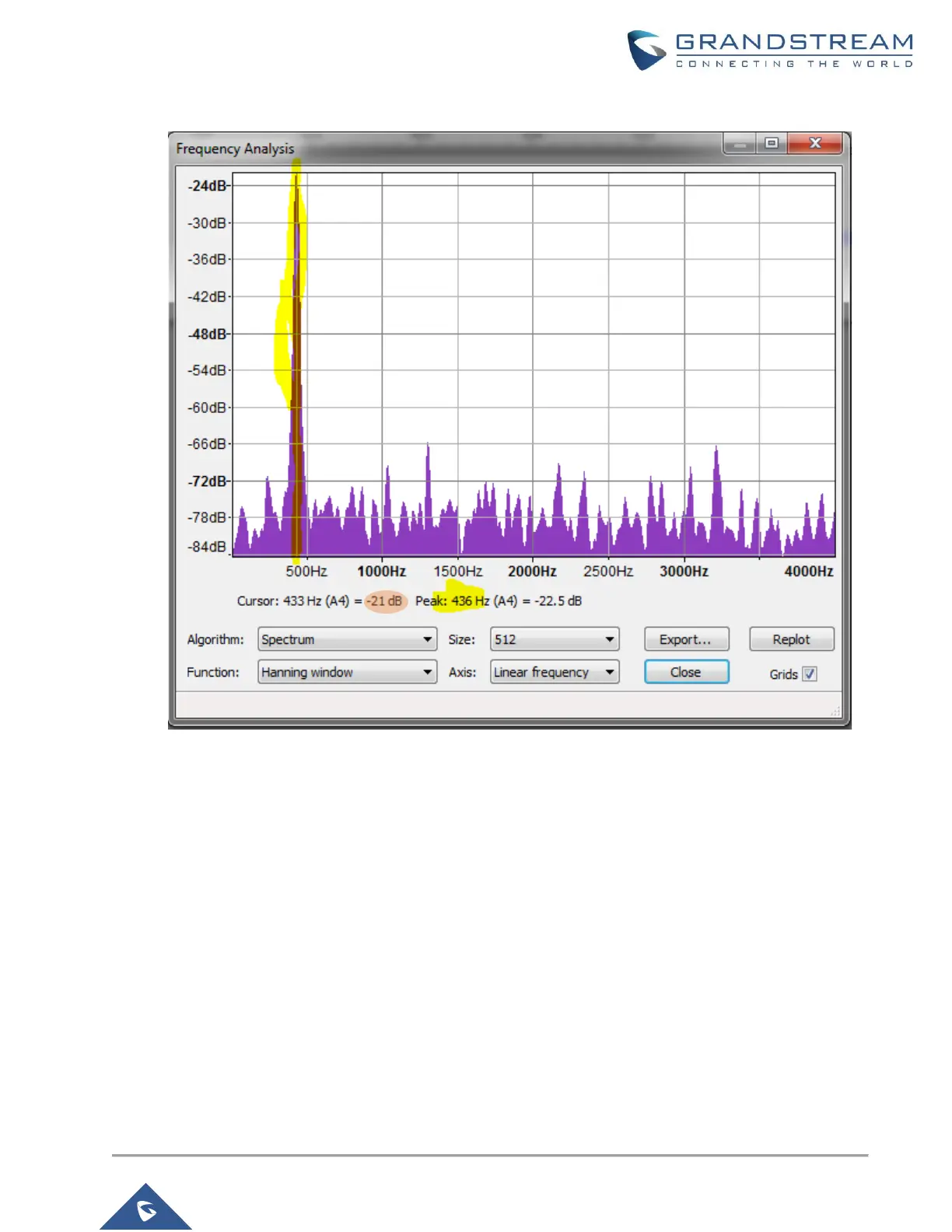

Figure 28: Busy Tone Frequencies
In this example we have only one frequency Peak, hence the Busy tone frequencies are f1=436Hz@-
20dB and f2=0Hz@–20dB. (We have rounded the attenuation value to -20dB).
