SIP Presence Guide

P a g e | 14

Please find the icon indications below for different Presence Status (Starting from firmware 1.0.9.25):

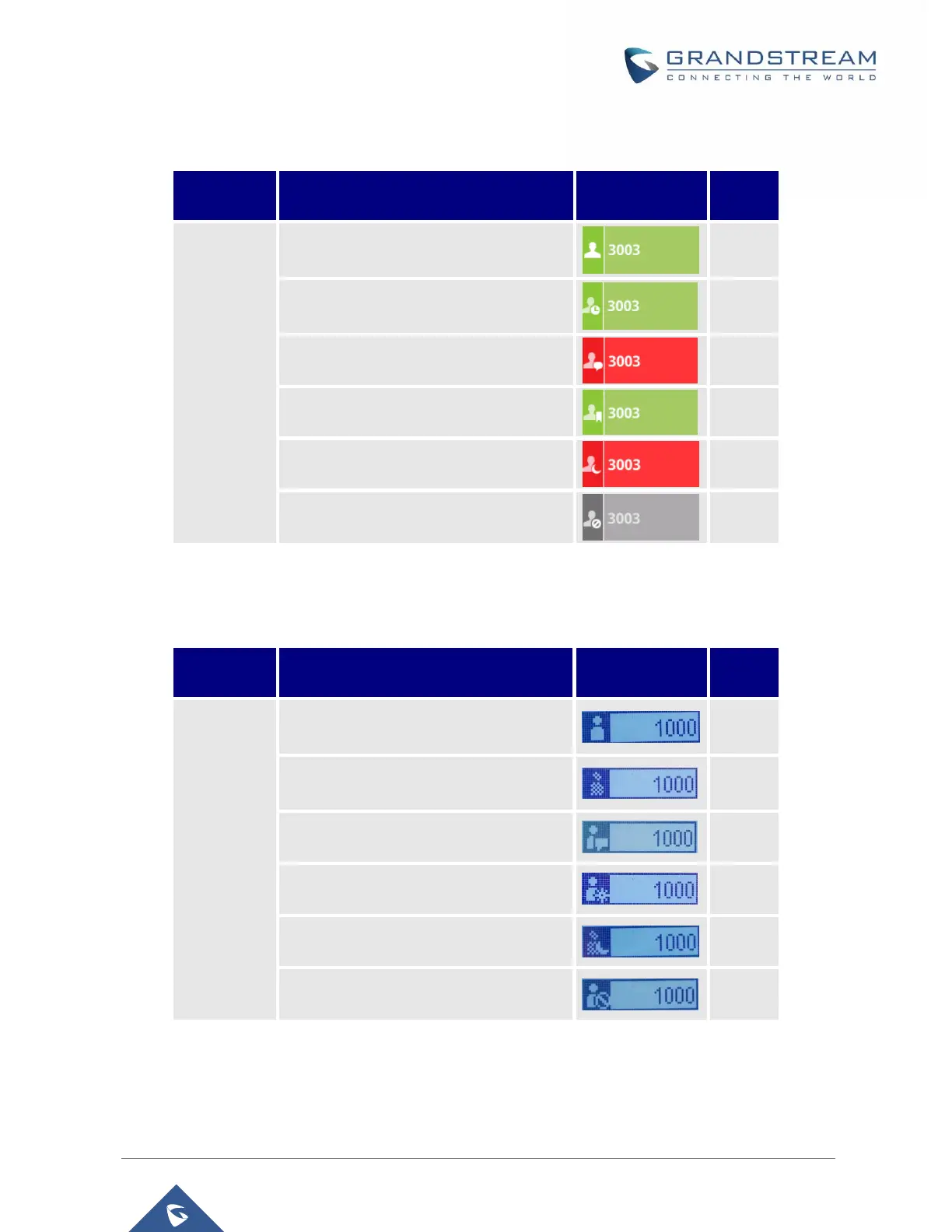

Table 3: VPK Icon Indications on GXP21XX, GRP261x and GRP2624/GRP2634 phones

VPK Mode

State

Icon + Label

LED

Status

Presence

Watcher

Available

GREEN

Away

GREEN

Chat

RED

Custom Status

GREEN

DND

RED

Unavailable

OFF

Table 4: VPK Icon Indications on GXP17XX phones

VPK Mode

State

Icon + Label

LED

Status

Presence

Watcher

Available

GREEN

Away

GREEN

Chat

RED

Custom Status

GREEN

DND

RED

Unavailable

OFF
