Page 29Section 8: Electrical
8.5 BOILER CONTROL PANEL WIRING DIAGRAMS
L
1
2
3
4
5
6
7
8
9
10
11
12
13
L
N
E
L
N
E
L
N
E
C 2 C 1
5B 2A
4B 1A
Frost
Thermostat
Limit
Thermostat
Control
Thermostat
Red
Green/Yellow
Green/Yellow
Green/Yellow
Yellow
Yellow
Yellow
Yellow
Brown
Blue
Red
Red
Red
Blue
Blue
Red
Red
Blue
Yellow
Red
Red
Red Red
Yellow
Yellow
Green/Yellow
Mains
Boiler
On/Off
Switch
Switched Live
Permanent Live
Mains Neutral
Mains Earth
To CH Valve if required
Pump Live
Pump Neutral
Pump Earth
Burner Live
Burner Neutral
Burner Earth
}
Pump factory fitted
and wired on system
models only
Control box
chassis earth
Control box
chassis earth
Earth to
switch cover
Test switch

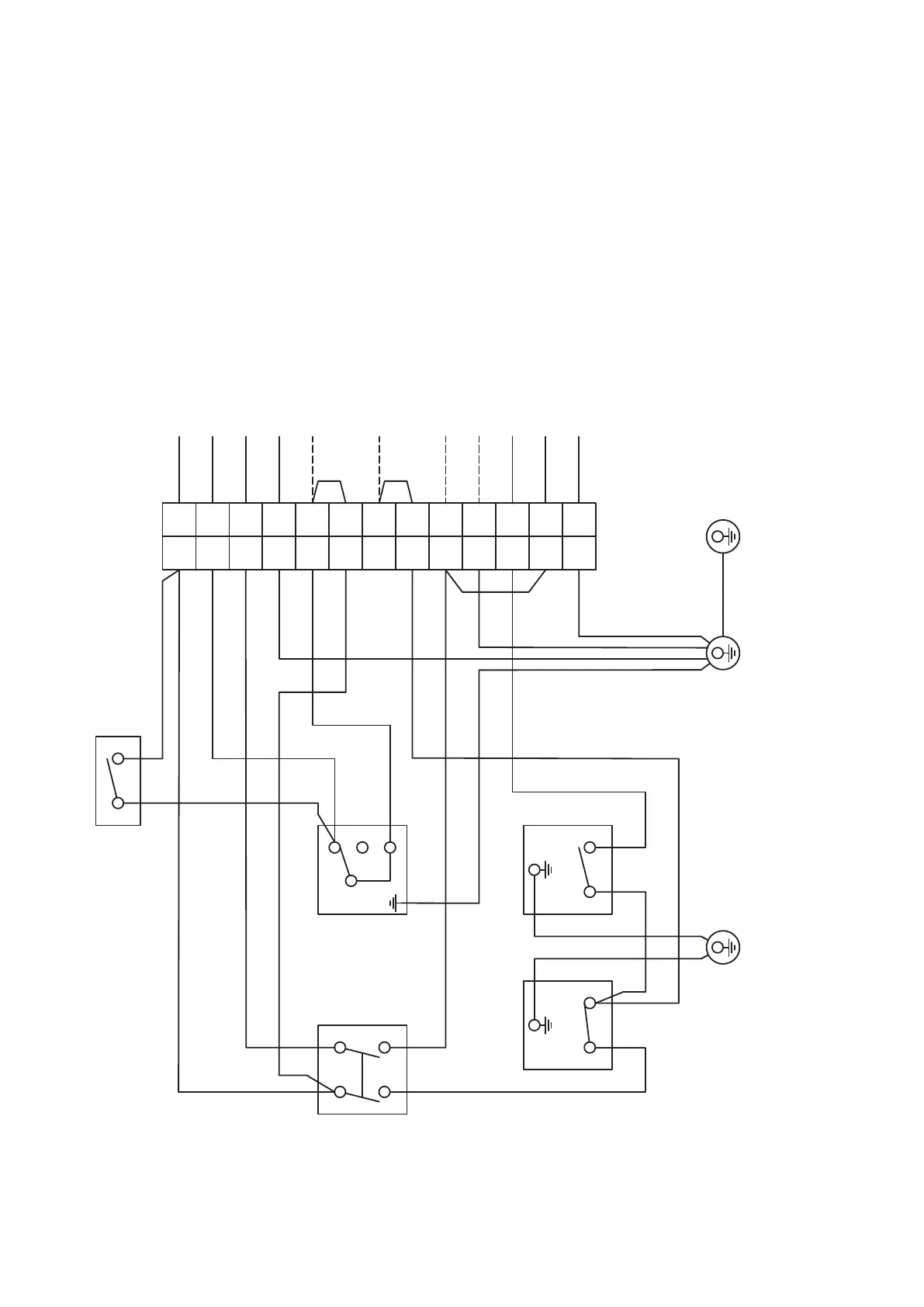

Figure 8-3: Vortex Eco External Module control panel wiring diagram
