Page 45
Section 11: Servicing

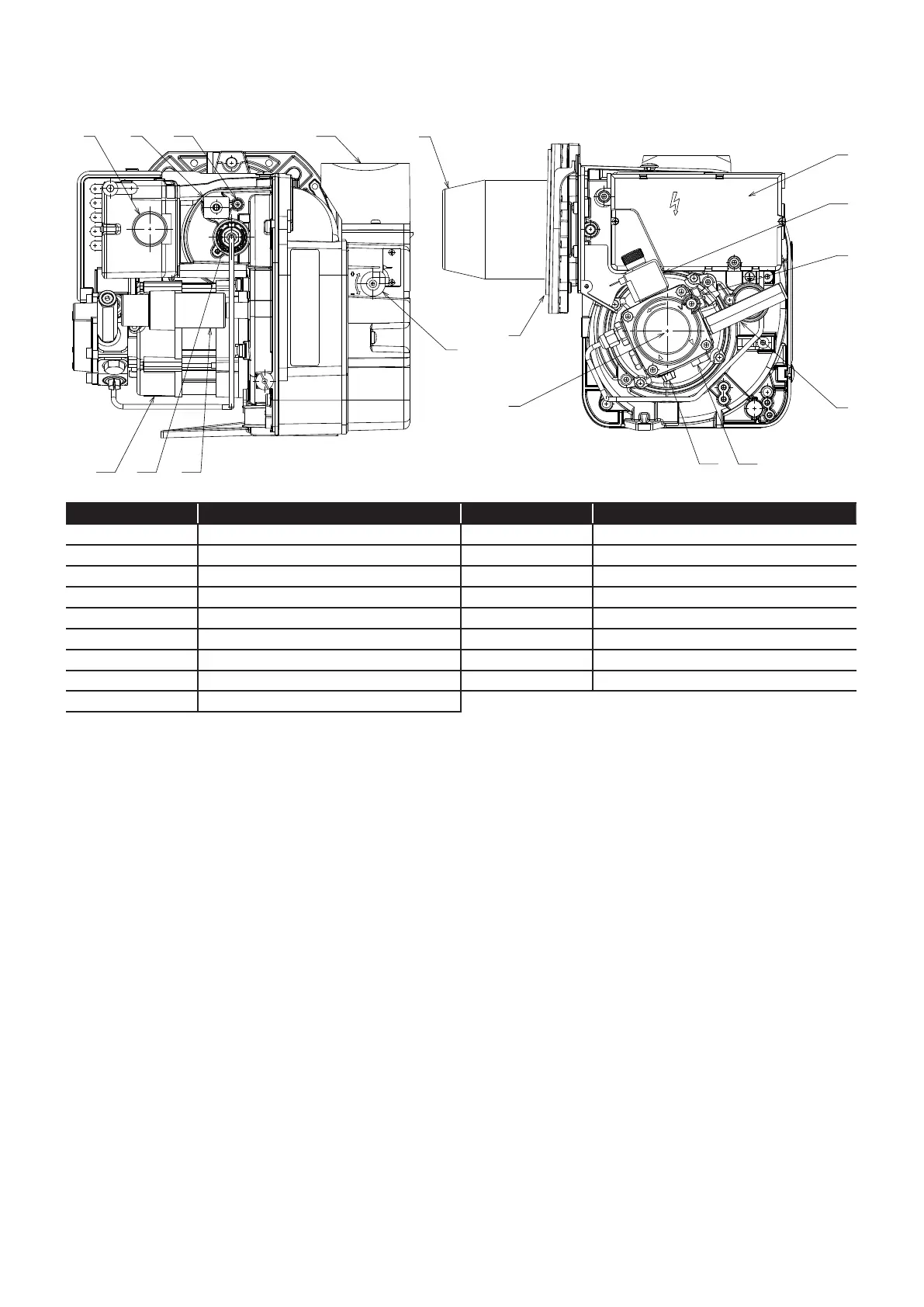

11.8 BURNER COMPONENTS
RDB2.2 BX BURNERS
8
5
16
6
7
1
9
14
13
101743
11 15 12
2
Item Description Item Description
1 Oil pump 10 Air inlet
2 Air damper adjustment screw 11 Motor
3 Reset button with lockout lamp 12 Motor ignition capacitor
4 Photocell 13 Fuel suction line
5 Control box 14 Return line
6 Pump pressure adjustment screw 15 Combustion head adjustment handle
7 Extension for gauge connection 16 Coil
8 Combustion head 17 Air pressure test point
9 Flange with insulating gasket
