Grant Vortex Eco Series - External Horizontal Conventional Flue (Green System)

Page 33

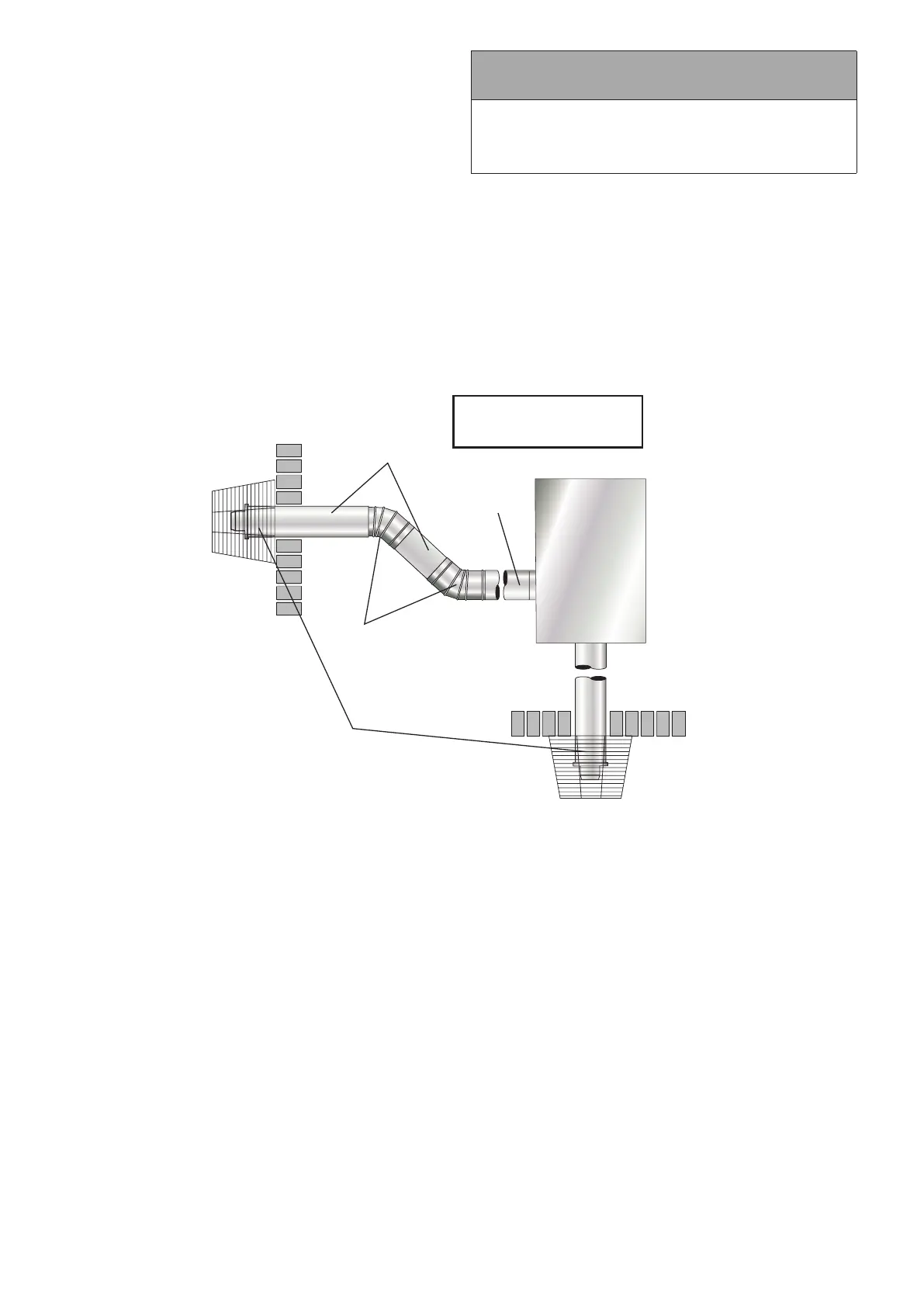

Garden wall
Outdoor
module
Garden wall
Extensions
45° elbows
Straight
terminals
Straight
starter
Maximum horizontal
length 3 metres
Figure 9-4: Horizontal external ue
Section 9: Flue System and Air Supply
9.5 EXTERNAL HORIZONTAL
CONVENTIONAL FLUE (GREEN
SYSTEM)
This option uses the Grant Green system External Module straight
starter section (GKM90C), replacing the low level terminal and
ue guard supplied with the boiler, along with components from
the Grant Green system. See Figure 9-4.
It is possible to extend the ue horizontally by a maximum of 3
metres in total ue length by using the green system. A maximum
of two 45° elbows may be utilised when extending the ue using
this system.
For further information on the connection of the Green system,
please refer to Section 9.4.
! NOTE !
The ue system from the external module can be extended
either vertically OR horizontally by using the Green
System.
NOT a combination of both.
A complete list of Grant Green system ue components can be
found in Figure 9-3 and Table 9-1.
Information on the siting of the ue terminal can be found in
Section 9.6.
