Page 32
Outdoor
module
vertical/high
level flue
options
Components for Outdoor ue system
Vertical terminal
45 elbow
O
High level 90° terminal
Wall bracket
Extended wall bracket
Starter elbow
Starter - straight
Straight terminal
Locking band
Extensions
950 mm
450 mm
195 to 270 mm
250 mm
150 mm
Vertical
terminal
45° elbows
High level
90° terminal
Extensions
45° elbow
Starter elbow
Maximum vertical
length 19 metres

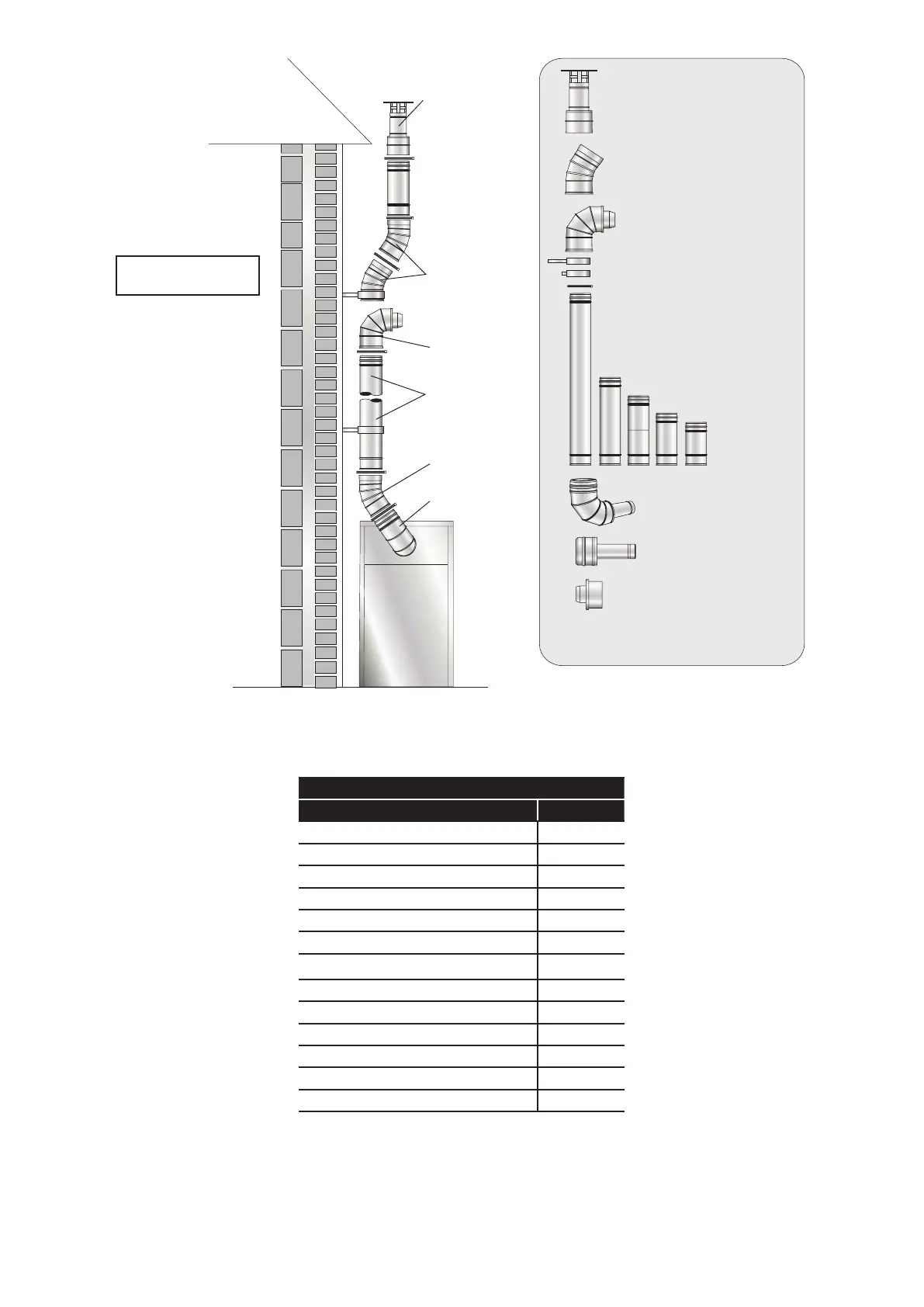

Figure 9-3: Vertical external conventional ue (Green system)
Section 9: Flue System and Air Supply
Green System Components
Item - for all Eco External models Part No.
External starter elbow GKM90
External starter - straight GKM90C
150mm extension GX150/90
250mm extension GX250/90
450mm extension GX450/90
950mm extension GX950/90
195-270mm adjustable extension GXA250/90
45 elbow GE45/90
High level terminal GTH90
Vertical terminal GTV90
Wall bracket - standard GWB90
Wall bracket - extended GEB90
Straight terminal - horizontal ue GTL90
Table 9-1: Green system components - product codes
