2.6 BOILER DIMENSIONS
Section 2: Technical DataPage 8
Pre-cut hole
for side flue exit
if required
4 pre-cut
holes 50 mm dia.
in sidesboth
1005
505
800
269
908
117
50
756
824
660
417
179
Plan View
100
180
180
=
=
3 pre-cut holes
76 mm dia. in base
of boiler enclosure

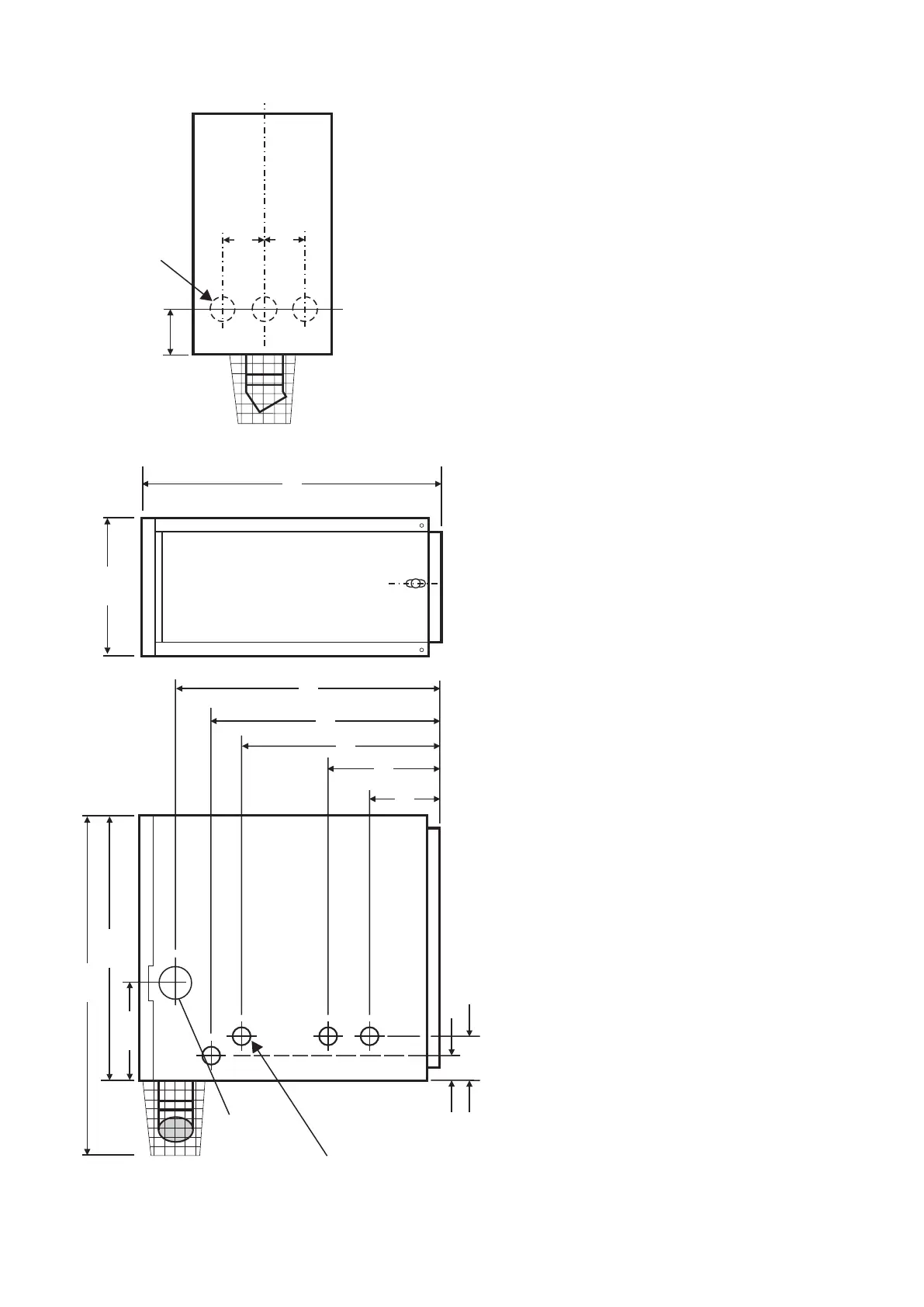

Figure 2-1: Vortex Eco External module dimensions (all models)
