GRAPHTEC CE3000-120 - Drawing Origin Point

4 – 9

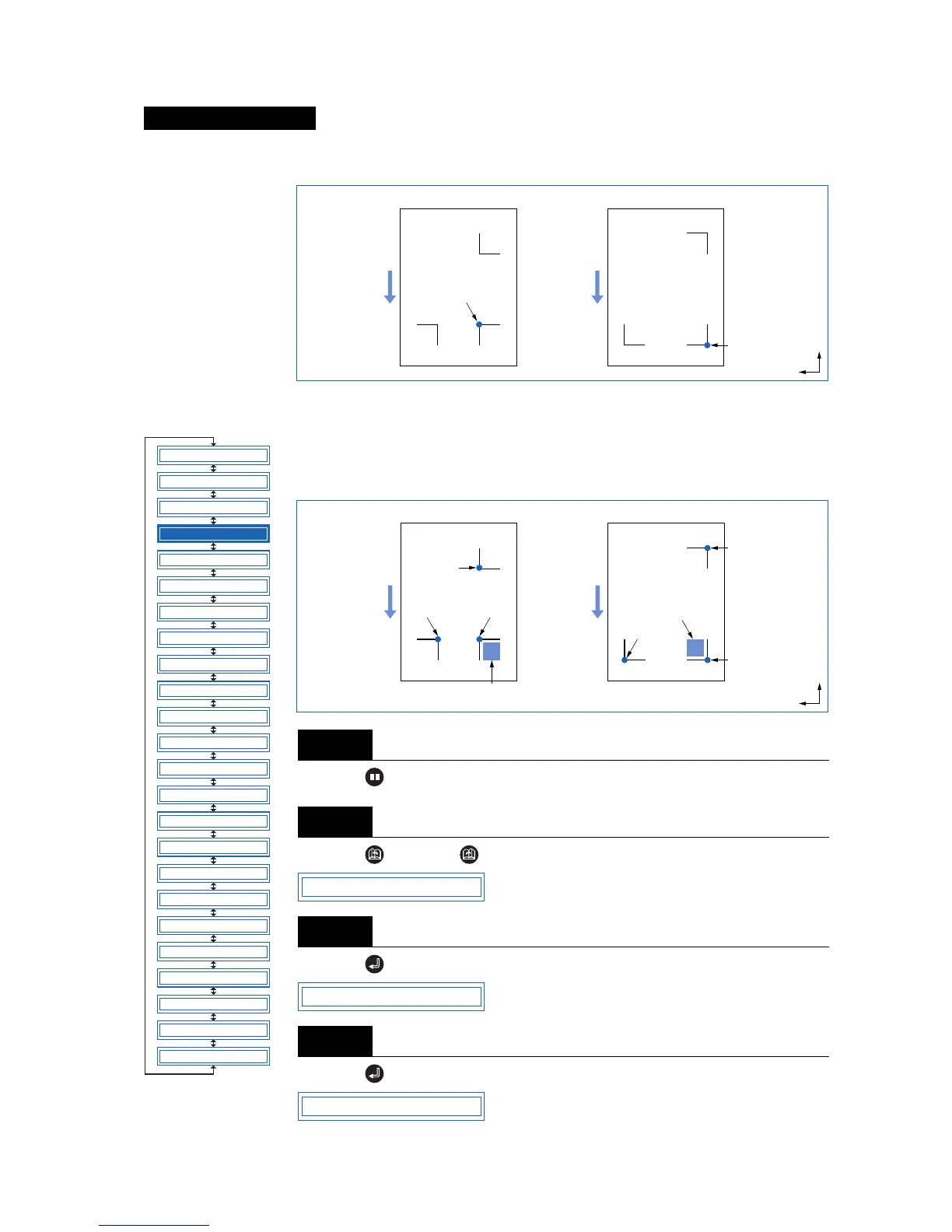

The drawing origin point following reading of the registration marks will be at the bottom-right registration
mark, as shown below.
■ Setting the Registration-Mark Mode
For two-point alignment, the origin and X-axis registration marks are read,
whereas for three-point alignment, the origin, X-axis, and Y-axis for adjustment of
the axis (angle) alignment and distance are read.
Press the (PAUSE) key to switch to PAUSE mode.
Press the (NEXT) or (PREV.) keys until the following menu is displayed.
Press the (ENTER) key to display the Auto Reg. Mark submenu.
Press the (ENTER) key to display the MARK mode settings.
Drawing origin point
Step
1
Step
2
Step
3
Step
4
Registration-mark pattern 1
Medium feed direction
Registration-mark pattern 2
Origin point
Origin point
X
Y
FEED
AUTO PRE FEED
TANGENTIAL
AUTO REG. MARK
CLEAR BUFFER
AXIS ALIGNMENT
DISTANCE ADJUST
PAGE LENGTH
PLOT AREA
EXPAND
ROTATE
COPY
SORT
RS-232C
COMMAND
BLADE WEAR SETUP
PEN UP/DOWN
TEST MODE
PEN UP SPEED
OFFSET FORCE
OFFSET ANGLE
STEP PASS
INIT. DOWN FORCE
LENGTH UNIT
Registration-mark pattern 1
Medium feed direction
Registration-mark pattern 2
Move the cutter blade
within this area.
Point 1
(Drawing
origin point)
Point 2
Point 3
Point 2
Point 1
(Drawing
origin point)
Point 3
Move the cutter blade
within this area.
X
Y
AUTO REG. MARK
MARK MODE
MARK MODE OFF
