15-10

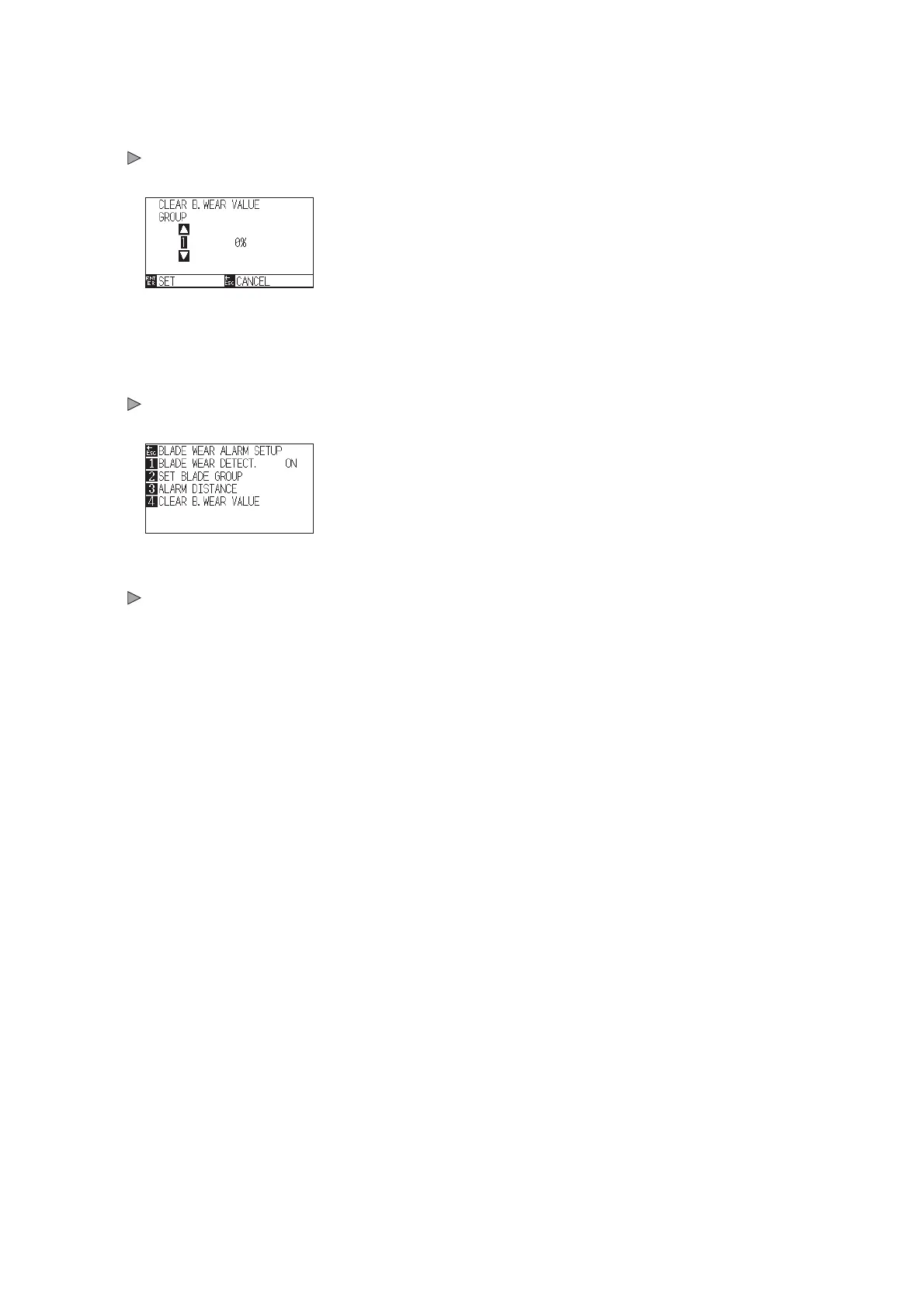

Press the [1] key (Yes, I clear).

CLEAR B. WEAR is cleared, it will return to CLEAR B. WEAR VALUE

GROUP screen.

Press the [ESC] key (CANCEL).

6HWWLQJZLOOEHFRQÀUPHGDQGLWZLOOUHWXUQWR&/($5%:($59$/8(

GROUP screen.

Press the [PAUSE/MENU] key.

It will return to default screen.
