Grasshopper 721D H2 User Manual

36

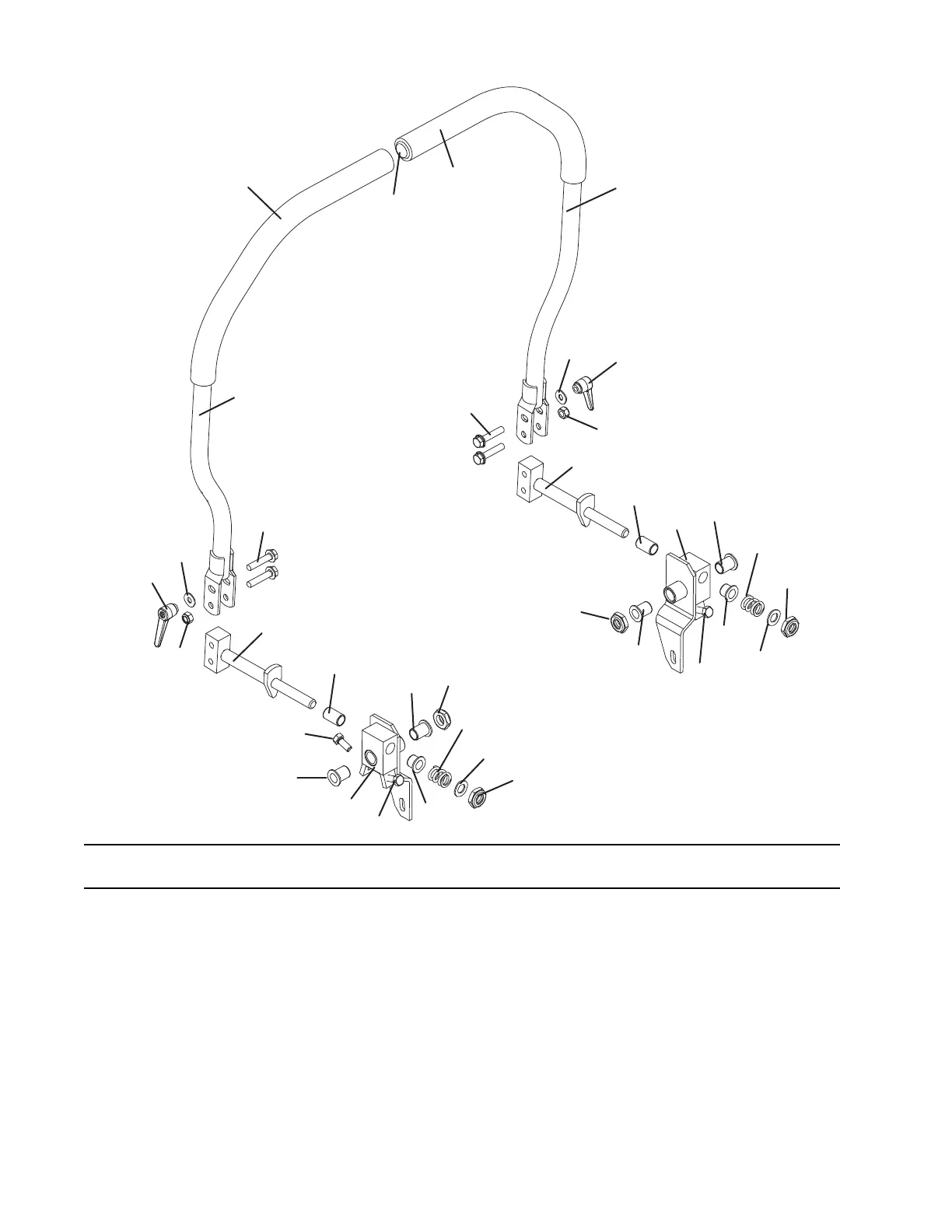

STEERING ASSEMBLY
1 604778 Steering Lever Assembly
(includes item 5 and 6)
2 643926 Steering Lever Mount
3 253195 Hex Whiz Bolt .312-18 x 1.5
4 253450 Nut .312-18 Nylon Insert
5 422179 Handle Grip - Foam
6 422095 Vinyl Cap
7 604771 Steering Pivot Rt. w/Stop & Bearings
8 604772 Steering Pivot Lt. w/Stop & Bearings
9 422559 Bearing w/Flange
10 422557 Bearing
11 257019 Washer .25 Hard
12 257063 Nylon Washer
13 422556 Bearing w/Flange
14 283324 Compression Spring
15 253470 Nut .5-13 Nylon Insert
16 243197 Stop Bolt .312-18 x .75
17 254438 Nut .375-16 Adj. Lever
Item Order Description
No. No.
Item Order Description
No. No.
97023D
1
1
2
2
3
3
4
4
5
5
6
7
8
9
9
9
10
10
9
16
12
12
13
13
14
14
15
15
15
15
16
16
97023D
17
17
11
11
