49
49
5
3
1
6
4
2
GREEN
BLACK
BLACK
PURPLE
GROUND TO ENGINE
FUSE BLOCK
YELLOW/BROWN
C
AB
C
B
A
BLACK
RED
YELLOW

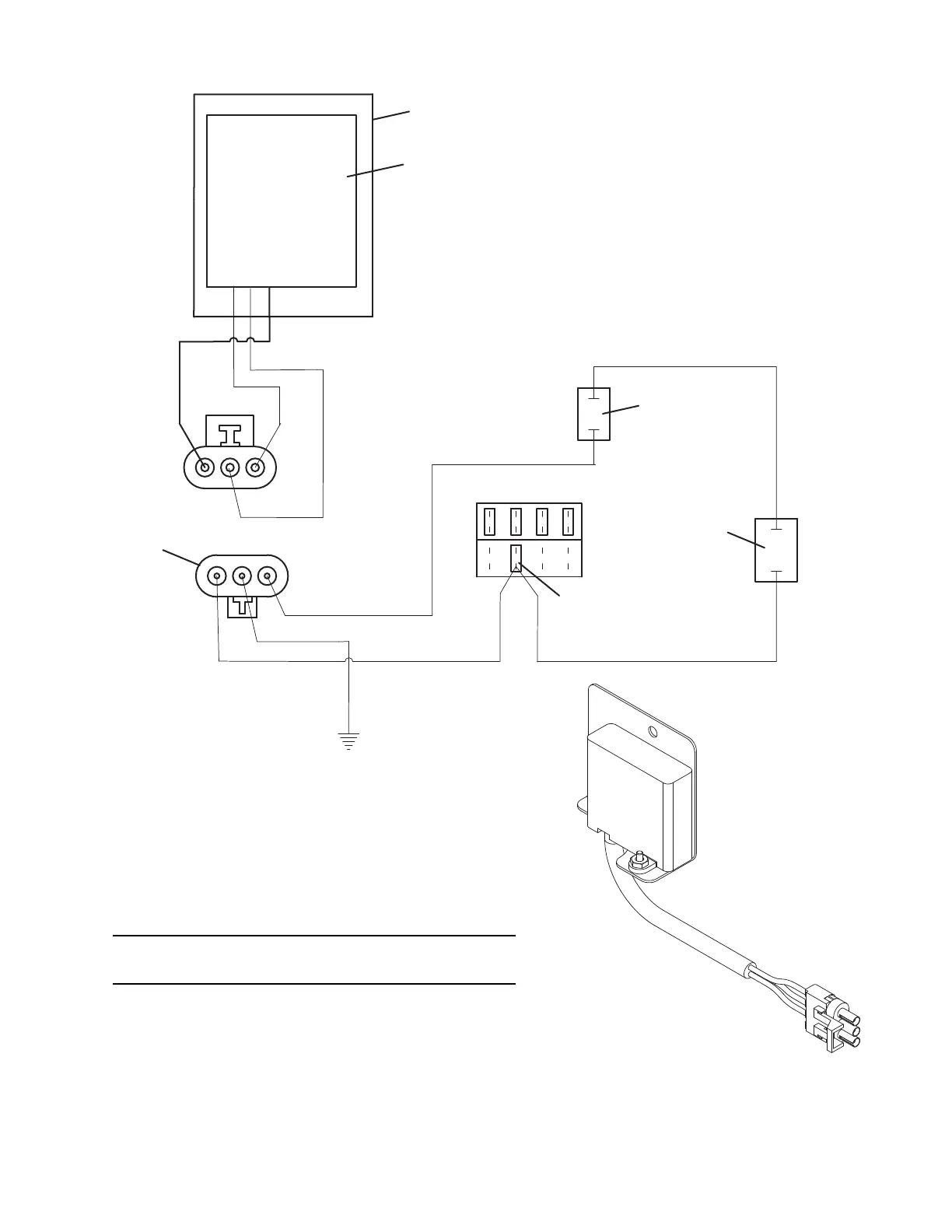

OPTIONAL
HYDRAULIC LIFT
WIRING DIAGRAM
Item Order
Description
No.
No.
1
144950
Hydraulic
Solenoid
2
183710
Tilt
Switch
3
183940
Push Button Switch
4
184973
Weather Pack Connector
5
181460
Accessory Fuse - 7.5 amp Auto
6
722747
Mount - Tilt Switch
48
50
Table of Contents
Table of Contents
3
Specifications
5
Safety Symbols
6
Safety Decals
7
Training
8
Preparation
8
Fuel Handling Safety
8
Operational Safety
9
Maintenance Safety
10
Storing Safely
10
General Information
11
Measurement Conversion
12
Bolt Size and Tightening Recommendations
12
Operation
13
Controls and Switches
13
Prestart Check List
13
Starting the Engine
14
Cold Weather Starting Tips
15
Uneven Terrain
15
Stopping Engine
16
Moving Unit Without Power
16
Steering Lever Operation
17
Lubrication and Maintenance
19
Lubrication
19
Capacities
19
Tire Air Pressure
19
H 2 Drive System
19
Crankcase Oil and Air Filter
19
Cooling System
19
Battery Maintenance
20
Checking Hdrive System Fluid Level
20
Changing Hdrive System Fluid and Filters
20
Adjustments and Troubleshooting
21
Loss of Power in the Hdrive System
21
No Positive Neutral Position
21
Neutral Adjustment
21
H 2 Belt Replacement
21
Fuel Solenoid Adjustment
22
Testing Fuel Solenoid
22
Engine Troubleshooting
22
Engine Removal
23
Wiring Circuit Board Removal
23
Parking Brake Adjustment
23
Clutch Removal/Replacement
24
Clutch/Brake Burnishing
24
Steering Lever Adjustment
24
Foot Rest Block Installation
25
Adjusting Traction Spring Tension
26
Removing Mower Deck from Traction Kit Equipped Tractor
26
Rear Weight Requirements
26
Parts List and Illustration
27
Tractor Assembly
28
Engine Assembly
30
Drive Assembly
32
Drive Linkage Assembly
34
Steering Assembly
36
Reservoir & Hose Assembly
37
PTO Shaft & Clutch Assembly
38
ROPS & Seat Assembly
40
Wiring Diagram
42
Limited Universal Harness
44
Counterweight Mount Kit
45
Tail Wheel Options
46
Traction Kit
48
Optional Hydraulic Lift Wiring Diagram
49
Optional Hydraulic Lift Assembly
50
Standard Universal Harness
52
