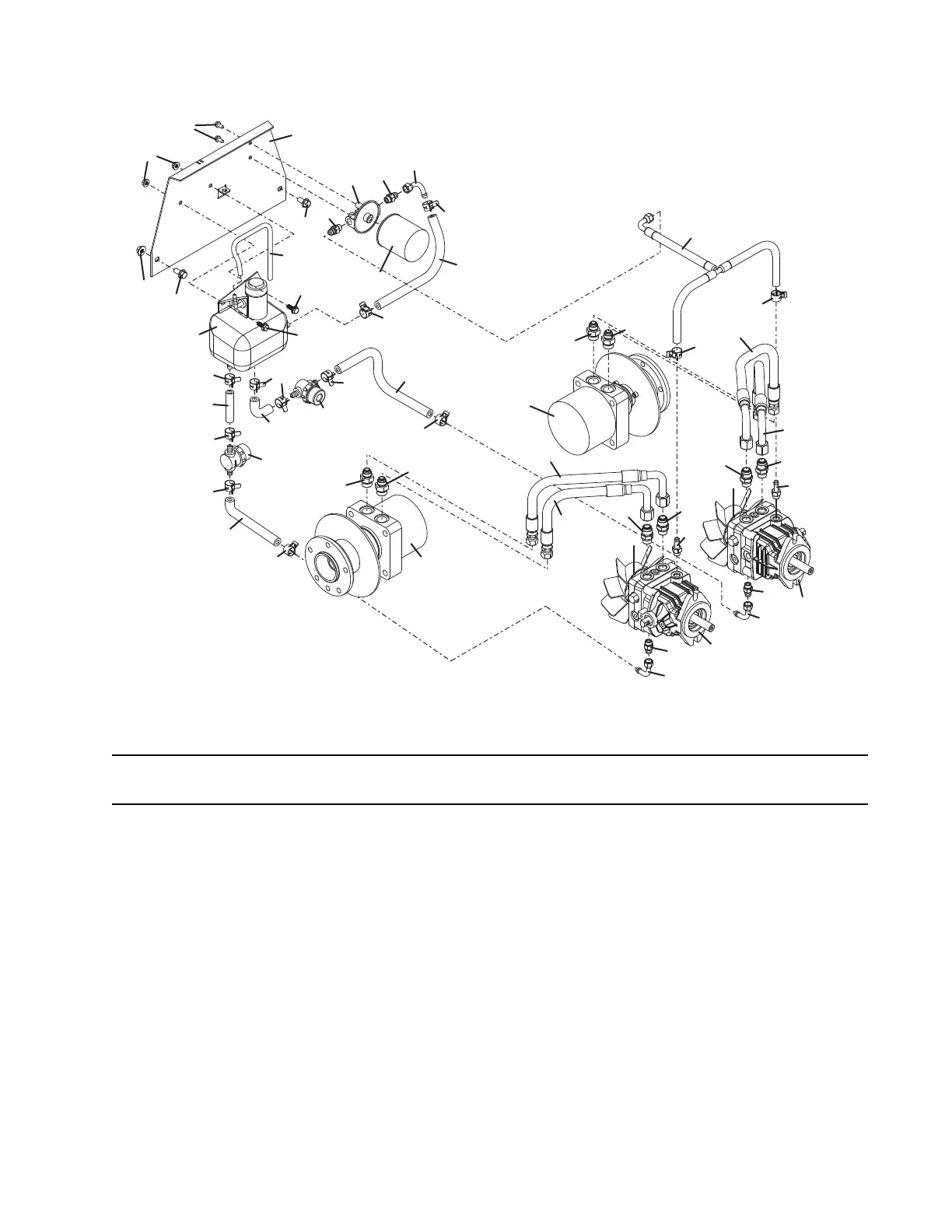

RESERVOIR & HOSE ASSEMBLY
Item Order Description
No. No.
Item Order Description
No. No.
04114
1
8
5
7
6
3
6
11
9
11
12
16
15
10
16
4
4
2
16
13
16
17
15
16
19
19
16
17
16
13
16
14
16
18
18
25
24
23
23
22
19
19
16
26
16
25
24
23
23
22
11
12
21
20
11
12
04114
LEFT
SIDE
RIGHT
SIDE
1 723225 Plate – Filter Base
2 822332 Fluid Reservoir
421990 Cap - Reservoir
3 821724 Clear Vent Hose
4 253192 Whiz Bolt .312-18 x .75
5 253035 Whiz Nut .312-18
6 253200 Whiz Bolt .375-16 x .75
7 253043 Whiz Nut .375-16
8 253173 Whiz Bolt .25-20 x .5
9 101024 Filter Base
10 100855 Oil Filter
11 360057 Adapter 6MJ-6MB
12 363846 Fitting #6 Beaded Stem 90°
13 821792 Hose - .375 Hydraulic 3"
14 821786 Hose - .375 Hydraulic 6.5"
15 821784 Hose - .375 Hydraulic 11.25"
16 280264 Hose Clamp – Spring .375 TOC
17 366551 Strainer – In Line .375
18 603611 Wheel Motor W/Hub
19 360063 Adapter - O-Ring 8MJ/10MB
20 391434 Hydro – H2 Lt.
21 391435 Hydro – H2 Rt.
22 363864 Fitting O-Ring Boss 6-6 MB
23 360064 Adapter - O-Ring 8MB/10MJ
24 424371 Hose Assembly .5 x 15
25 424372 Hose Assembly .5 x 17.5
26 424316 Hose Assembly .375 x 9 x 9.5 x 9.5
