Item Order Description
No. No.
Item Order Description
No. No.

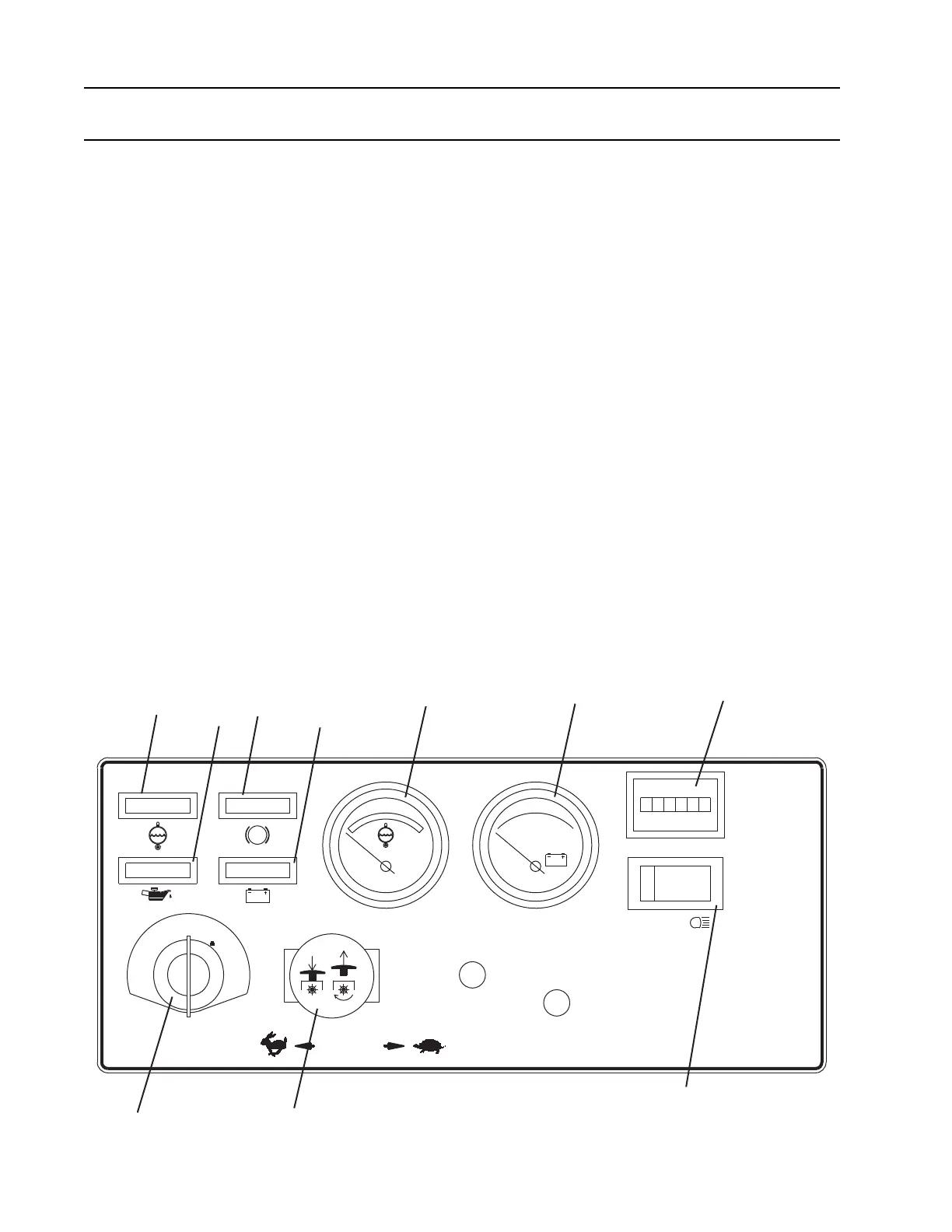

WIRING DIAGRAM
604974 Wiring Assembly - 721D
161131 Decal - Console
1 141160 Coolant Temperature Gauge
2 141200 Voltmeter Gauge
3 182327 Oil Indicator Light
4 182328 Temperature Indicator Light
5 182325 Battery Indicator Light
6 182326 Brake Indicator Light
7 184179 Light Switch
8 183925 Clutch Switch
9 183827 Ignition Switch
10 183860 Safety Switch - Rt. Steering
720160 Rt. Steering Switch Mount
11 183860 Safety Switch - Lt. Steering
720161 Lt. Steering Switch Mount
12 182253 Worklight Assembly
(includes item 13)
13 182005 Light Bulb
14 182251 Bezel
15 603350 Fuel Solenoid
16 184220 Module - Switch Interlock
17 181735 Fuse Holder
181470 Fuse 30 Amp Auto
18 141222 Temperature Sender
19 183871 Seat Safety Switch
20 184272 Relay
21 181722 Fuse Block
184458 1 Wire Clip
184460 2 Wire Clip
184472 Double Clip
22 181470 Fuse 30 Amp Auto
181465 Fuse 15 Amp Auto
181462 Fuse 10 Amp Auto
181460 Fuse 7.5 Amp Auto
23 141551 Hour Meter
24 183894 Brake Switch
25 185530 Voltage Regulator
26 180130 Battery - 12V
243309 Bolt .375-16 x .375 Washer Head
644163 Battery Box
644478 Battery Box Lid
754135 Battery Hold Down Bracket
27 180313 Battery Cable 14"
425219 Battery Terminal Boot
28 180276 Ground Cable 16"
29 423690 Spacer - PC Board Support
93047 / 01-06055
Rev. 02-07
42
VOLTS
P
9
8
23
7
1
2
93047
THROTTLE
FAST SLOW
OIL
BRAKE
BATTERY
TEMP
ENGAGE
OUT TO
PTO CLUTCH
PULL
HOURS
LIGHTS
OFFON
6
5
S
t
a
r
t
e
r
S
w
i
t
c
h
S
t
a
r
t
C
o
n
t
a
c
t
P
r
e
h
e
a
t
4
3
To Next Page
