Grasshopper 723T User Manual

37

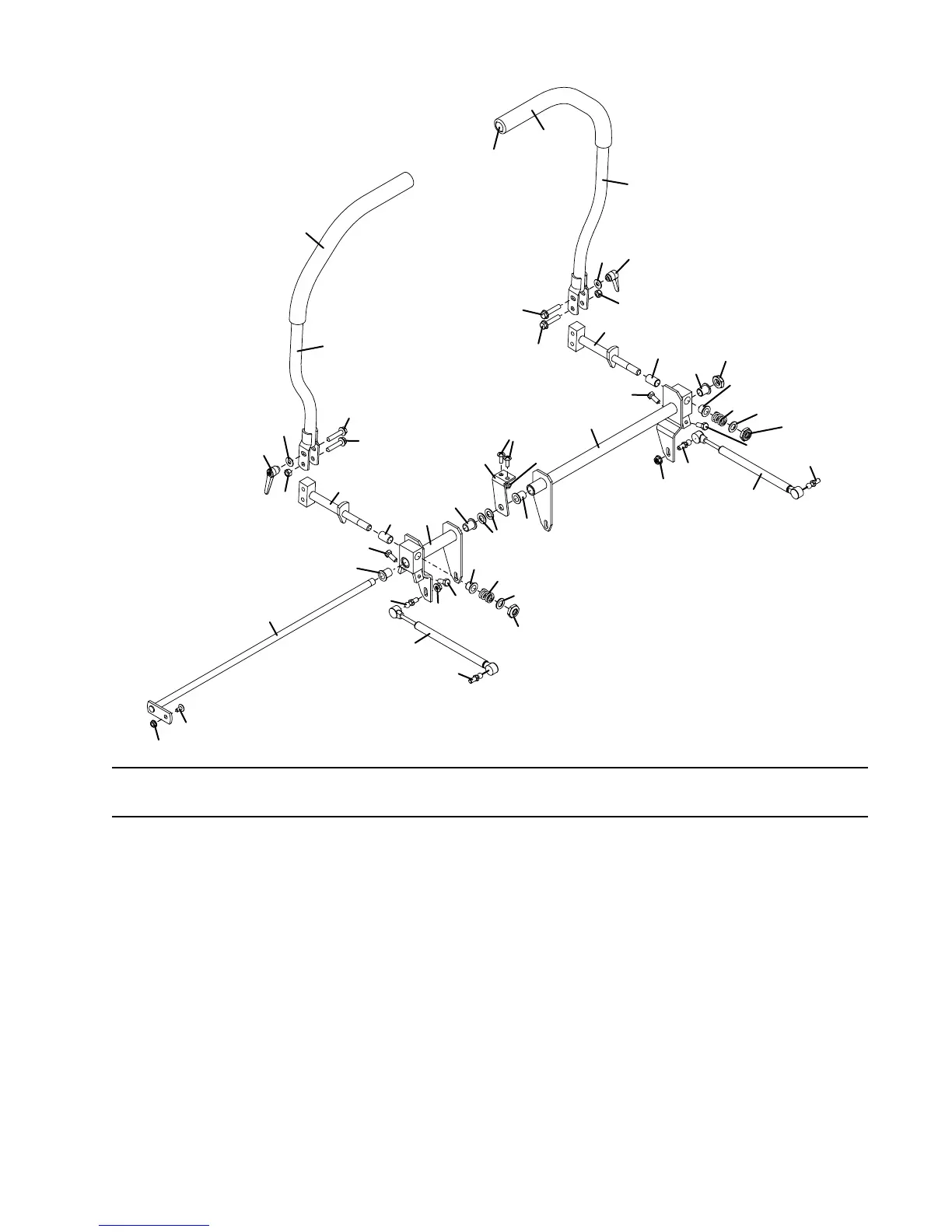

STEERING ASSEMBLY
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
07065A
Rev. 08-07
1 604778 Steering Lever Assembly
(includes items 5 & 6)
2 643926 Steering Lever Mount
3 253195 Whiz Bolt .312-18 x 1.5 Hex
4 253035 Whiz Nut .312-18
5 422179 Handle Grip - Foam
6 422095 Vinyl Cap
7 604832 Pivot w/Stop & Bearings Rt.
(includes items 9, 10, 23 & 24)
8 604833 Pivot w/Stop & Bearings Lt.
(includes items 9, 10, 23 & 24)
9 422559 Sleeve Bearing w/Flange
10 243197 Stop Bolt .312-18 x .75
11 257063 Nylon Washer
12 283324 Compression Spring
13 253470 Nut .5-13 Nylon Insert
14 644601 Steering Pivot
15 253179 Whiz Bolt .25-20 x .75 Truss
16 253025 Whiz Nut .25-20
17 285032 Damper with Ball Socket
18 265680 Ball Stud
19 729404 Support – Steering Rod
20 254438 Nut .312-16 Adjustable Lever
21 257019 Washer .25 Hard
22 253450 Nut .312-18 Nylon Insert
23 422557 Sleeve Bearing
24 422556 Sleeve Bearing w/Flange
1
1
2
2
3
3
3
3
4
4
5
6
5
7
8
9
9
23
9
24
9
23
10
10
10
11
11
12
13
13
10
12
13
17
18
18
14
15
16
17
18
18
16
15
19
20
21
22
20
21
22
07065A
24
11
