Grasshopper 723T User Manual

40
1 604366 Dual Fork With Nut
2 243922 Bolt .625-11 x 14
3 253970 Lock Nut .625-11
4 902425 Axle Spacer
5 604595 Pivot Housing - Rear Dual Fork
(includes items 18 & 32)
6 125855 Seal
7 122522 Tapered Bearing
8 123522 Bearing Cup
9 122523 Bearing Taper
10 123521 Bearing Cup
11 257320 Washer - Spring
12 254505 Jam Nut .75-16 Nylon Toplock
13 604596 Pivot Housing - Rear Fork
(includes items 18 & 32)
14 481434 Dust Cap
15 253243 Whiz Bolt .5-13 x 1
16 257061 Washer .5 x 2.25
17 833275 Oilite Bearing Reamed
18 243334 Bolt .375-16 x 1.25 Grade 8
19 824508 Axle Beam W/Bushing - Dual
20 830420 Spacer .375 x 1.156
21 483865 Wheel & Tire Assembly
13 x 6.5 x 6 w/Bearing & Spacer
482355 Tire 13 x 6.50 x 6
483306 Wheel without Tire 6 x 4.5
22 902475 Bearing Spacer
23 120050 Wheel Bearing
24 247725 Bolt .625 x 7 Carriage
25 604365 Rear Fork With Nut
26 282615 Spacer .375 x 1.031
27 125855 Seal
28 604597 Rear Axle Pivot
(includes items 18 & 32)
29 824510 Axle Beam W/Bushing
30 902427 Axle Spacer
31 723008 Bolt Lock
32 257412 Lock Washer .375
33 481432 Dust Cap
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.

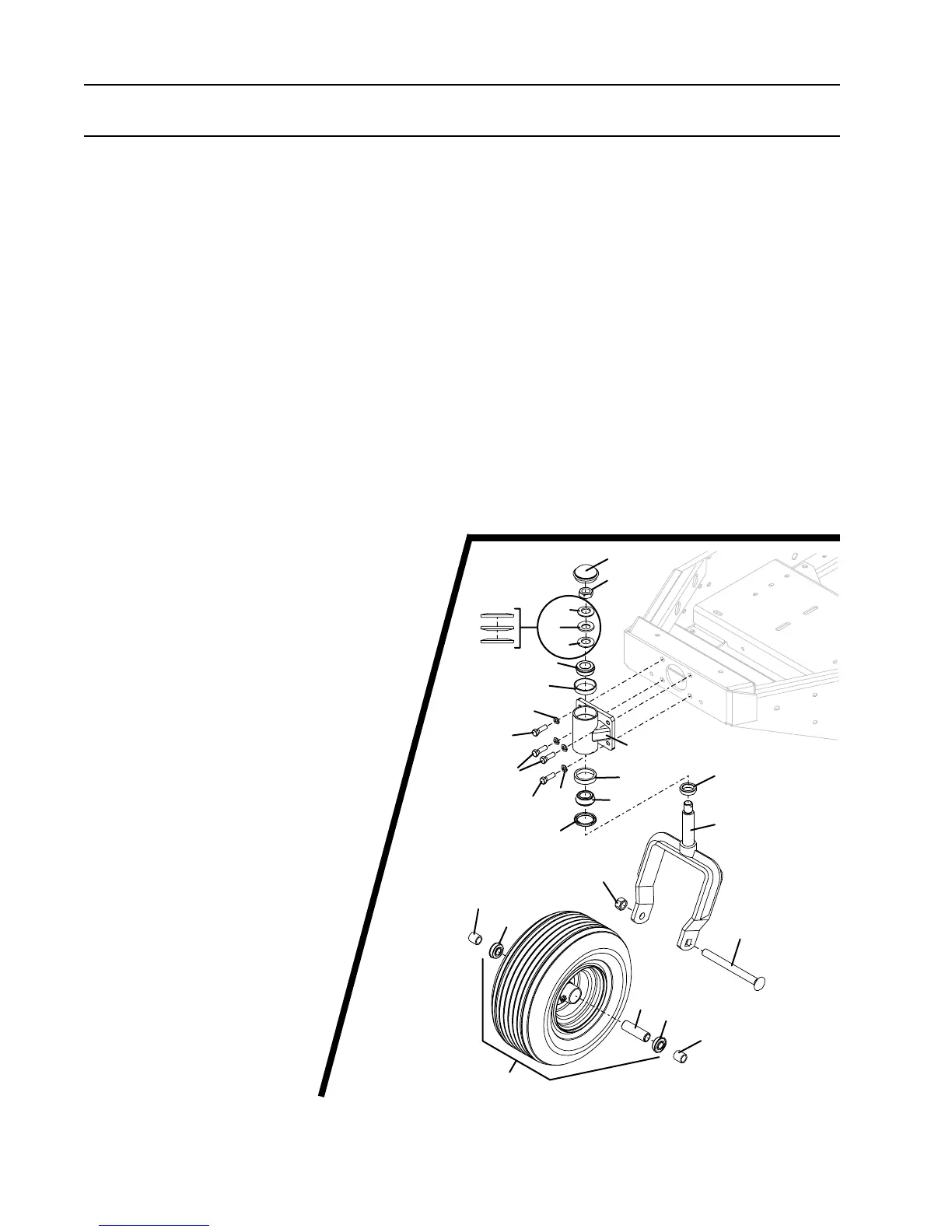

TAIL WHEEL OPTIONS
01089A / 01090A / 01091A / 01092A
21
4
23
22
23
4
24
3
25
26
27
7
8
13
32
18
18
18
32
8
7
12
14
01089A
11
11
11
