Grasshopper 723T User Manual

38
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
WIRING DIAGRAM
604967 Wiring Assembly
161128 Decal - Console
1 183806 Ignition Switch
254498 Nylon Nut - Ignition Switch
2 182326 Brake Indicator Light
3 182327 Oil Indicator Light
4 184179 Light Switch
5 183925 Clutch Switch
6 183860 Safety Switch - Rt. Steering
720160 Rt. Steering Switch Mount
7 183860 Safety Switch - Lt. Steering
720161 Lt. Steering Switch Mount
8 183871 Seat Safety Switch
9 182253 Worklamp Assembly
(includes item 10)
10 182005 Light Bulb
11 182251 Bezel
12 181735 Fuse Holder
181470 Fuse 30 Amp. Auto
13 184271 Relay w/Mount
14 180315 Battery Cable 16"
425219 Battery Terminal Boot
15 180276 Ground Cable 16"
16 180125 Battery - 12V
17 181722 Fuse Block
184458 1 Wire Clip
184460 2 Wire Clip
184472 Double Clip
18 181470 Fuse 30 Amp. Auto
181462 Fuse 10 Amp. Auto
181460 Fuse 7.5 Amp. Auto
19 141551 Hour Meter
20 183894 Brake Switch
21 423690 Spacer - PC Board Support

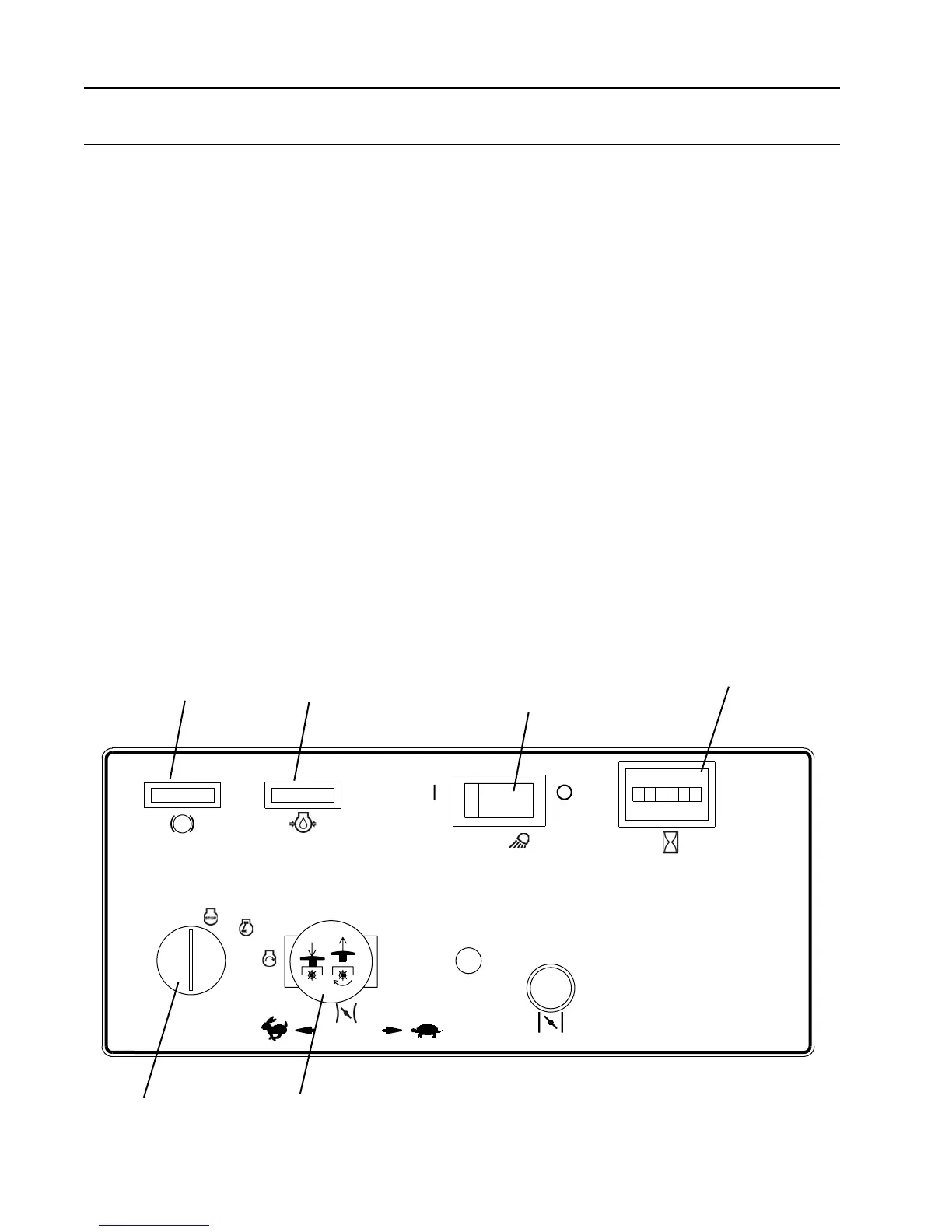

93046A / 03066D
93046A
P
THROTTLE
FAST SLOW
OIL
BRAKE
ENGAGE
OUT TO
PTO CLUTCH
PULL
CHOKE
HOURS
LIGHTS
OFF
ON
OFF
START
RUN
IGNITION
1
5
19
3
4
2
