of the frame and, after fine-tuning the centre of gravity, secure it
against falling with an additional Velcro strip.

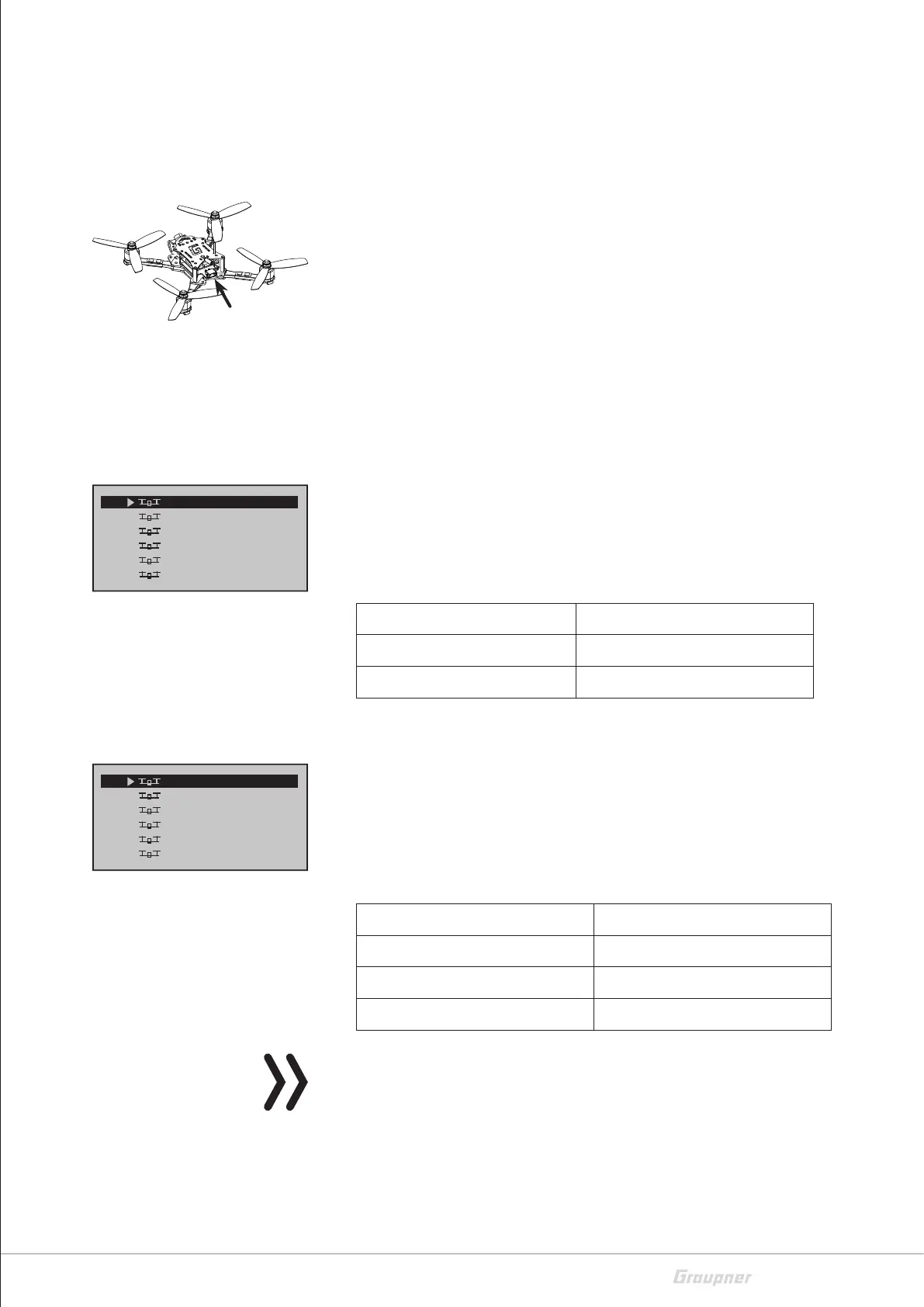

Connecting the LiPo battery
To start up the copter, plug the connector of the main battery into
the corresponding socket on the back of the copter and remove it
again after setting the flight mode.
Determining the centre of gravity
Hold the copter in the middle of the upper frame with two fingers
and lift it up. The copter should take a horizontal position. Other-
wise, move the battery accordingly.
Default model memory
• The kits 16570.RTF and 16572.RTF are delivered with the trans-
mitter Graupner mz-12 Pro HoTT.
In accordance with the type of copter included in the set, the
supplied transmitter is already linked to a preprogrammed model
memory in both cases.
No. / Copter model Suitable sample memory
16570.RTF / Alpha 170Q Alpha 170 (Alpha 110)
16572.RTF / Alpha 220Q Alpha 170 (Alpha 110)
• The kits 16570.FPV, 16570.HoTT and 16572.FPV are delivered
without HoTT transmitter.
The optional Graupner mz-12 Pro HoTT transmitter already con-
tains preprogrammed pattern memory. More are available for
download on the respective product page at www.graupner.de.
With the help of the option „Model memory“ of the PC program
„Firmware_Upgrade_gr_studio“ these sample programs can be
transferred to the transmitter.
No. / Copter model Suitable sample memory
16570.FPV / Alpha 150Q Alpha 150 (Alpha 110)
16570.HoTT / Alpha 170Q 3D Alpha 1703D (Alpha 300)
16572.FPV / Alpha 220Q Alpha 110 / 150 / 170
Note
In both cases, it is recommended not to use the pre-programmed
model memory directly, but to copy it into a free model memory in
accordance with the transmitter manual and then rename it accord-
ingly.
06
07
08
VersaCopt
Alpha 150
Alpha 170
Xcell 220
05
04
09 Alpha 1703D
–––
Hornet250
03
04
05
Hornet250
Alpha 300
Xcell 220
Alpha 150
02
01
06 VersaCopt
–––
Alpha 110
