20 / 52
S1019_S1034_S1035_33579_33583_FW2_DE_V1.0sh
The receiver-specific connection is suitable for connecting telem-
etry sensors. When the receiver is switched on, previously con-
nected devices are automatically detected.

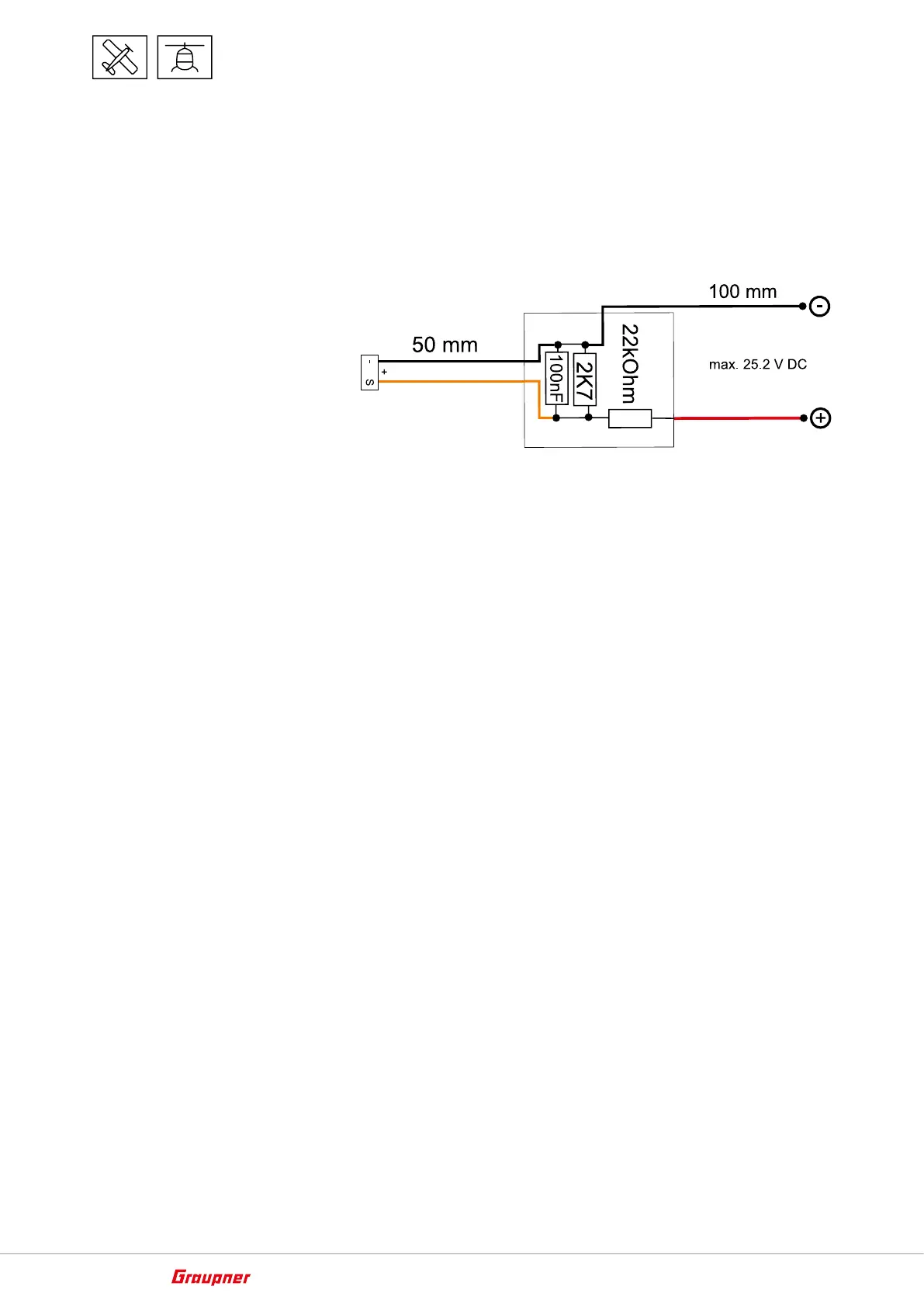

• VOLTAGE
After switching through this connection port as described before,
a DC voltage of max. 25,5 V can be displayed instead of the
receiver voltage. This way it is possible to monitor the main bat-
tery voltage without using external sensors.
