Possible errors:
•
The Trainer interface in the Pupil transmitter, which
replaces the RF module, is not connected correctly
•
The Pupil transmitter is not ready for use
• The Pupil transmitter is not set to PPM mode
• The Trainer lead is not properly connected
Appendix
Trainer mode operations with the mx-16s transmitter
Trainer leads:
4179.1 for Trainer mode operations
with the mx-16s in combina-
tion with any GRAUPNER
transmitter fi tted with a DSC
socket.
3290.8 Trainer lead for use with an
mx-16s Student transmitter
and a GRAUPNER Teacher
transmitter with opto-electro-
nic Teacher socket.
3290.7 Trainer lead for use with
an mx-12 or mx-16s
Teacher transmitter and a
GRAUPNER Student trans-
mitter with opto-electronic
Pupil socket
For detailed information about the
opto-electronic modules for the Tea-
cher and Pupil transmitters listed on
this page, please refer to the opera-
ting instructions supplied with your
transmitter, or the main GRAUPNER
FS catalogue.

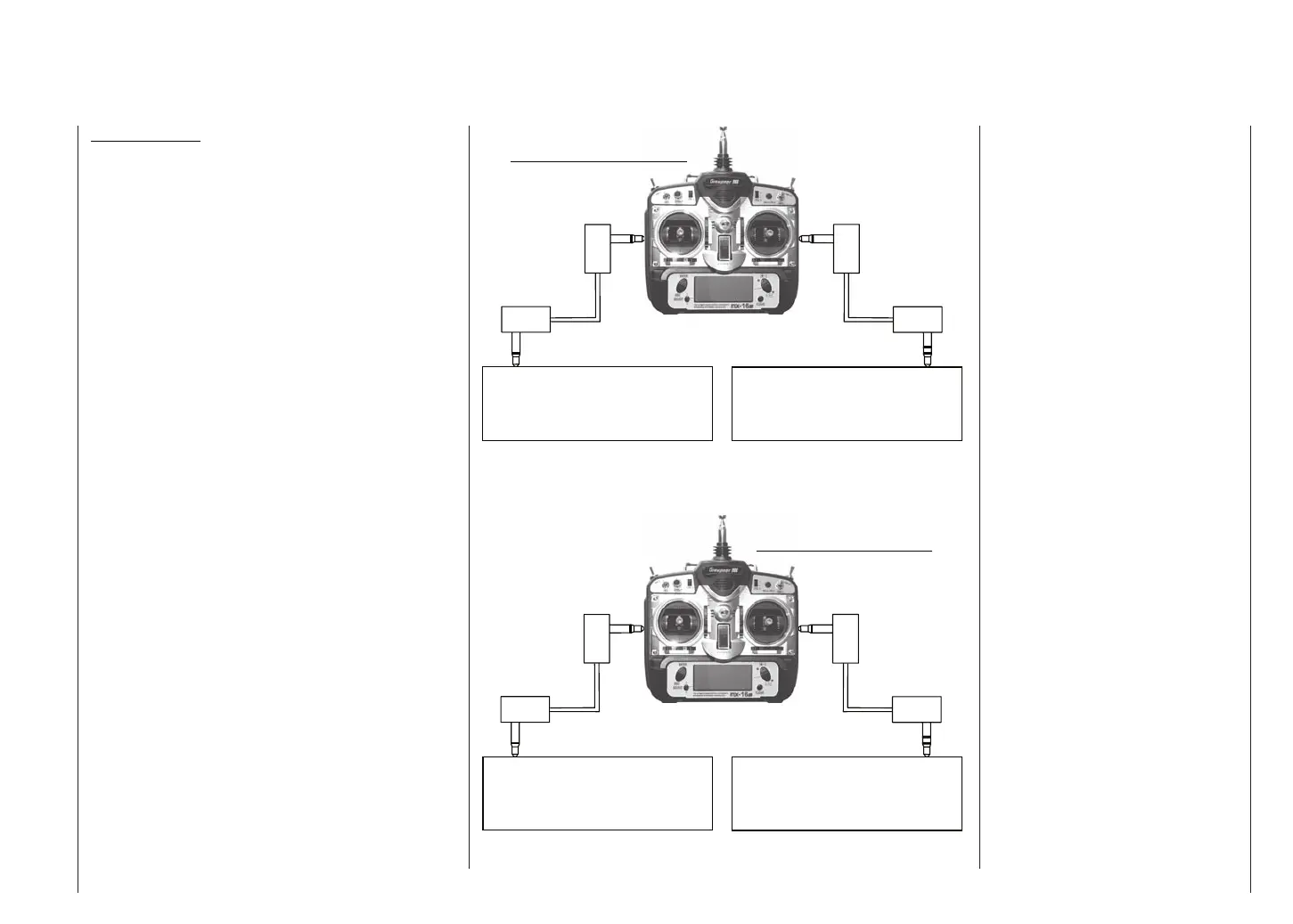

Student transmitter
with DSC socket
Student transmitter with Stu-
dent module, Order No.
3290.3,
3290.10, 3290.33 using the opto-
electronic system
Trainer lead,
Order No. 4179.1
Trainer lead,
Order No. 3290.7
D 14, FM 414, FM 4014, FM 6014,
mc-10 ... mc-24, mx-22
Teacher transmitter
with DSC socket
Student transmitter with Stu-
dent module, Order No. 3290.2,
3290.19, 3290.22 using the opto-
electronic system
mx-12, mx-16s mc-19 to mc-24, mx-22
Trainer lead,
Order No. 4179.1
Trainer lead,
Order No. 3290.8
S
M
mx-16s Teacher transmitter
mx-16s Student transmitter
mx-12, mx-16s, mx-22 and – if fi t-
ted with the DSC socket, Order
No. 3290.24 – mc-19, mc-22s und
mc-24
Trainer system
