13 / 28
S1005_S1006_jp_V1

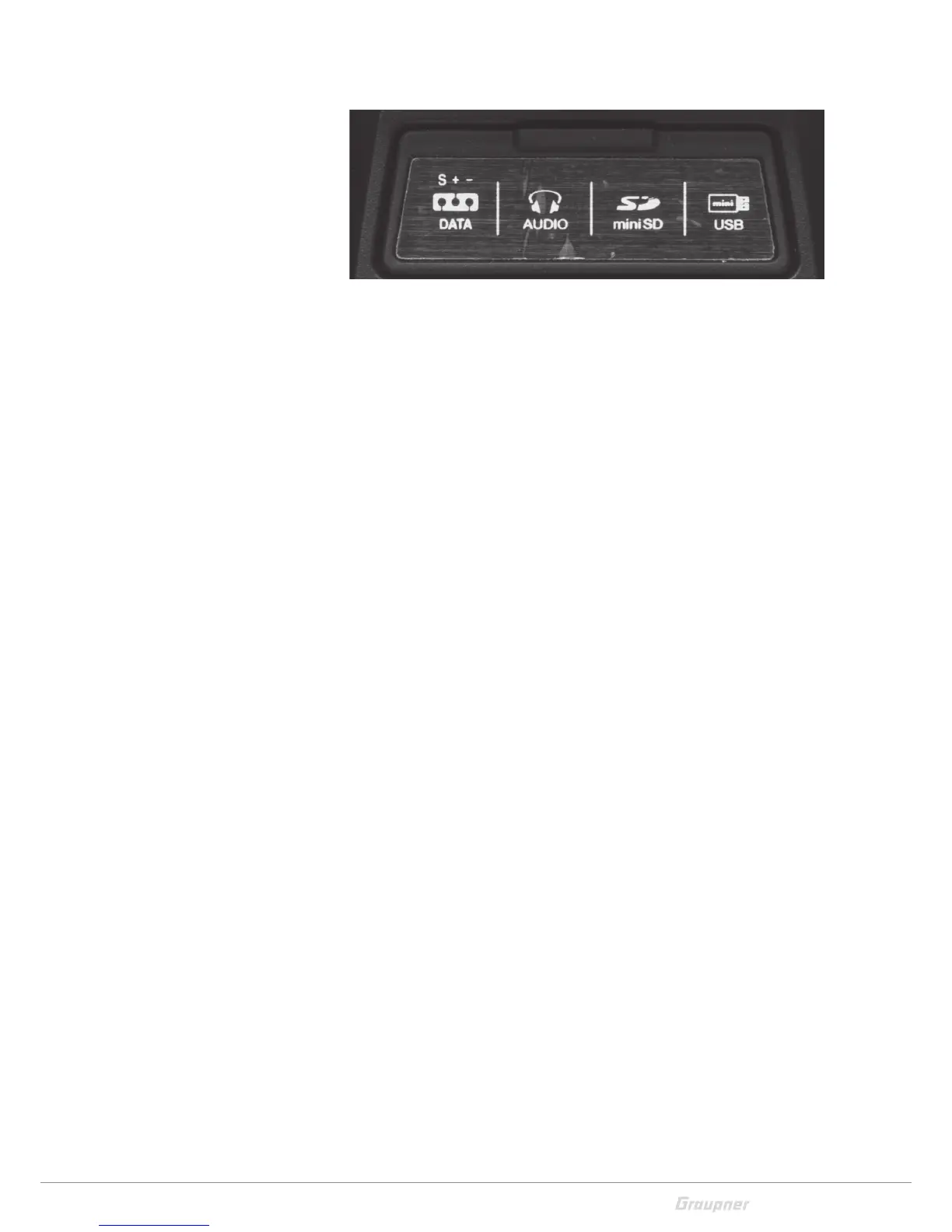

Connection on the back side
Data socket
The data socket is suitable for connection of an optional smart
box.
You can find accessories on www.graupner.de.
Ear phones port
Though this interface both acoustic signals and voice messages
are emitted.
The volume can be controlled by "Voice volume" and "Signal vol-
ume" in the general settings.
Card slot
The card slot is suitable for micro SD memory card.
Micro SD cards up to 2 GB and micro SDHC up to 32 GB are
compatible memory cards.
Our recommendation: For a normal use a memory card with a
storage capacity of up to 4 GB is sufficient.
Inserting and removing the memory card step by step:
Switch off the transmitter.
The memory card slot is located over the battery case under the
back side cover of the transmitter.
To insert:
Push the SD card as deep as you need to win the spring resis-
tance of the slot.
To remove:
Push the SD card slightly toward the card slot to unlock it and
then remove it.
The included memory card is ready for use as soon as the trans-
mitter is switched on. In the display appears the symbol of a
memory card.
