L-SOLUTION 700 / 800 / 900 machines . 12
First contact

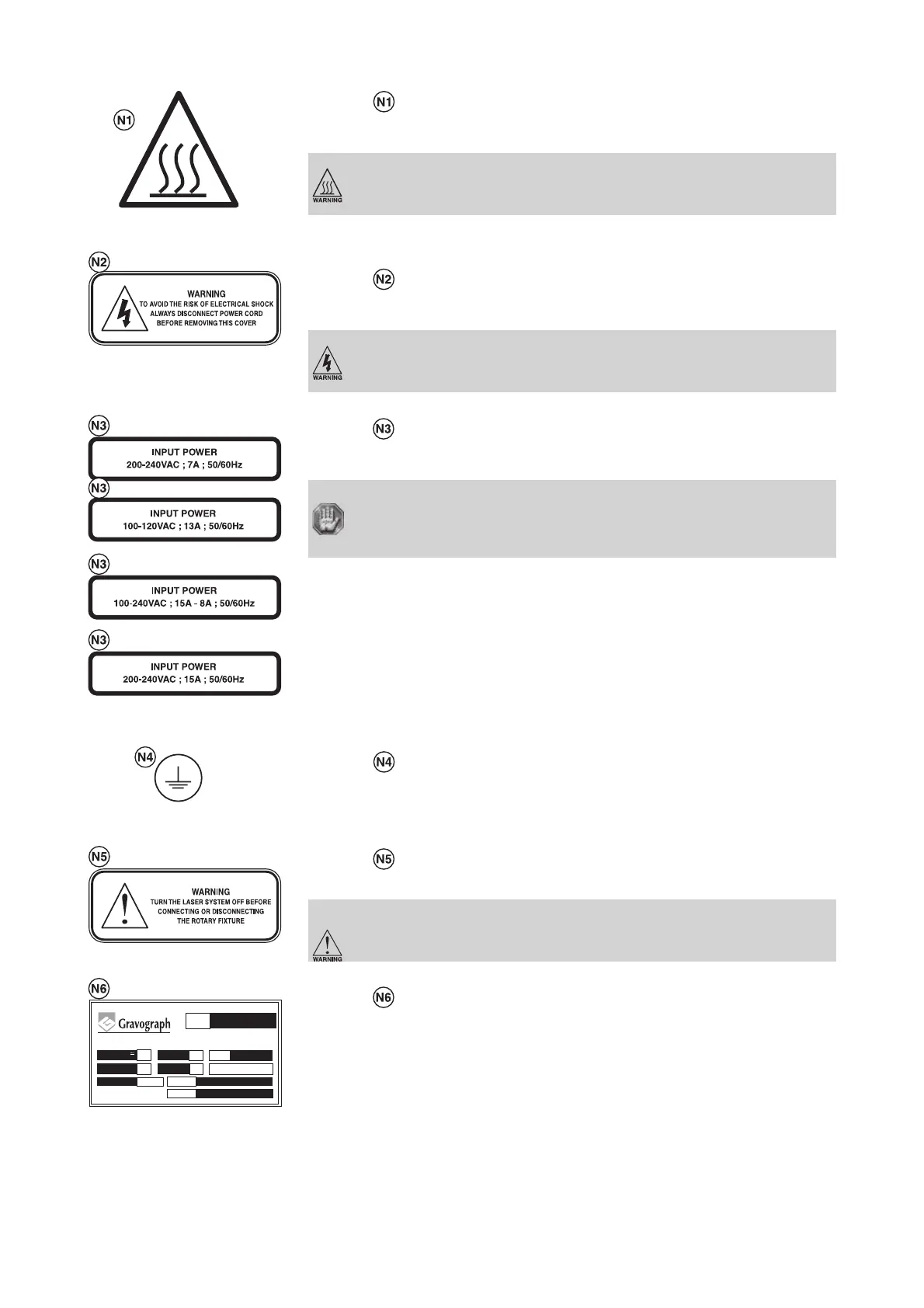

1 label :
On motor Y guard ( on bridge X on the right). Visible from the outside in normal operating conditions when in front
of the machine.
To avoid all risk of being burned do not touch the guard.
1 label :
One is on the back of the LASER machine next to the plug receptacle. Visible from the outside under normal operating
conditions when viewed from the backside of the system.
WARNING.
To avoid any risk of electrical shock, always disconnect the power
cord before removing this cover.
1 label :
On the left back side of the LASER machine and next to the plug receptacle. Visible from the outside under normal
operating conditions.
Electrical power supply :
LASER 10/20W :200-240 V (VAC) ; 7A ; 50-60 Hz
or 100-120 V (VAC) ; 13A ; 50-60 Hz
LASER 25/30/40W :100-240 V (VAC) ; 15A-8A ; 50-60 Hz
LASER 60/80W :200-240 V (VAC) ; 15A ; 50-60 Hz
1 label :
Inside the LASER system's power supply cover next to the chassis ground green wire. Not visible under normal
operating conditions. Visible only when cover is removed for maintenance only.
1 label :
Next to the cylinder attachment connector. Visible under normal operating conditions.
WARNING.
Turn the LASER system off before connecting or disconnecting the
cylinder attachment (rotary fixture).
1 label :
On the rear side of the LASER system on the right when viewing the machine from the rear. Visible under normal
operating conditions.
CE
06/01
TYPE
CLASSE 1
S1
Service
N° Ser.
000000/0601
7
A
Hz
50/60
/mn
W
V
20W
200-240
10600 La Chapelle Saint Luc FRANCE
1300
LS 800
LASER 10W/20W
or
LASER 25W/30W/40W
LASER 60W/80W
LASER safety
