Unit MAIN
TENANCE
59

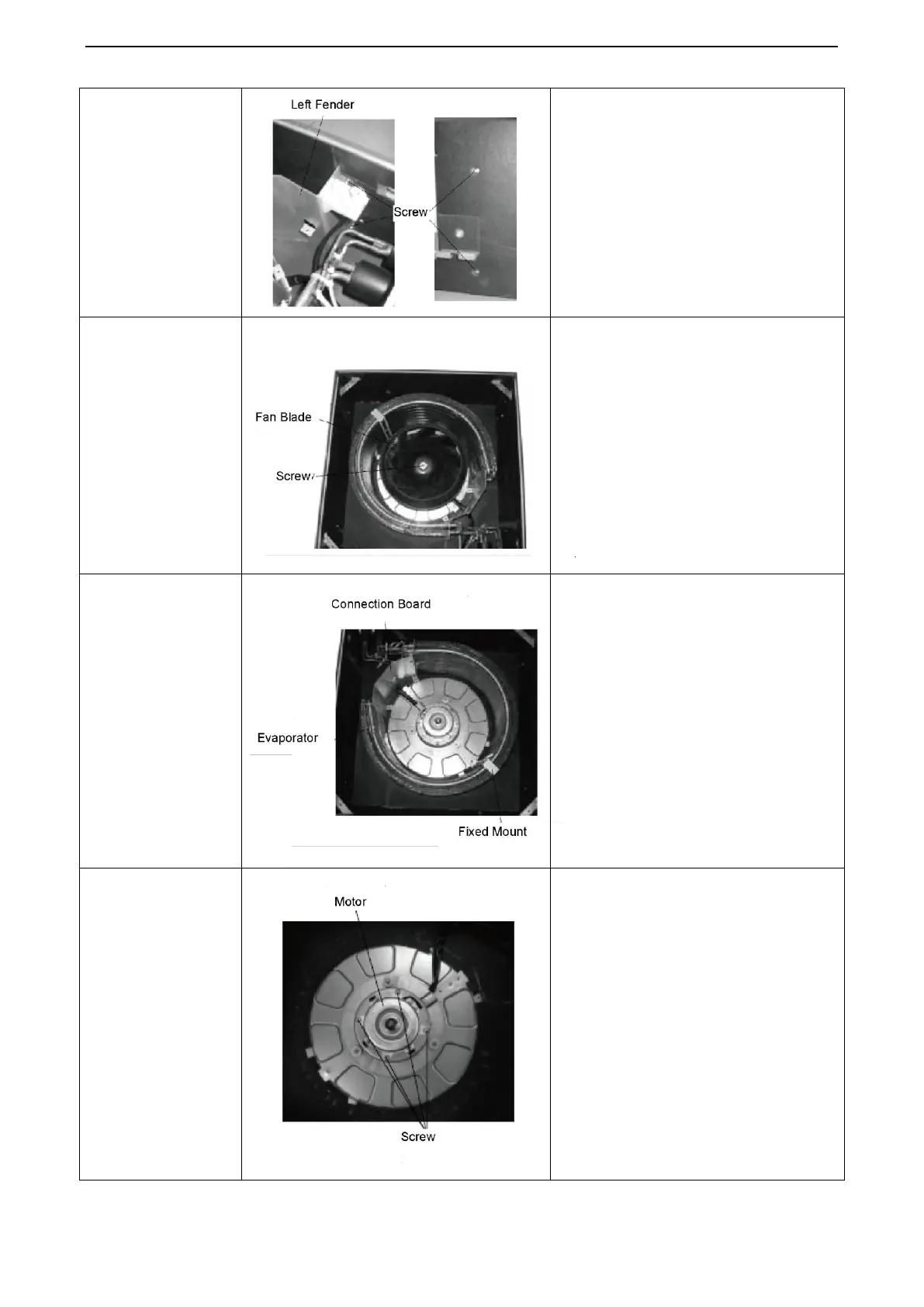

⑦
Dis
assemble the
left fender
Loosen two screws on the left fender and
then take it out upward.
⑧
Dis
assemble the
fan blade
Loosen the
screws on the fa
n blade an
d then
take it out.
⑨
Dis
assemble the
evaporator
Loosen the screws on the connection board
and the fixed mount of the evaporator, and
then remove them away, after that, take the
evaporator out.
⑩
Dis
assemble the
motor
Loosen four screw
s fixing the motor and take
the motor out.
60
62
Table of Contents
Table of Contents
2
Ⅰproduct
3
Models List
4
Nomenclature of the Unit
6
Function
6
Product Data
7
Ⅱcontrol
24
Wireless Remote Controller
25
Yb1F2(X-Fan)
25
Guide for Operation-General Operation
28
Guide for Operation-Optional Operation
28
Introduction for Special Function
28
Changing Batteries and Notices
29
Yb1Fa(X-Fan)
30
Operation of Wireless Remote Control
32
Changing Batteries and Notices
33
Wired Remote Controller
34
Introduction to Z5K351(Optional)
34
Introduction to Z4E351B (Optional)
35
Symbols on the LCD
35
Introduction to the Functions of the Press Keys
36
Ⅲ Unit Installation
38
Selection the Mounting Position
39
Ceiling Opening and Suspension Bolt (M L0) Pitch Flemension
40
Drainage Pipe
40
Precautions for Drainage Raising Pipe
41
Instruction
42
Electric Wiring
43
Wiring of Unit and the Controller
44
Wiring of the Unit
44
Installation of Panel
45
Precautions
46
After Fixing be Sure no Gap Left between the Ceiling and the Panel
47
Ⅳ Unit MAINTENANCE
48
Troubleshooting
49
Care and Maintenance
49
Wiring Diagram
53
Disassembly and Assembly Procedure of Main Parts
56
Exploded Views and Spare Part Lists
62
