GREE GMV5 INDOOR UNIT SERVICE MANUAL
100

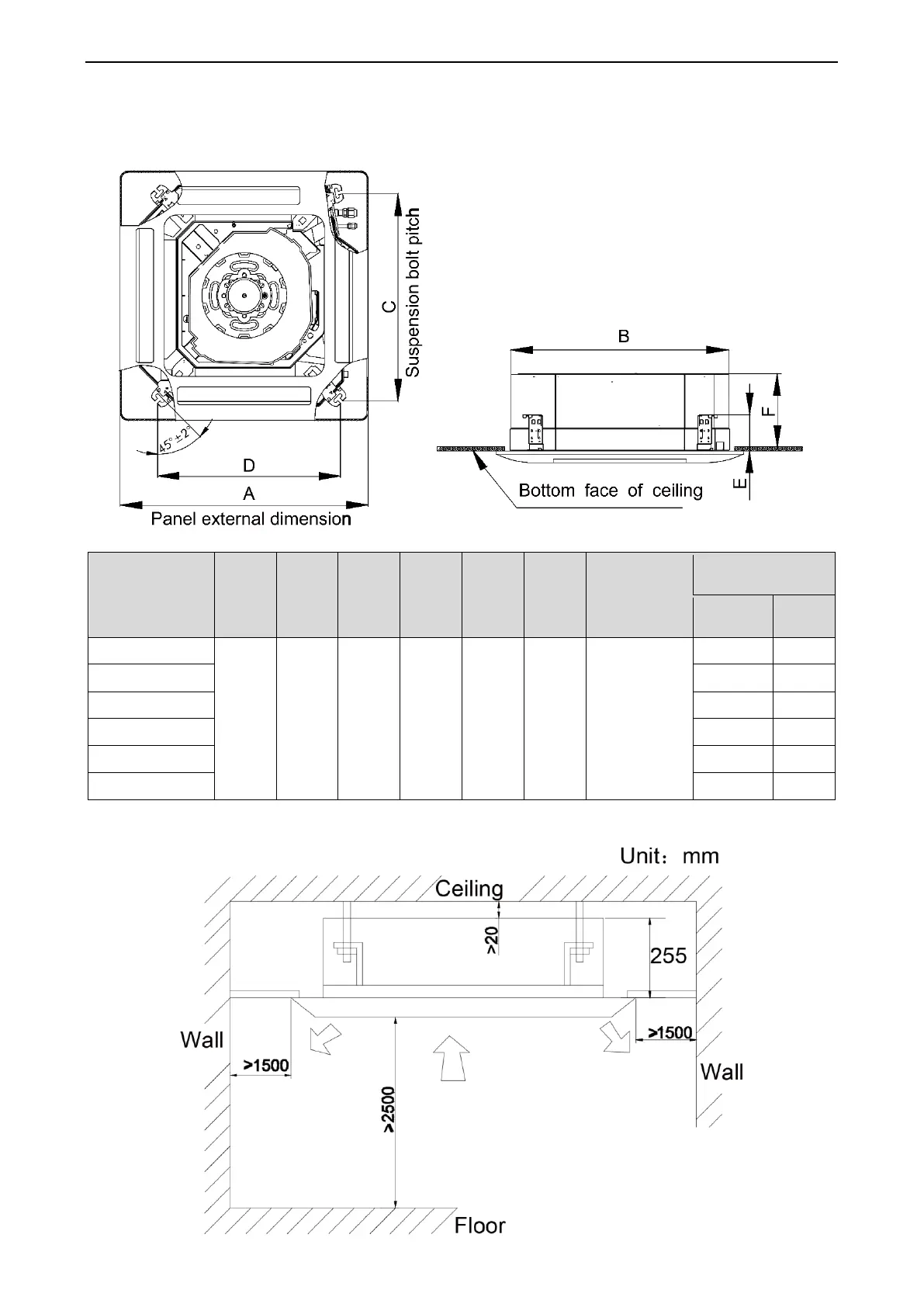

3.5 Installation of Compact 4-way Cassette Type unit
3.5.1 Outline and installation dimension
Model
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
Drainage
Pipe(Outer
Diameter× wall
thickness) (mm)
Outer Diameter of
Connection Pipe(mm)
Liquid pipe
Gas pipe
GMV-ND22T/B-T
670
596
600
571
145
240
Ф25×2. 5
6.35
9.52
GMV-ND28T/B-T
6.35
9.52
GMV-ND36T/B-T
6.35
12.7
GMV-ND45T/B-T
6.35
12.7
GMV-ND50T/B-T
6.35
12.7
GMV-ND56T/B-T
9.52
15.9
3.5.2 Installation space
