Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure

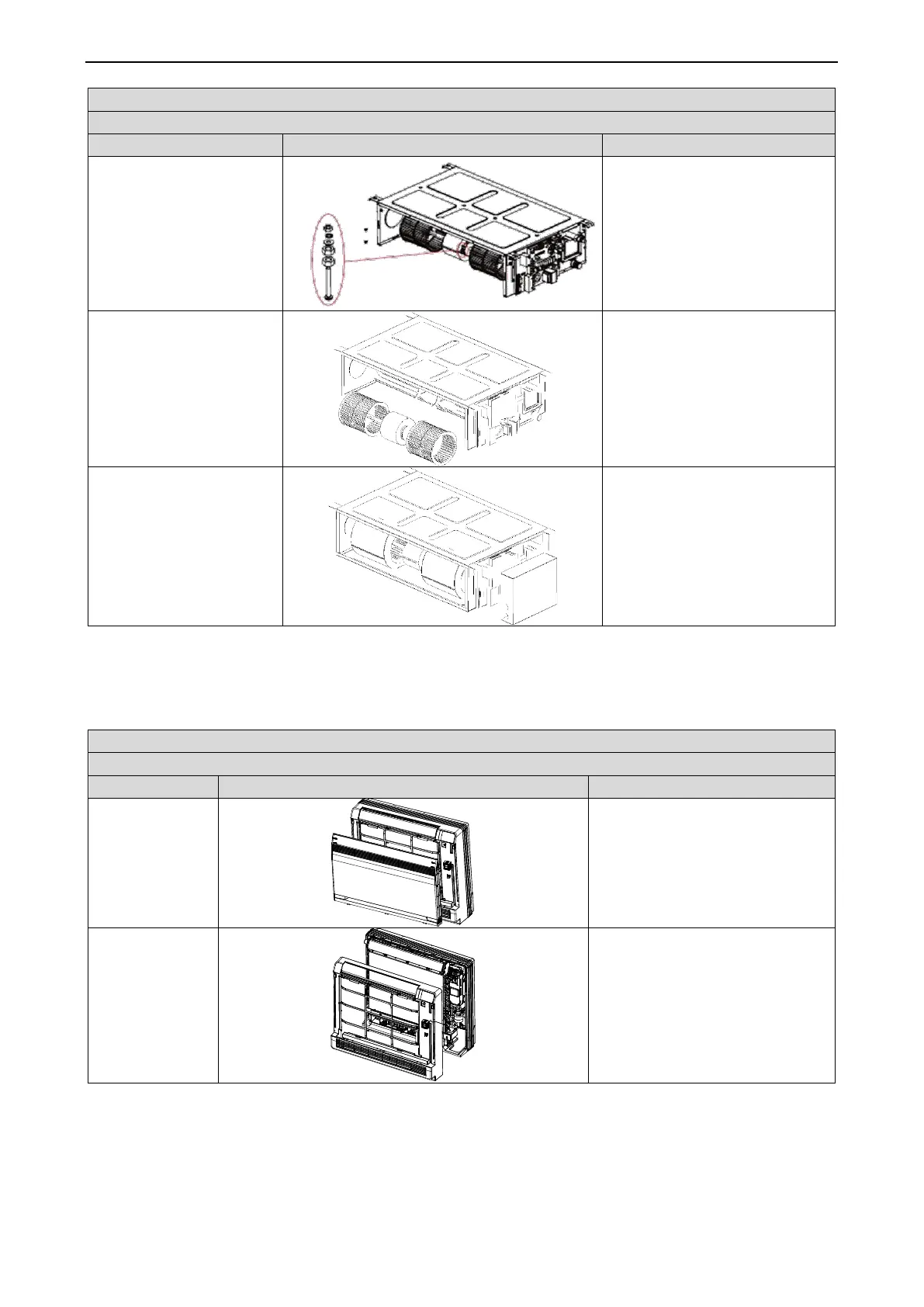

4. Remove the louver and
motor.
●Use a screwdriver to unscrew the
louver and loosen the fasteners of
the motor.
5. Install a new motor.
●Remove the motor from the
support and remove the louver
from the motor. Then, remove the
motor.
●Install a new motor.
6. Install units in a reverse
order of this procedure.
●Assemble units based on the
reverse order of this procedure
and power on the units for test.
4.11 Console Type Indoor Unit
Note:
The following steps are specific for GMV-ND22C/A-T units. For other units, the assembly and
disassembly procedure is similar except the numbers of louvers and motors.
Removal of Fan Motor
Remark: before removing, making sure power is disconnected.
Step
Diagram
Operation Procedure
1. Open the panel
●Press clasps at both sides to
“OPEN” position.
2. Remove filter
and front case
●Remove 5 screws fixing the front
case.
