GREE GMV5 INDOOR UNIT SERVICE MANUAL
243
5.11 Air Handler type Indoor Unit

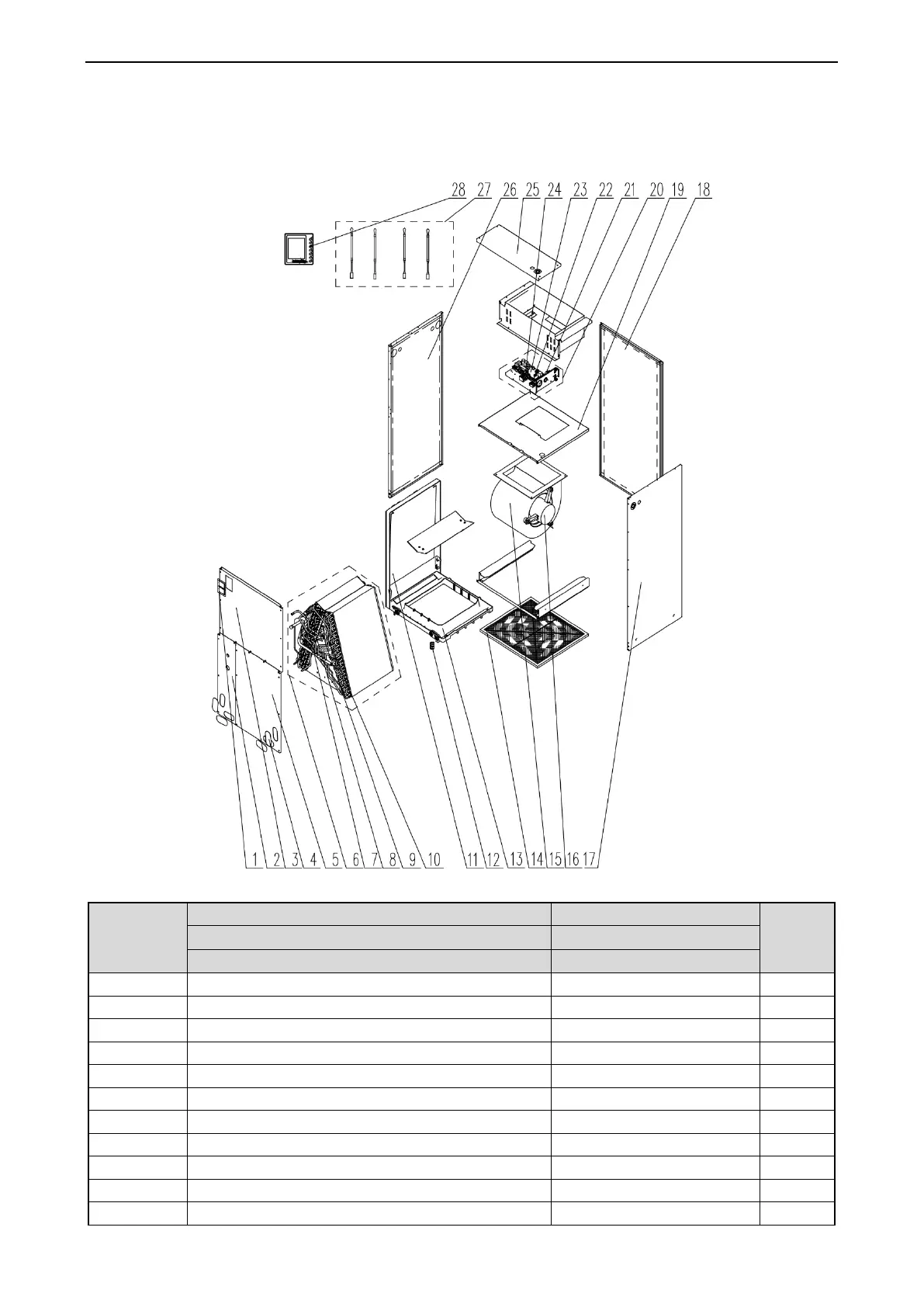

Exploded View of GMV-NR71A/A-D, GMV-NR90A/A-D, GMV-NR100A/A-D, GMV-NR112A/A-D,
GMV-NR140A/A-D:
GMV-NR140A/A-D
NO.
Model
GMV-NX224P/A(X2.0)-M
Qty.
Product Code
CM800N3620
Part Name
Part Code
1
insulating board
75142201
1
2
Lower cover plate 1
01264100065
1
3
Top Cover Board Sub-assy
01262200024
1
4
Plastic Cover
26902209
4
5
Lower cover plate sub-assy 2
01262200026
1
6
Evaporator Assy
01024100159
1
7
Current Divider
0722443501
1
8
Strainer
0721200101
2
9
Electronic Expansion Valve
07334468
1
10
Electric Expand Valve Fitting
4304413205
1
11
Secondary Water Tray
26902207
1
