Gree GMV-N22G/A3A-K

GREE GMV5 INDOOR UNIT SERVICE MANUAL
203
5.4 4-way Cassette Type

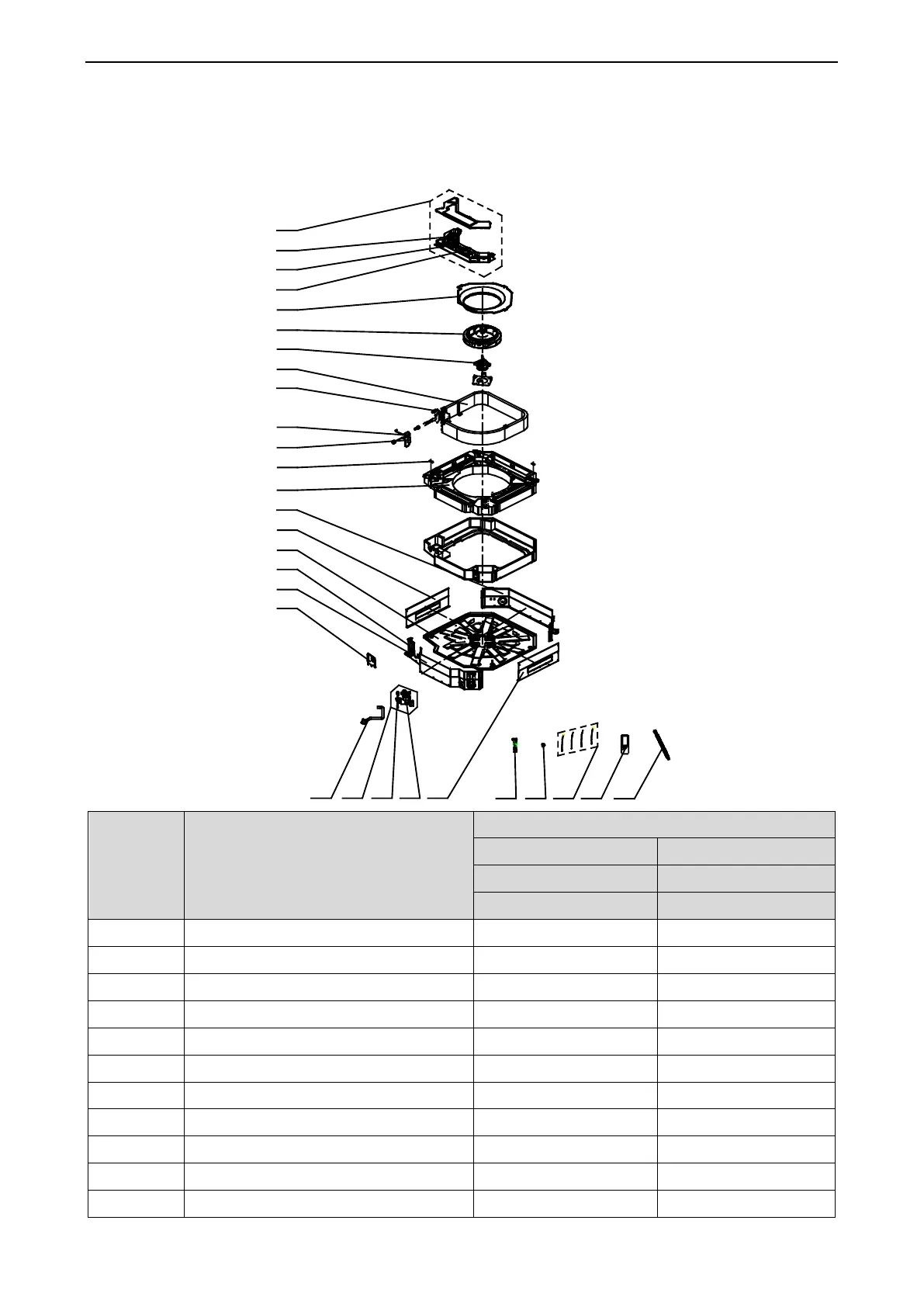

Exploded View of GMV-ND28T/A-T, GMV-ND36T/A-T, GMV-ND45T/A-T, GMV-ND50T/A-T, GMV-
ND56T/A-T, GMV-ND63T/A-T, GMV-ND71T/A-T, GMV-ND80T/A-T:
1
2
3
4
5
6
7
8
9
14
15
16
17
18
19
13
10
11
12
20 21 22 23 24
25 26 27 28
29
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND28T/A-T
CM500N0380
Part code
Quantity
1
Electric Box Assy
01394100209
1
2
Terminal Board
42200000001501
1
3
Terminal Board
4201800002601
4
4
Main Board
30226000029
1
5
Diversion Circle
10372701
1
6
Centrifugal Fan
10312721
1
7
Brushless DC Motor
1570410000703
1
8
Evaporator Assy
01024100118
1
9
Strainer
07415200002
1
10
Electronic Expansion Valve
07334463
0
11
Strainer
07414100006
1
