4.4 4-way Cassette Type
Motor and fan

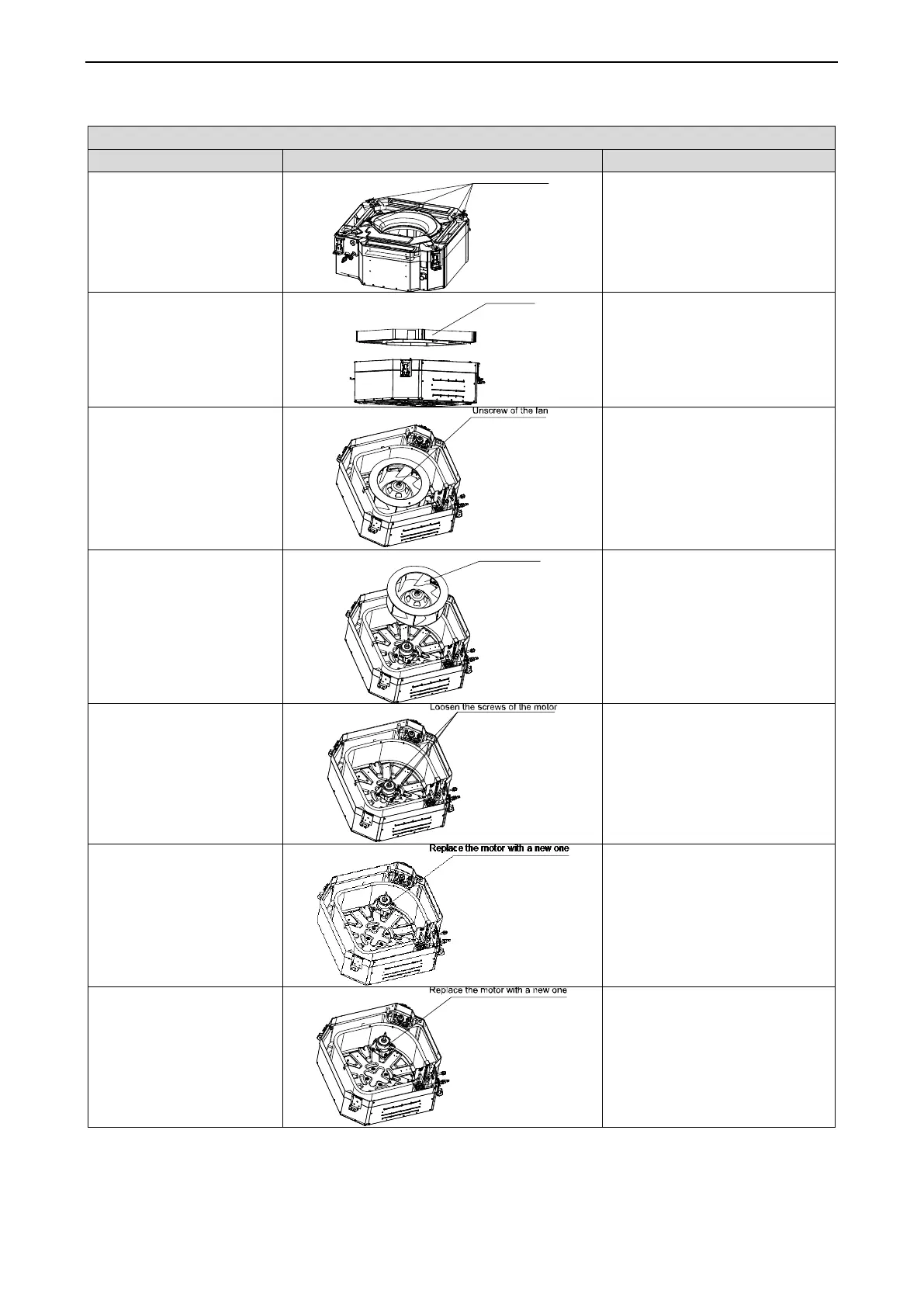

Step
Diagram
Operation Procedure
1. Unscrew the water tray.
●Use a screwdriver to unscrew the
water tray.
2. Remove the water tray.
●Remove the water tray.
3. Unscrew the centrifugal
fan.
●Use a wrench to unscrew the
centrifugal fan.
4. Remove the centrifugal
fan.
●Remove the centrifugal fan.
5. Unscrew the motor.
●Use a screwdriver to unscrew the
motor.
6. Replace the motor with a
new one.
●Replace the motor with a new
one.
7. Screw the motor.
●Use a screwdriver to screw the
motor.
Loosen the screws
Water tray
Centrifugal fan
