GREE GMV5 INDOOR UNIT SERVICE MANUAL
213
5.6 2-way Cassette Type

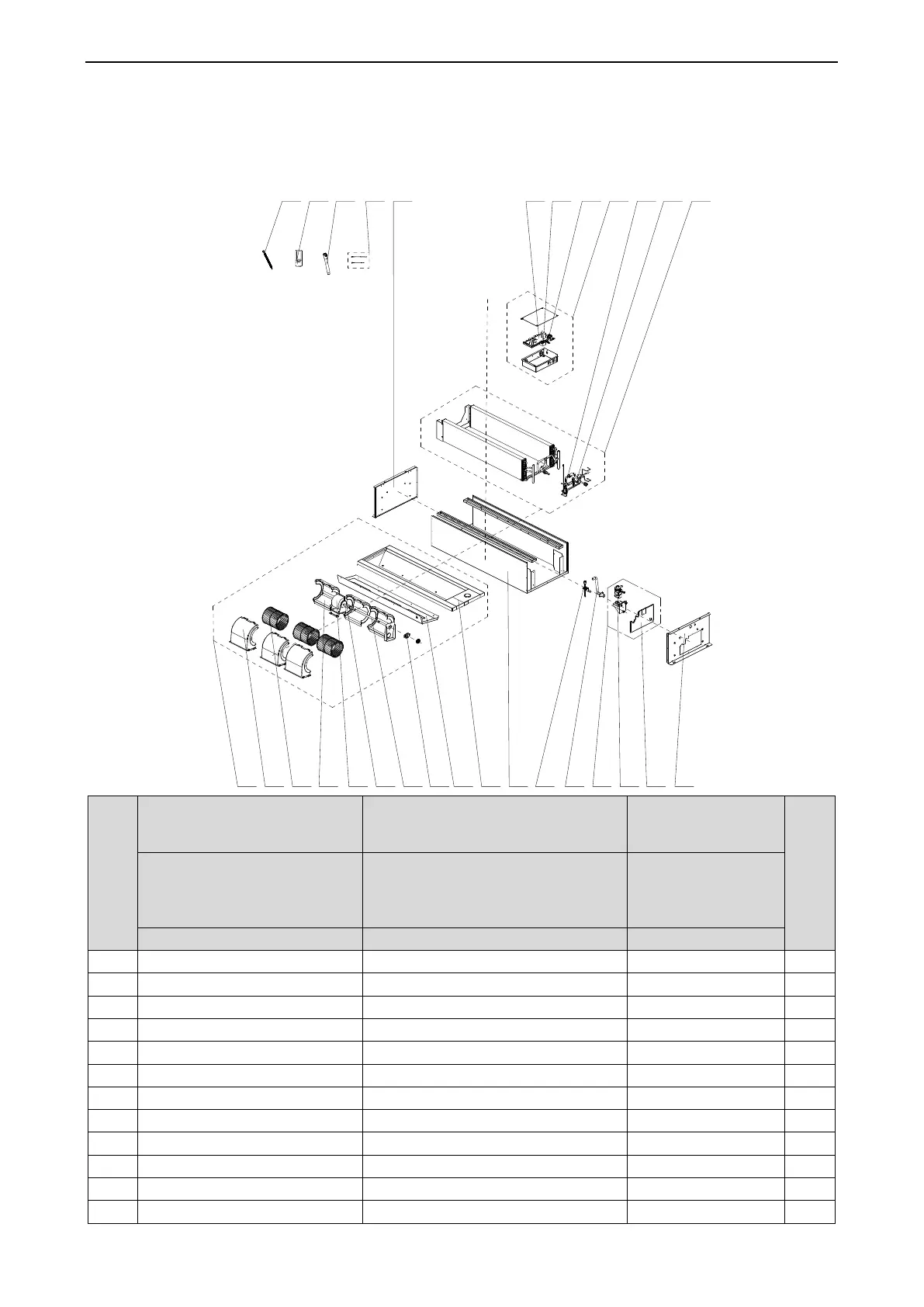

Exploded View of GMV-ND28TS/A-T, GMV-ND36TS/A-T, GMV-ND45TS/A-T, GMV-ND50TS/A-T,
GMV-ND56TS/A-T, GMV-ND63TS/A-T, GMV-ND71TS/A-T:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
29 28 27 26 25 24 23 22 21 20 19 18
NO
Model
GMV-ND28TS/A-T, GMV-ND36TS/A-T,
GMV-ND45TS/A-T, GMV-ND50TS/A-T
GMV-ND56TS/A-T
GMV-ND63TS/A-T
GMV-ND71TS/A-T
Qty
Product Code
CM500N0680
CM500N0690
CM500N0700
CM500N0710
CM500N0720
CM500N0730
CM500N0740
Part Name
Part Code
Part Code
1
Centrifugal Fan Assy
15404100048
15404100048
1
2
Front Volute Casing
22202030
22202030
3
3
Centrifugal Fan
10319051
10319051
3
4
Rear Volute Casing
22202029
22202029
3
7
Fan Motor
15704100003
15704100003
1
8
Joint Slack
73018731
73018731
1
9
Rotary Axis Sub-Assy
73018000075
73018000075
1
10
Support Of Motor Bearing
02285200001
02285200001
1
11
Bearing Holder
26151138
26151138
1
12
Water Tray Sub-Assy
01284100137P
01284100137P
1
13
Water Tray Sub-Assy2
01284100134P
01284100134P
1
14
Base Plate
02224100024
02224100024
1
