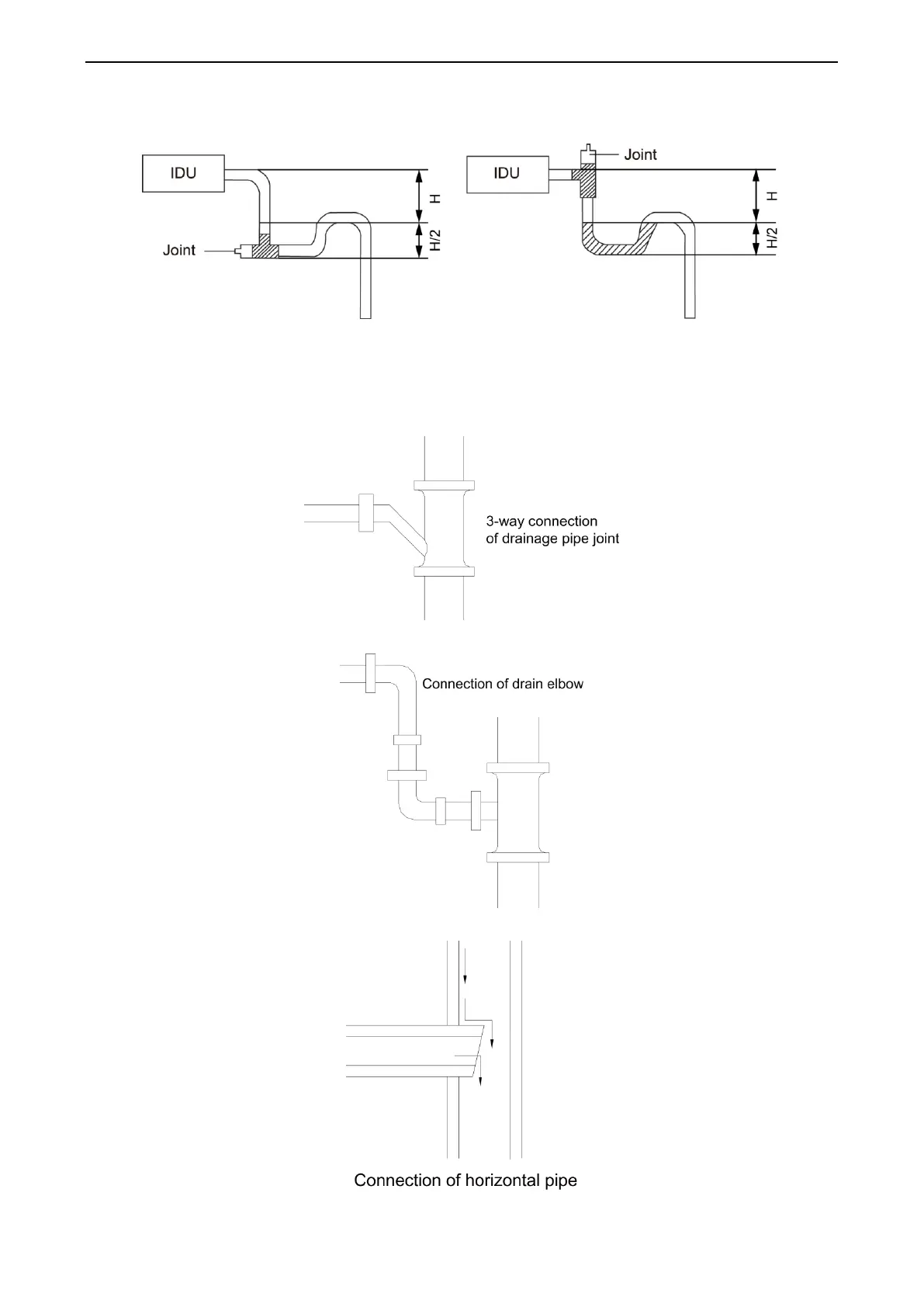

Install one water trap for each unit
◆
Installation of water trap shall consider easy cleaning in the future.
◆
Connection of drainage branch pipe to the standpipe or horizontal pipe of drainage main pipe
◆
The horizontal pipe cannot be connected to the vertical pipe at a same height. It can be
connected in a manner as shown below:
NO.1: 3-way connection of drainage pipe joint
NO.2: Connection of drain elbow
NO.3: Connection of horizontal pipe
