Motor and fan
Step
Diagram
Operation Procedure

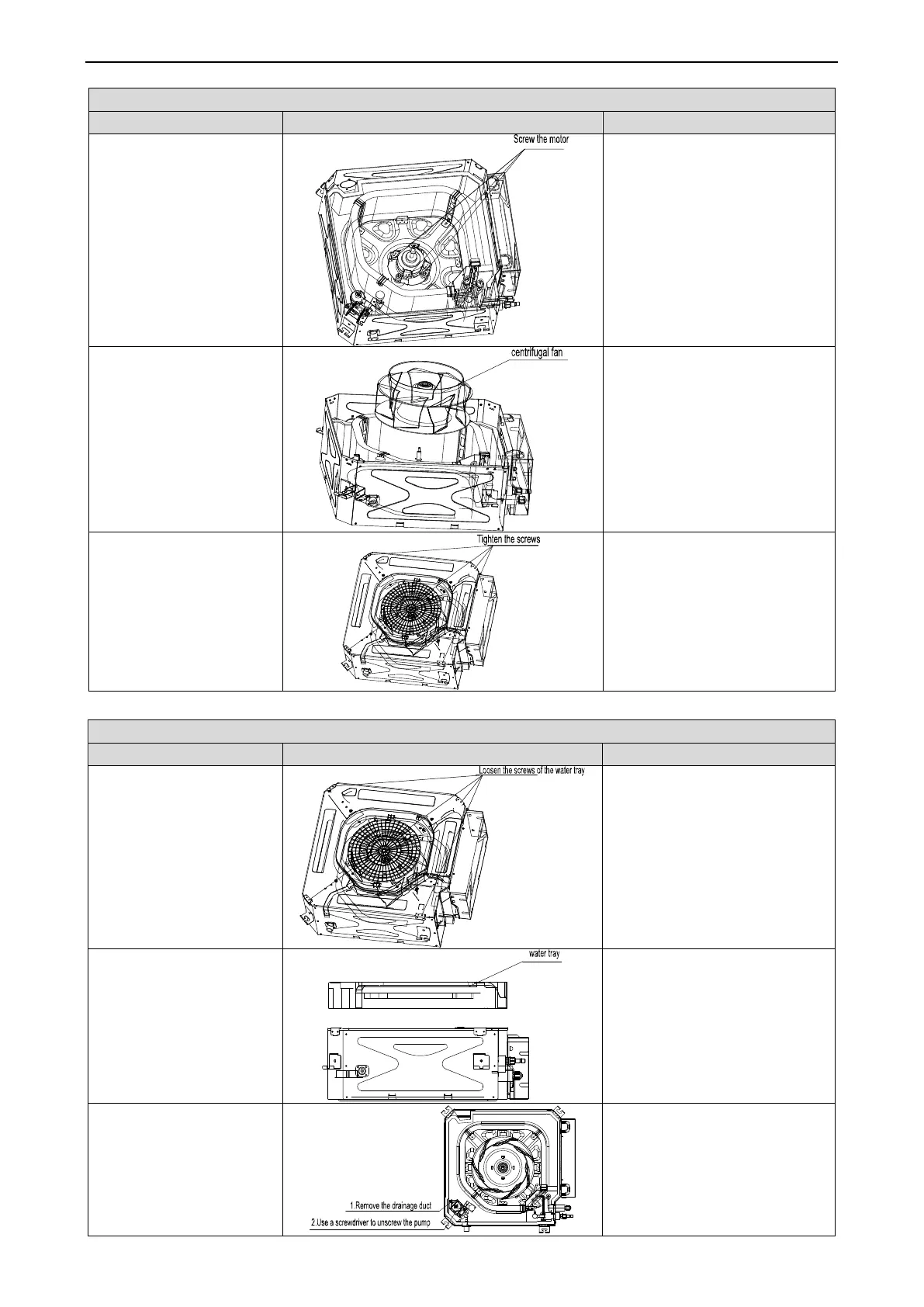

7. Screw the motor.
●Use a screwdriver to screw the
motor.
8. Install and screw the
centrifugal fan.
●Install the centrifugal fan and use
a wrench to screw the centrifugal
fan.
9. Install and screw the
water tray.
●Use a screwdriver to screw the
water tray
Pump
Step
Diagram
Operation Procedure
1. Unscrew the water tray.
●Use a screwdriver to unscrew the
water tray.
2. Remove the water tray.
●Replace the water tray.
3. Remove the drainage
duct and unscrew the pump.
3. Remove the drainage duct and
use a screwdriver to unscrew the
pump.
