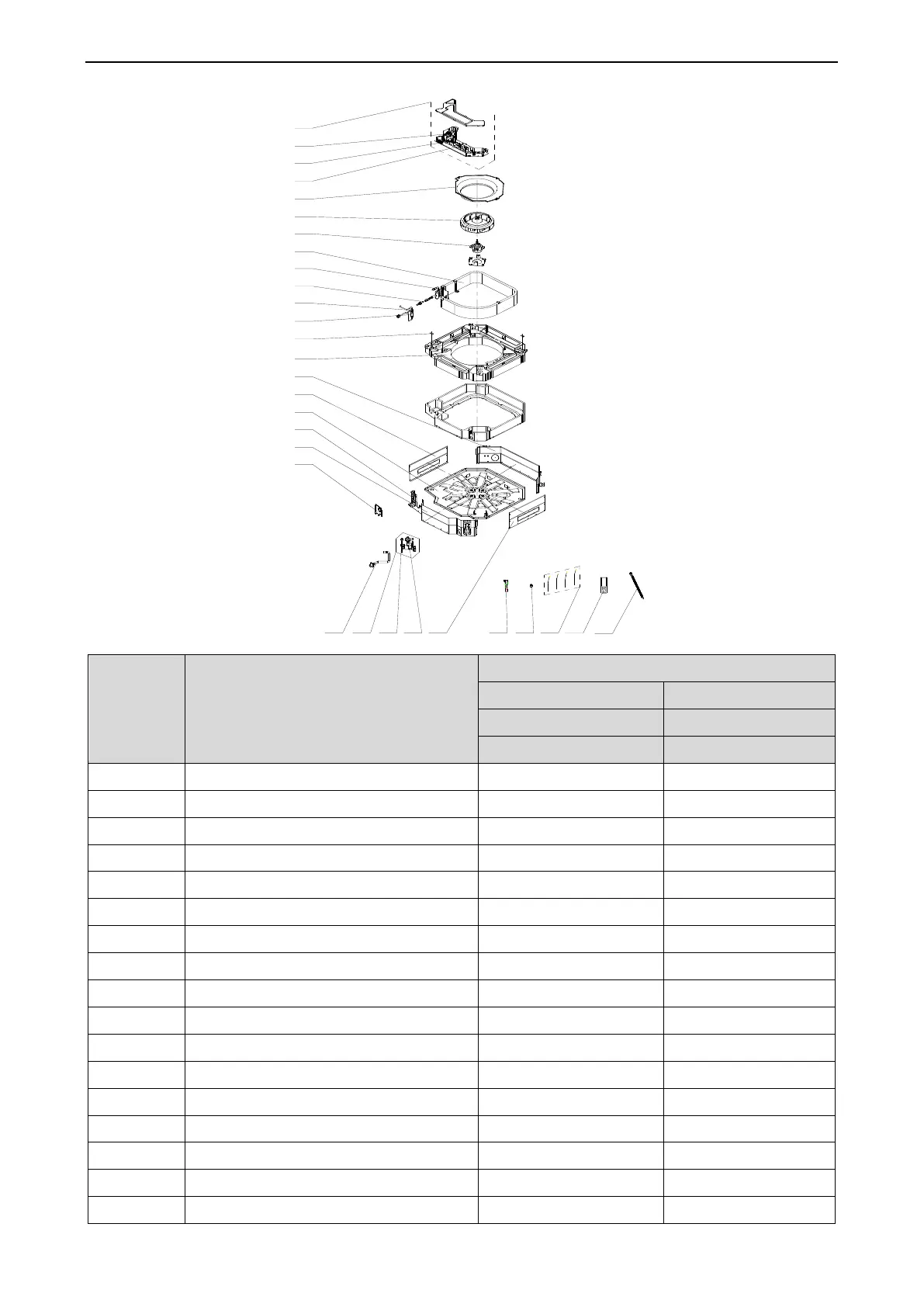

GREE GMV5 INDOOR UNIT SERVICE MANUAL
205
1
2
3
4
5
6
7
8
9
15
16
17
18
19
20
14
10
11
12
13
21 22 23 24 25
26 27 28
29
30
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND36T/A-T
CM500N0390
Part code
Quantity
1
Electric Box Assy
01394100209
1
2
Terminal Board
42200000001501
1
3
Terminal Board
4201800002601
4
4
Main Board
30226000029
1
5
Diversion Circle
10372701
1
6
Centrifugal Fan
10312721
1
7
Brushless DC Motor
1570410000703
1
8
Evaporator Assy
01024100113
1
9
Strainer
07415200002
1
10
Filter Sub-Assy
11128633
1
11
Electronic Expansion Valve
07334463
1
12
Strainer
07414100006
1
13
Hook
02112721
1
14
Water Tray Assy
01289400013
1
15
Rear Side Plate
01302732
1
16
Left Side Plate
01302733
1
17
Base Plate Assy
01222701
1
