Gree GMV-N22G/A3A-K

GREE GMV5 INDOOR UNIT SERVICE MANUAL
231

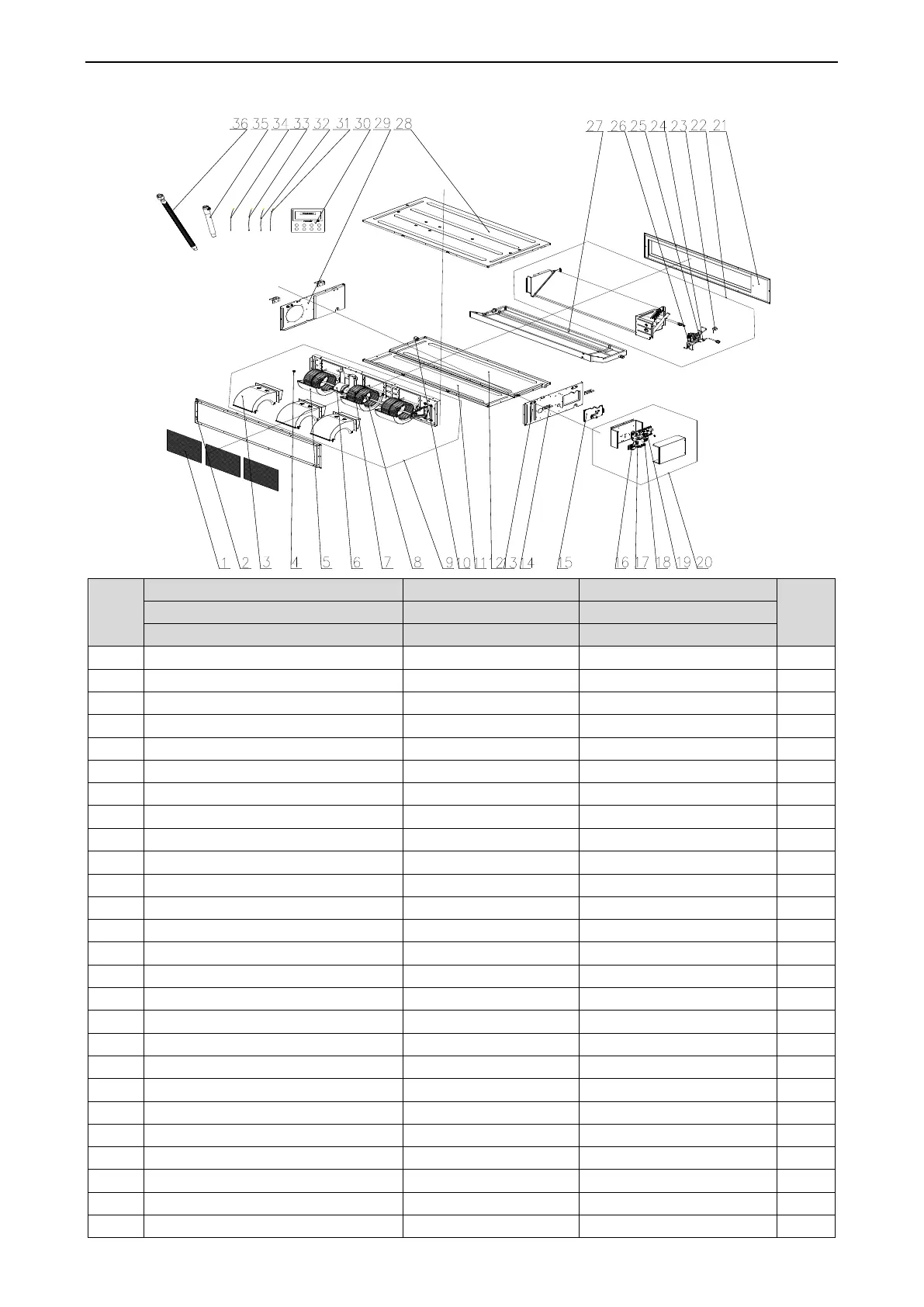

Exploded View of GMV-NDX125P/A-T, GMV-NDX140P/A-T
NO.
Model
GMV-NDX125P/A-T
GMV-NDX140P/A-T
Qty.
Product Code
CM810N1220
CM810N1020
Part Name
Part Code
Part Code
1
Filter Sub-Assy
111001000052
111001000052
3
2
Return Air Frame Sub-Assy
017026000003
017026000003
1
3
Propeller Housing(Upper)
26905200078
26905200078
3
4
Fan Bearing
76512210
76512210
1
5
Propeller Housing(Lower)
26905200079
26905200079
3
6
Brushless DC Motor
1570940000601
1570940000601
1
7
Centrifugal Fan
10455200003
10455200003
3
8
Joint Slack
73018731
73018731
1
9
Centrifugal Fan Assy
000052000028
000052000028
1
10
Choke plug of Drain pipe
76815214
76815214
2
11
Cover plate (Air Ruturn)
01265200123
01265200123
1
12
Bottom Cover Plate
01265200125
01265200125
1
13
Left Side Plate Assy
01315200147
01315200147
1
14
Hook
02112466
02112466
4
15
Seal Plate
01495200043
01495200043
1
16
Reactor
43138000047
43138000047
1
17
Terminal Board
4201115404
4201115404
1
18
Terminal Board
4201800002601
4201800002601
1
19
Main Board
300002000686
300002000686
2
20
Electric Box Assy
100002003006
100002003006
1
21
Air Outlet Frame Assy
01375200023
01375200023
1
22
Evaporator Assy
011001000471
011001000471
1
23
Electic Expand Valve Fitting
4304413215
4304413215
1
24
Strainer
0741410000601
0741410000601
1
25
Electronic Expansion Valve
07334468
07334468
1
26
Strainer
7415210
7415210
1
