GREE GMV5 INDOOR UNIT SERVICE MANUAL
91
Item
Model
W
H
D
GMV-ND100L/A-T
GMV-ND140L/A-T
580
1870
400

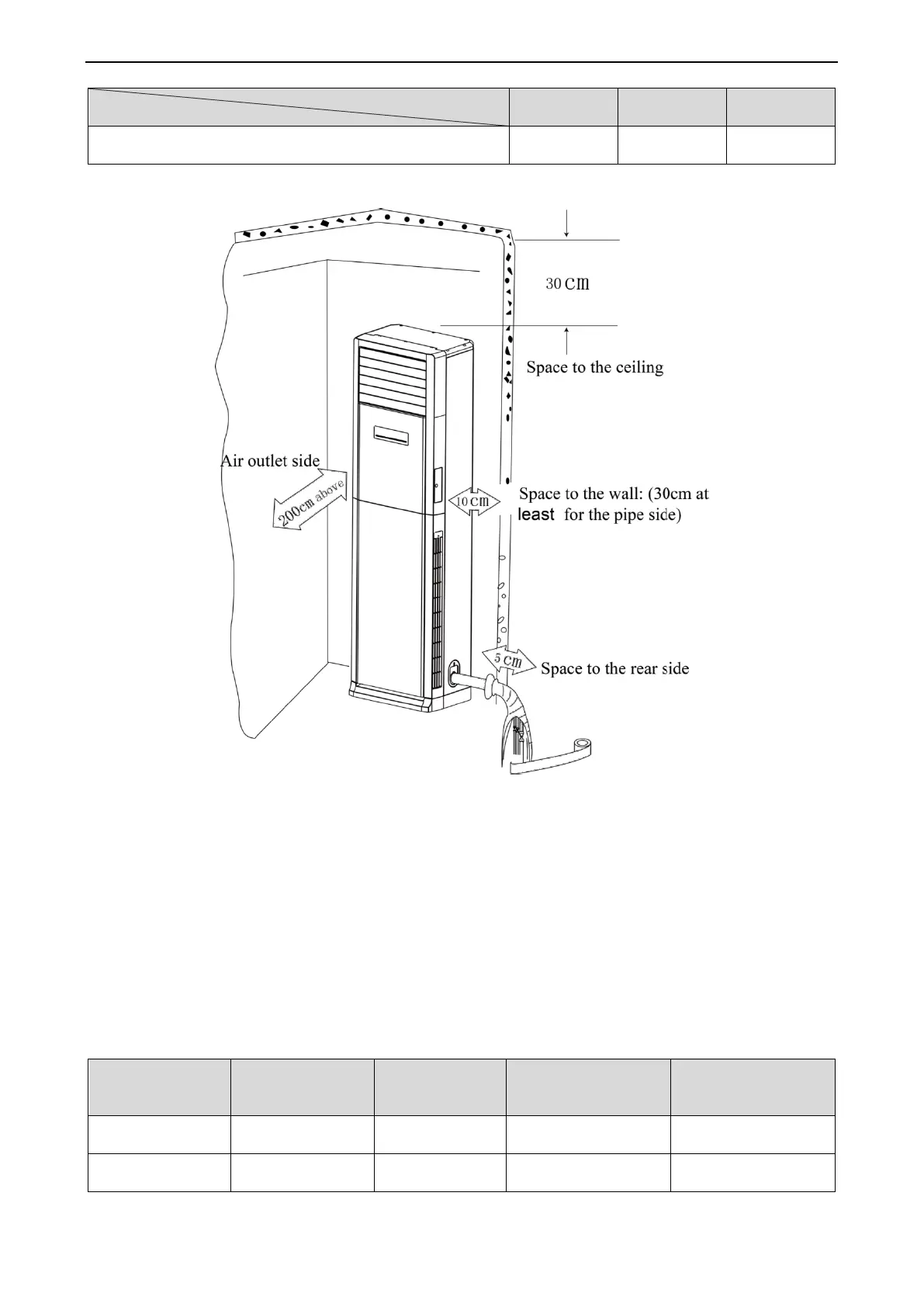

3.1.2 Installation space
3.1.3 Installation notice
◆
The unit shall be installed by the professional personnel according to this installation
instruction to ensure proper use.
◆
Please contact the local Gree appointed service center before installation. Any
malfunctioncaused by the unit that is not installed by the Gree appointed service center would
probably not be dealt with on time because of the inconvenience of the business contact.
◆
It should be guided under the professional personnel when the air conditioner unit is moved to
other place.
3.1.4 Selection of air switch and power cord
Model
Power Cord Size
Air Switch apacity
(A)
Minimum Sectional Area
of Ground Wire
(mm
2
/AWG)
Minimum Sectional Area
of Power Cord
(mm
2
/AWG)
GMV-ND100L/A-T
220V~240V/50HZ
208V/230V/60HZ
6
1.0/AWG18
1.0/AWG18
GMV-ND140L/A-T
220V~240V/50HZ
208V/230V/60HZ
6
1.0/AWG18
1.0/AWG18
